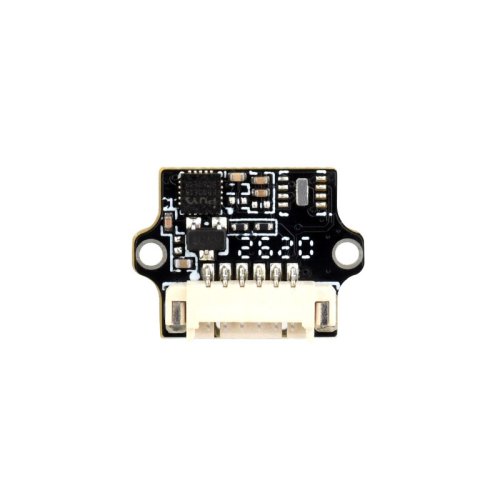

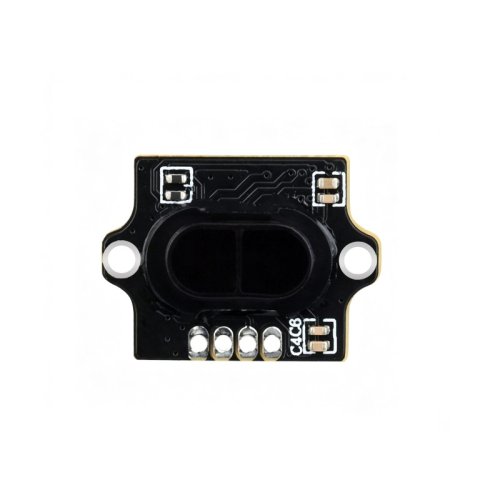

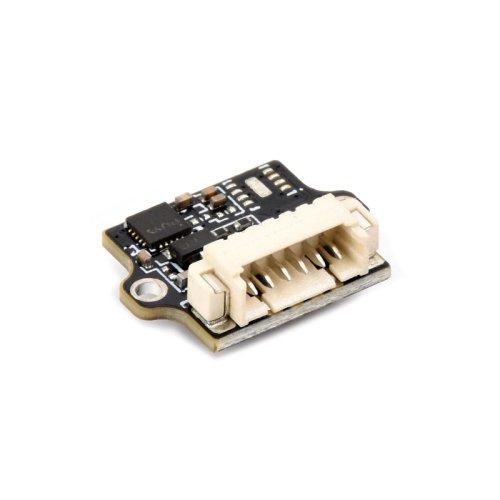

TOF MINI Laser Range Sensor:

long range | Short Blind Zone | stable/accurate/sensitive

Product overview

The TOF MINI Range Sensor is a laser ranging sensor based on Time-of-Flight (TOF) technology. Built-in controller and ranging algorithm, providing a measurement range of up to 4m with an accuracy within ± (1% ~ 3%). Supports UART communication. Suitable for indoor environments, with ambient light resistance of up to approximately 20K Lux, enabling applications such as distance measurement, robotic obstacle avoidance, path planning, ceiling detection, and material level measurement.

Specifications:

• Module : TOF MINI Range Sensor
• Typical measuring rang : 0.02m ~ 4m
• Typical measuring accuracy : ± (1% ~ 3%)
• Field of view (FOV) : 25° ~ 30°
• Refresh rate : 30Hz (Supports bulk customization for higher frequency, up to 90Hz)
• Ambient light tolerance : 20K Lux
• Operating temperature : -20°C ~ +70°C
• Operating humidity : 35% ~ 80%RH
• Laser Safety Class : LASER CLASS 1 (IEC 60825-1: 2014)
• Wavelength : 940nm
• Communication interface : UART
• Baud rate : 115200
• Data Bits : 8
• Stop Bits : 1
• Parity : NONE
• Power supply : 4V ~ 5.6V
• Power consumption : 100mW ~ 140mW
• Average/Peak Current : 25mA/26mA
• Weight : 3g
• Case Material : PC
• Storage temperature : -40℃ ~+80℃
• Dimensions (L × W × H) : 17.37 × 13.00 × 6.88 (mm)

Cost effective solution:

long-range low-cost ranging module with a measurement range of 0.02m ~ 4m,

high stability, high accuracy, high sensitivity ranging

Applications:

Hardware connection

connecting with Raspberry Pi board

Outline Dimensions:

Resources & Services:

Documentations:

• Wiki

Package Inlcudes:

• 1 x TOF MINI Range Sensor
• 1 x MX1.25 4PIN cable 100mm
