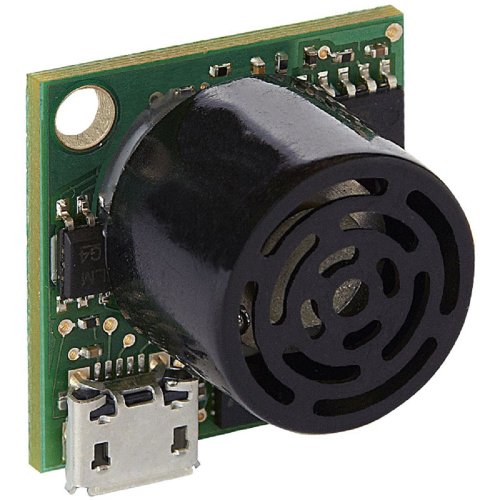

The USB-ProxSonar-EZ provides proximity detection of objects out to a set distance, in a small and incredibly easy to use package. The USB-ProxSonar-EZ is the lowest cost USB ultrasonic sensor that features a simultaneous multi-sensor design which allows the sensor to operate even in the presence of other ultrasonic sensors
The USB‑ProxSonar‑EZ1 has a detection zone of ~5 feet and will allow for 8+ simultaneous sensors.
Features
- USB interface
- ~2.5 second target acquire time*
- ~1.5 second target release time*
- Automatic multi-sensor operation
- People sensor
- Resolution of 1 inch
- Maximum Range of 125 inches (318 cm)
- Detection zone range of 60 inches (152 cm)
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS compliant
- Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
- Small, light weight module
- Designed for easy integration into your project or product
- Longest range detection zone
Ultrasonic Sensors MB1414
- Brand: Maxbotix
- Product Code:MaxBotix-Ultrasonic-Sensor-MB1414-Maxbotix
- Reward Points:41
- Availability:Order now and get it in 15 days
- रo 4,859.24
-
रo 4,324.70
- Ex Tax:रo 3,665.00
- Price in reward points:4118
-
- 4 or more रo 4,820.30
- 7 or more रo 4,781.36
- 20 or more रo 4,742.42
- 35 or more रo 4,703.48
