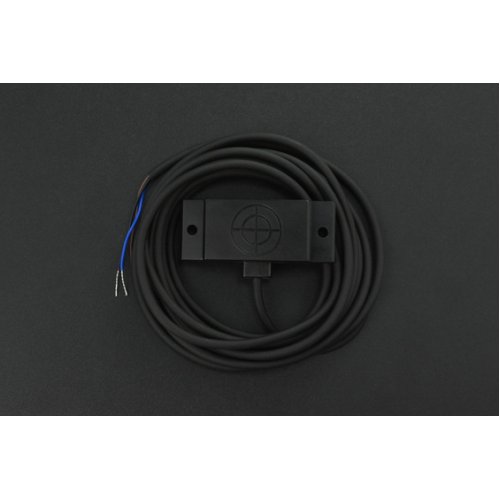

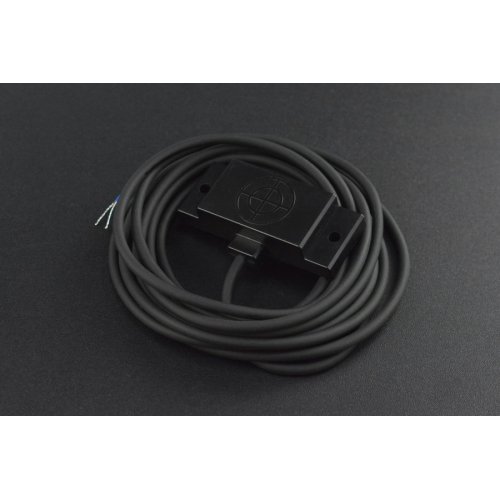

Unlike the inductive proximity switch that can only detect metals, the capacitive proximity sensors can be used to detect all non-metallic objects with static electricity besides metal objects.

With a power supply range of 10~30V, this capacitive proximity sensor features an adjustable detection range from 1~10mm and an indicator for feeding back device status in real-time. Fully enclosed by a PBT plastic shell, the sensor meets IP67 waterproof and dustproof rating, which can be applied to both outdoor and indoor projects. In addition, it has small temperature drift and high detection accuracy and can be used in scenes such as mechanical automation, security equipment, and object detection.

Specifications:

• Power Supply Range: DC10-30V
• Detection Distance: 1-10MM, adjustable (up to 20mm for metal, 10mm for non-metal)
• Induction Type: Capacitive
• Output Mode: PNP normally open (high-level output)
• Connection Mode: Brown line-positive pole, Blue line-negative pole, Black line-output line
• Switching Frequency: 50Hz
• Response Time: ＜1.5ms
• Switch Hysteresis: ＜15%
• Repeatability: ＜5.0%
• Protection Mechanism: short circuit protection, overload protection, reverse polarity protection
• Temperature Resistance Range: high temperature 70°C, low temperature -25°C
• Protection Level: IP67
• Size: 50x20x10mm / 1.97x0.79x0.39 inch

Warranty: 90 days

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

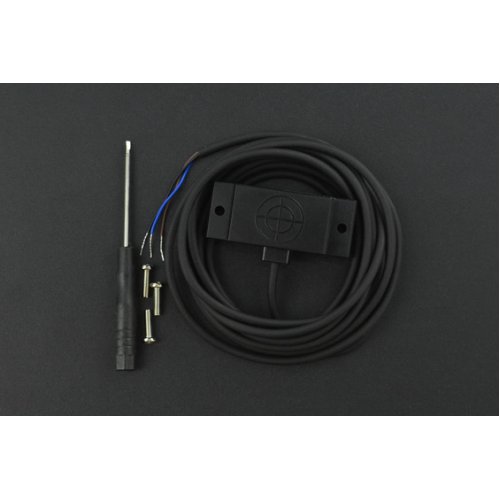

Package Includes:

• 1 x Capacitive Proximity Sensor
• 1 x Screwdriver
