With XactFSR, you can now create your own custom ShuntMode sensors.
Simply lay out a PCB with interdigitating fingers where sensing areas are desired, then cut XactFSR to fit. Build force-sensing elements directly onto your PCBs!
Response can be adjusted via layout - finer space/trace will yield a more sensitive FSR.

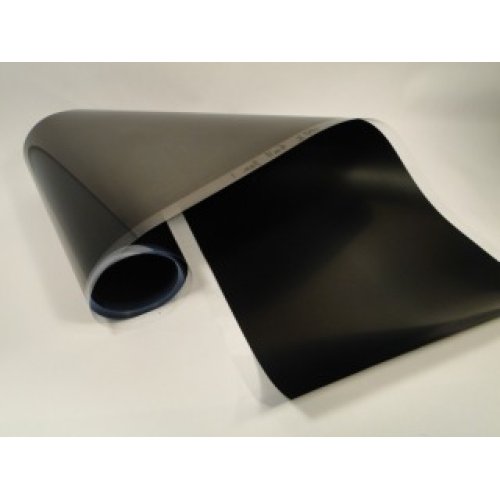

Sample is 11.5” print width on 13” wide 5mil Mylar.
Documents:
- XactFSR Application Note - Tips and Tricks for Implementing XactFSR
- XactFSR Product Flyer - Product Introduction and Basic Data
Package Includes:
- 1 x XactFSR
XactFSR
- Brand: Sensitronics
- Product Code:SEN-XactFSR
- Reward Points:155
- Availability:In Stock
-
रo 18,173.18
- Ex Tax:रo 15,401.00
- Price in reward points:15525
-
- 2 or more रo 18,026.86
- 5 or more रo 17,879.36
- 10 or more रo 17,733.04
