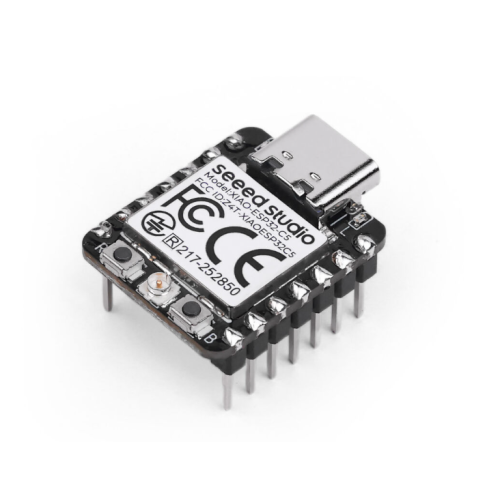

Seeed Studio XIAO ESP32-C5 — the first XIAO module with 5 GHz Wi-Fi support, marking a new milestone in the XIAO family.

Built on the RISC-V architecture, it brings together 2.4 GHz and 5 GHz dual-band Wi-Fi 6, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee, Thread) connectivity, while offering full support for IoT application protocols including Matter, HomeKit, and MQTT. With this versatile combination, your projects gain smoother, faster, and more reliable wireless performancer.

Features:

• First Seeed Studio XIAO with 5 GHz Wi‑Fi

Provides dual‑band Wi‑Fi 6 for cleaner spectrum access and higher throughput in 5 GHz, while maintaining 2.4 GHz compatibility.

• Comprehensive connectivity

Dual‑band Wi‑Fi 6, Bluetooth 5 LE, and IEEE 802.15.4 provide comprehensive IoT protocol coverage, with full support for Matter, HomeKit, and MQTT.

• High‑performance core

Equipped with a 32‑bit RISC‑V single‑core processor running up to 240 MHz, the XIAO ESP32‑C5 integrates 384 KB on‑chip SRAM, 320 KB ROM, 8MB Flash, and 8MB PSRAM. This combination ensures smooth protocol handling, multitasking, and application scalability.

• Enhanced security

Secure boot, flash encryption, and hardware cryptographic accelerators to protect firmware and data integrity.

• Built‑in Battery Interface for Low‑Power Designs

Integrated battery management supporting ultra‑low‑power operation, with deep‑sleep current as low as 15 µA.

Unlock the Full Potential of XIAO with Add-ons

The XIAO series is powerful on its own, but it becomes unstoppable when paired with our diverse lineup of Add-on boards. Designed to bridge the gap between a raw microcontroller and a finished project, these add-ons cater to every need: from XIAO Expansion Board—which adds an OLED screen, RTC, and battery management—to specialized functional modules like Wi-Fi HaLow and LoRa (SX1262) for long-range connectivity, LED Driver Board/COB LED Driver Board for lighting applications, or ePaper Driver Boards compatible with various display sizes for ultra-low power visual interfaces. Dive into our extensive modules to discover even more ways to expand your XIAO.

We already have over 15 XIAO products based on different solutions in the XIAO family, to help you better understand the differences and choose the most suitable part for your projects, please refer to the Seeed Studio XIAO Series Page.

Starter Kit with free Course for all Electronics Neophytes and Enthusiasts

Seeed Studio has provided the Grove Starter Kit along with free and detailed courses for you quickly get started with microcontrollers and electronics, regarding all the Seeed Studio XIAO boards, promising you a great learning experience.

Not only programming but also electronics knowledge is not required, you will be taken step by step, from understanding the basic concepts to exercising the simple projects individually, finally being able to build complex, interesting, wearable projects on your own, owing a practical electronic product prototype from the course.

Ready to elevate your project building experience? The XIAO Debug Mate is an essential all-in-one tool. It acts as a complete command center for your projects, combining SWD debugging, serial monitoring, and micro-amp (µA) power measurement into a single device—empowering you to debug code and optimize energy efficiency for battery-powered projects simultaneously.

Production-Ready Design with Fusion PCBA Support

All Seeed Studio XIAO dev boards feature a production-optimized SMD (Surface Mount Device) design with standardized stamp holes, making it perfect for commercial PCBA (Printed Circuit Board Assembly) integration. Through our Fusion PCBA Sponsorship program, you can not only enjoy the lowest unit prices for all XIAO modules from our Fusion Open Parts Library, but also fabricate and scale your XIAO-based PCBA designs at low cost (30% off) with FREE Design for Manufacturing consulting services, streamlining your journey from prototype to production.

Specifications:

• Product                                 :   XIAO ESP32-C5
• Chipest                                  :    ESP32-C5HR8
• Processor                              :   High-performance 32-bit RISC-V single-core microprocessor, up to 240MHz and a low-power 32-bit RISC-V core at up to 48MHz (according to Datasheet, up to 20MHz p.69 of                                                                        Technical  Reference Manual v0.2)
• SRAM                                   :   384KB
• RSRAM                                :   8MB
• Flash                                     :   8MB
• Interface                               :  11x GPIO Pin

                                                          :  1x Analog Pin + 4x Analog Pad on the reverse side

                                                          :  1x I2C

                                                          :  1x UART

                                                          :  1x SPI

                                                          :  1 x JTAG (Pads on the reverse side)

• On Board                              :  1x User LED (Green)

                                                          :  1x Charge LED (Battery Charging Indicator)

                                                          :  1x Reset Button

                                                          :  1x Boot Button

                                                           :  1x UFL Connector

• Antenna                                 :  2.4GHz FPC (2.9dBi) (same as used on XIAO ESP32-C3)

                                                           :   Optional: 2.4GHz Rod Antenna (2.81dBi)

• Wireless Connectivity          :   2.4 and 5 GHz dual-band Wi-Fi 6 (802.11ax)

                                                          :  Bluetooth® 5 (LE)

                                                          :  Zigbee

                                                          :  Thread (802.15.4)

• Power Input                         : Type-C: 5V/DC

                                                         :   Battery: 3.7V

• Deep Sleep                           :  USB Power Supply: 375 µA

         (Low Power Firmware)          :  Battery Power (BAT): 15 µA

• Working Temperature       :  0°C ~85°C

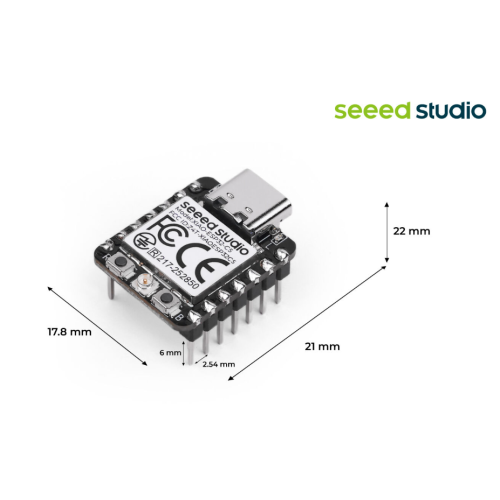

• Dimensions                          :  21 x 17.8mm

Hardware Overview:

Applications:

• Smart Sensor Node
• IoT Gateway
• BLE Tracker
• Wi-Fi Button
• Secure Edge Device
• Home Automation Device

Documentations:

• XIAO ESP32-C5 introduce by Leon Anavi
• [Blog] First Look at the Seeed Studio XIAO ESP32-C5 by Michel Deslierres
• [Others] The BEST XIAO Board Ever!! | XIAO ESP32 C5 | by techiesms
• [Wiki] XIAO ESP32-C5 wiki
• [Blog] Meet XIAO ESP32-C5: The First XIAO Dev Board with Dual-Band Wi-Fi 6
• [Project] Dual-Band Wi-Fi Analyzer

• HSCODE : 8543709990
• USHSCODE : 8517180050
• UPC
• EUHSCODE : 8543709099
• COO         : CHINA

Package Includes:

• 1x XIAO ESP32-C5
• 1x FPC Antenna
