Features:
- Highly Integrated Multi-mode Satellite Positioning: Multi-mode satellite positioning & navigation and support more than 6 satellites at the same time
- High precision Positioning: Positioning error within 10 meters,and the position still quickly and accurately under the condition of bad signal
- The Integrated Design of RF Baseband: Adopt the integrated design of RF baseband, which integrates DC/DC, LDO, LNA, RF front-end, baseband processing, 32-bit RISC based chip, RAM, FLASH storage, RTC, and power management functions
- Low Power Consumption: Low power consumption at only 31uA
- High Compatibility: Compatible hard/soft interface for other modules
Specifications:
Confused about your GPS not working well in urban or outsides under only one or a few satellite module? Then you should not miss our new SeeedGrove-GPS (Air530Z). It’s a high-performance, highly integrated multi-mode satellite positioning and navigation module to use with Arduino. It supports GPS / Beidou / Glonass / Galileo / QZSS / SBAS, which makes it suitable for GNSS positioning applications such as car navigation, smart wear, and drone. Meanwhile, this module is capable of receiving more than 6 satellites at the same time and is able to work excellently even if there's a very bad signal.
SeeedGrove – GPS Module vs SeeedGrove – GPS (Air530Z)
Specs SeeedGrove – GPS Module SeeedGrove – GPS (Air530Z)
Size 40mm x 20mm x 13mm 40mm x 20mm x 13mm
Update Rate 1Hz, max 10Hz –
Baud Rate 9,600 – 115,200 9600 –256000
Navigation Sensitivity -160dBm -
Power Requirements 3.3/5V 3.3/5V
Number of Channels 22 tracking, 66 channels –
Time to first start Cold start: 13s Cold start: <32 seconds
Warm start: 1-2s Hot Start: <1 seconds
Hot start: <1s
Antennas Antenna included Antenna included
Accuracy 2.5m GPS Horizontal Position Accuracy 2.5m Horizontal positioning accuracy
Specifications:
Parameters values
Supply voltage 3.3V/5V
Working current up to 50mA
Interface UART
Time of hot start <1s
Time of cold boot <32s
Working Temperature -30C-85°C
Storage Temperature -55°C-100°C
Time of Positioning Pure hardware cold start <32s
Pure hardware hot start <1S
Pure hardware recapture <1S
Software-assisted A-GNSS <5S
Sensitivity Cold start 148dBm
Hot Start -156dBm
Recapture -160dBm
Track -162dBm
Accuracy Horizontal positioning accuracy 2m
Speed accuracy 0.1m/s
Time transfer accuracy 30ns
Ultra-low-power [email protected] 31uA
Note:
- The test above is taken under bi-modules of GPS&Beidou.
Applications:
- GPS tracker
- GPS navigation
- Distance measurement
- Car navigation
- Drone
Documentations:
Package Includes:
- 1 x GPS (Air 530Z) board
- 1 x SeeedGrove cable

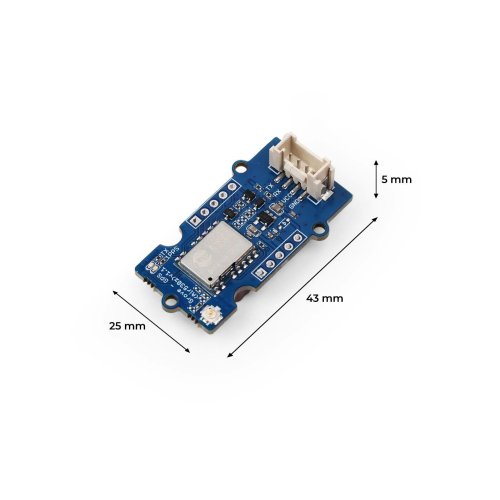

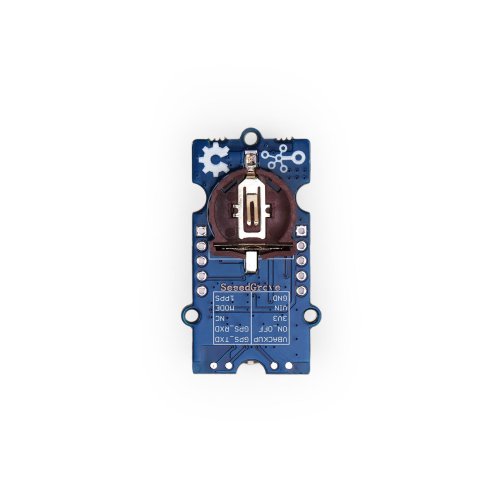

SeeedGrove - GPS (Air530Z),GPS location, Long-distance communication
- Brand: Seeed Studio
- Product Code: Seeed-Grove-GPS-Air530
- Reward Points: 9
- Availability: In Stock
-
रo 983.00
- Price in reward points: 983
-
- 85 or more रo 823.00
