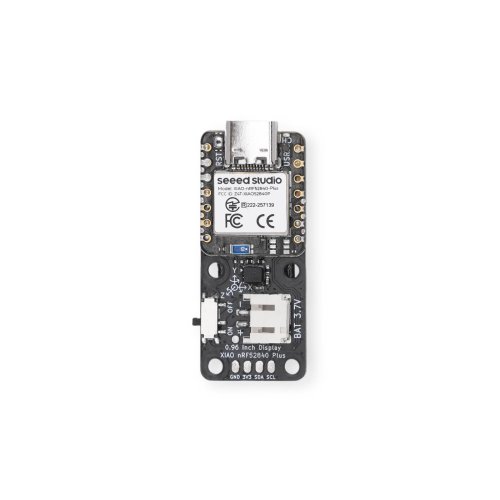

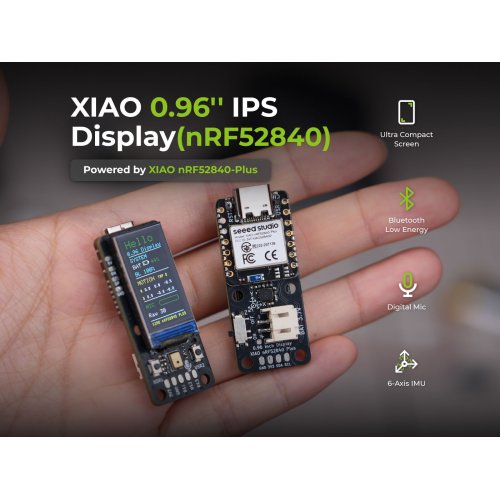

XIAO 0.96'' IPS Display (nRF52840) is the most compact member of the XIAO IPS Display series. Built on a 18.8 mm-wide board, it integrates a 0.96-inch IPS display, PDM digital microphone, 6-axis IMU, two user buttons, battery connector, and the pre-soldered XIAO nRF52840 Plus.

It is designed for tiny BLE status displays, smart badges, wearable notifiers, motion controllers, digital pets, and other battery-powered devices where size matters.

Specifications:

XIAO IPS Display Series – Specifications
Core Controller: Seeed Studio XIAO nRF52840 Plus
Processor: Nordic nRF52840, ARM Cortex-M4 32-bit processor with FPU, 64 MHz
Memory: 256 KB RAM + 1 MB Internal Flash + 2 MB Onboard Flash
Wireless Connectivity: Bluetooth Low Energy (BLE) 5.4
Display Interface: SPI
XIAO 1.47" IPS Touch Display
1.47" IPS TFT LCD
Resolution: 172 × 320 pixels
Display Driver: JD9853A
Capacitive Touch: Yes
6-Axis IMU: Yes
PDM Digital Microphone: Yes
MicroSD Card Slot: Yes
User Buttons: 2
Expansion: I2C, I2S, SWD and 2× User Button Interface
Best For: Touch UI, portable HMI, local media and data logging
Board Size: 26.4 × 51.4 × 12.6 mm
XIAO 1.14" IPS Display
1.14" IPS TFT LCD
Resolution: 135 × 240 pixels
Display Driver: ST7789
Capacitive Touch: No
6-Axis IMU: Yes
PDM Digital Microphone: Yes
MicroSD Card Slot: No
Grove I2C Connector: Yes
User Buttons: 3
Expansion: I2S, SWD and 3× User Button Interface
Best For: Portable sensor displays, Grove devices and physical controllers
Board Size: 26 × 48 × 10.6 mm

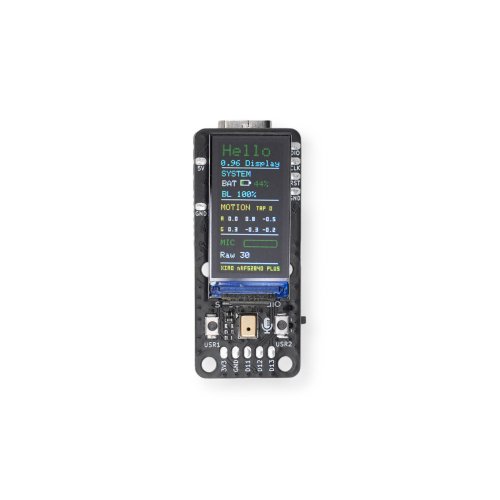

XIAO 0.96" IPS Display
0.96" IPS TFT LCD
Resolution: 80 × 160 pixels
Display Driver: ST7789
Capacitive Touch: No
6-Axis IMU: Yes
PDM Digital Microphone: Yes
MicroSD Card Slot: No
Grove I2C Connector: No
User Buttons: 2
Expansion: I2C, I2S, SWD and 2× User Button Interface
Best For: Smart badges, tiny wearables and BLE status displays

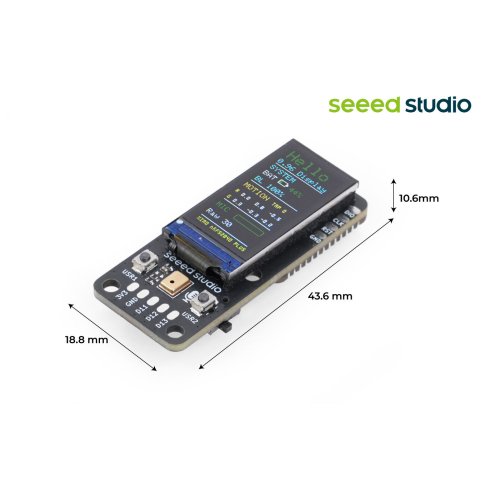

Board Size: 18.8 × 43.6 × 10.6 mm
Common Features
Battery Connector: 2-pin JST69 2.0 connector for 3.7 V LiPo battery
Battery Monitoring: Supports battery status detection and battery voltage monitoring for battery-level estimation
Display Technology: IPS TFT LCD
Processor Architecture: ARM Cortex-M4 32-bit
Operating Frequency: 64 MHz

Hardware Overview:

Documents

Wiki-XIAO 1.47'' IPS Display(nRF52840) Resources

Applications:

Smart Badge
Wearable Notifier
Compact BLE Status Display
Motion-Based Controller
Digital Pet and Interactive Toy
Miniature Sensor Display

Package Includes:

1 x Seeed Studio XIAO 0.96/1.14/1.47'' IPS Display (nRF52840) - 100063377/100069374/100004242

Seeed Studio XIAO 0.96/1.14/1.47'' IPS Display (nRF52840) - 100063377/100069374/100004242
