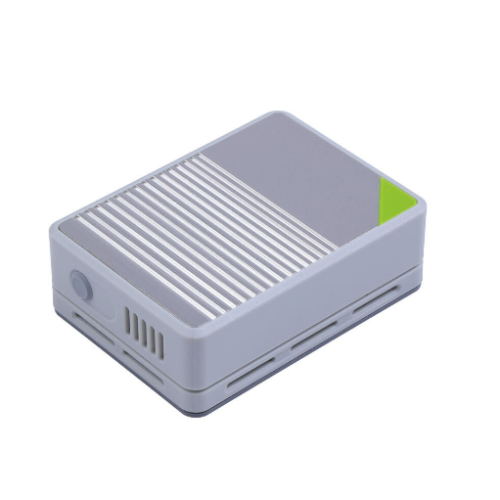

The Mini Router is pre-installed with a custom OpenWRT system and equipped with dual Gigabit Ethernet ports, dual USB 3.0 ports, and a Raspberry Pi Compute Module 4 with 8GB RAM and 64GB eMMC. The full system makes it suitable for soft router applications while keeping the hardware to a minimum. Discover More Raspberry Pi Powered Edge HMI, Controller, and Edge IoT Devices.

Features:

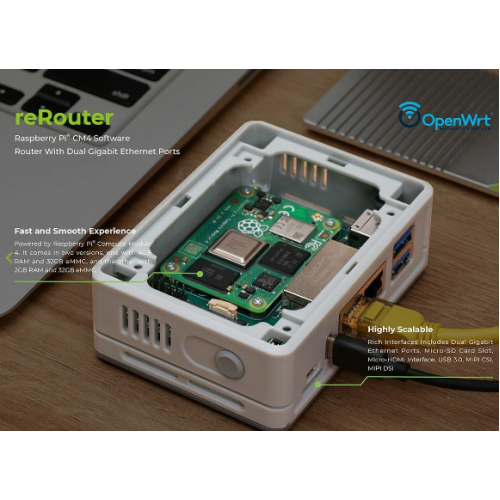

• Fast boot times and smooth overall experience: Powered by Raspberry Pi Compute Module 4 and 8GB RAM/64GB eMMC
• Compact and highly integrated: 75x64x21mm in size, with dual Gigabit Ethernet ports and dual USB3.0 ports
• Highly scalable with rich IO peripherals: dual Gigabit Ethernet connectors, Micro-SD card slot, micro-HDMI interface, USB 3.0, MIPI CSI, MIPI DSI, etc.

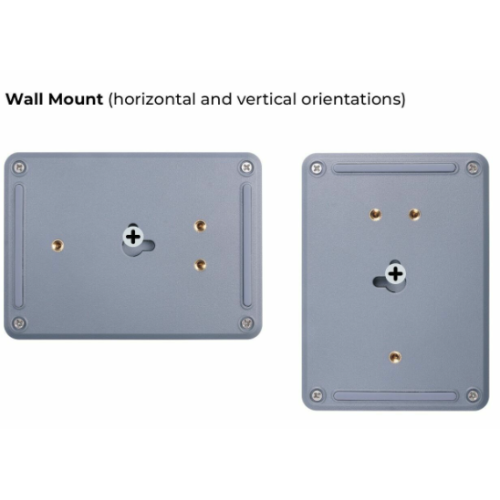

• Easy to deploy with stability: DIN rail mount and keyhole slot allow you to hang it anywhere
• Pre-installed OpenWRT firmware: Out of the box, can easily implement software router applications
• Customization Supported: Contact *[email protected]* for your customization needs

Specifications:

• Carrier Board

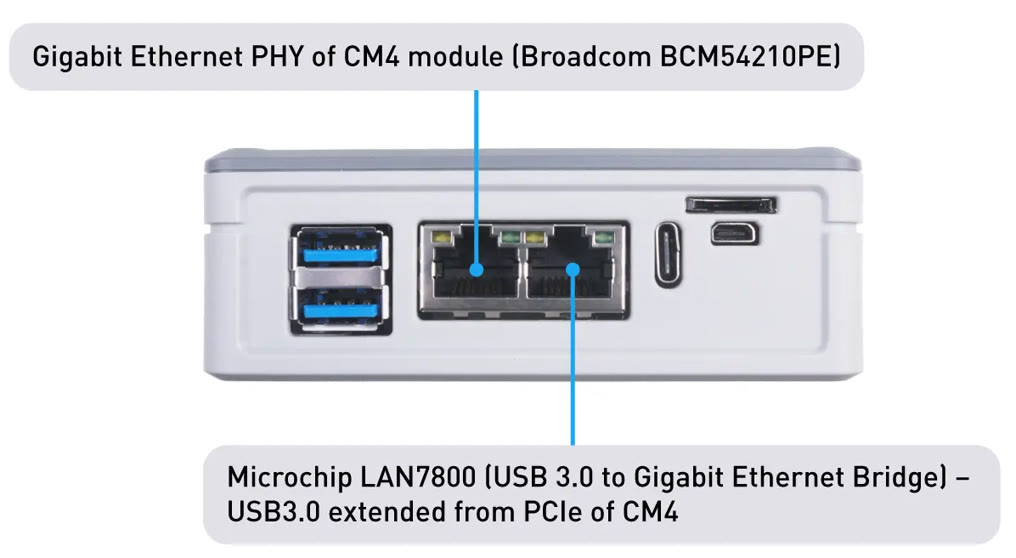

• Networking : Dual Gigabit Ethernet Connectors
• USB 3.0 to GbE(Gigabit Ethernet Bridge) : Microchip's LAN7800
• USB : 2 x USB 3.0 Ports1 x USB 3.0 9-Pin Header
• Storage : Micro-SD Card Slot (load system Image for non-eMMC CM4 version)
• Camera : 1 x MIPI CSI Connector
• Display : 1 x MIPI DSI Connector1 x Micro HDMI Connector
• FPC : Interface for I2C and SPI
• External Fan : Power connector for fan
• Power : 5V/3A using USB Type-C Port
• LAN7800 IndustrialTemperature Range : -40°C to +85°C
• Dimensions : 75x64x21mm
• Weight : 43g

Compute Module 4:

• Processor : Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
• Memory : 8GB LPDDR4
• Storage : 64GB eMMC
• Connectivity : 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac Wi-Fi, Bluetooth 5.0, BLE with onboard and external antenna options
• Onboard Gigabit Ethernet PHY supporting IEEE1588
• 1 × USB 2.0 interface
• PCIe Gen 2 x1 interface
• 28 GPIO signals
• SD card interface for SD card or external eMMC
• Video : Dual HDMI interface (up to 4Kp60 supported)
• 2-lane MIPI DSI display interface
• 2-lane MIPI CSI camera interface
• 4-lane MIPI DSI display interface
• 4-lane MIPI CSI camera interface
• Multimedia : H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
• Input power : 5V DC
• Operating temperature : 0 to +80°C
• Dimensions : 55 mm × 40 mm
• Production lifetime : at least January 2034
• Compliance : Documents - Product Information Portal - Raspberry Pi

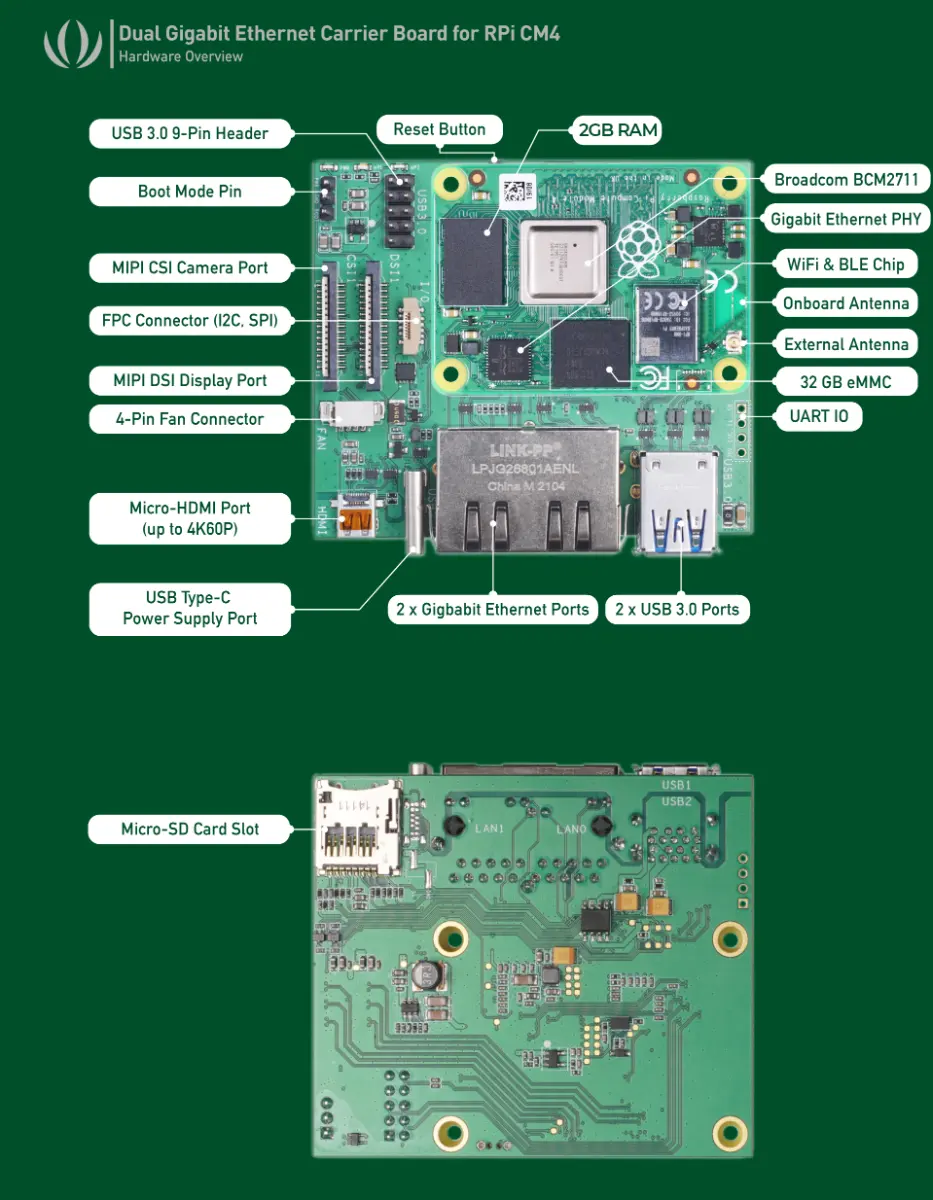

Hardware Overview:

Applications:

• Software Router
• IoT applications
• Smart Home
• Camera / Video-related Projects

Documentations:

• Schematics
• Microchip LAN7800 Datasheet
• Seeed's Raspberry Pi-based Success Cases
• Seeed Rasperry Pi Flyer

Package Includes:

• 1 x Dual Gigabit Ethernet Carrier Board for Raspberry Pi CM4 with 8GB RAM, 64GB eMMC
• 1 x Aluminum Case
• 1 x International Wall Adapter Power Supply 5VDC 4A – Type-C (with US/AU/UK/EU plugs)
