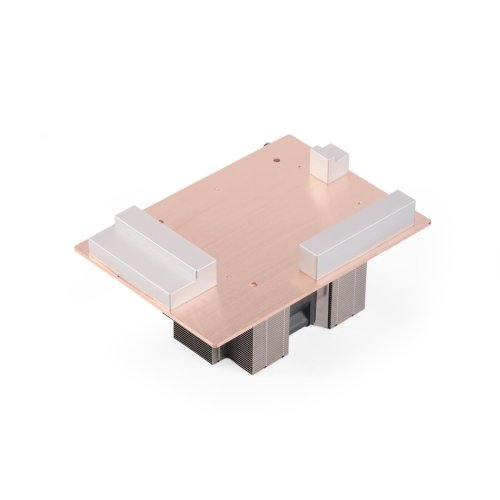

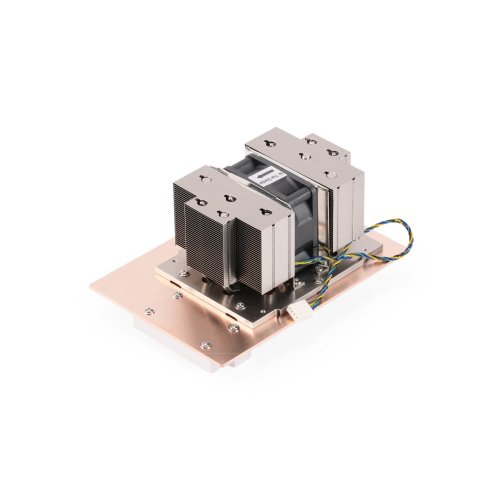

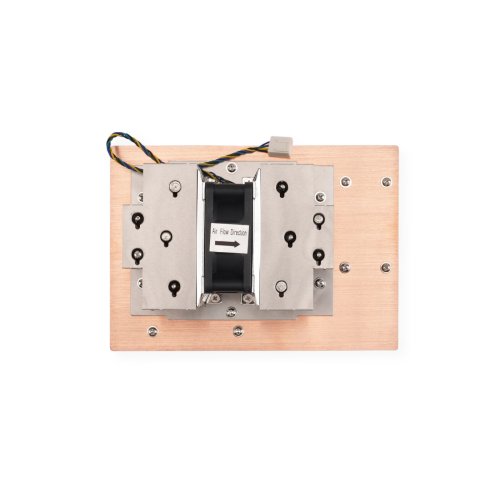

reComputer J601 heatsink with fan provides powerful cooling for NVIDIA Jetson AGX Thor™ modules, ensuring module‘s performance in up to 60C ambient temerpature (with thermal grease).

• Compatible for Jetson AGX Thor Compatible with NVIDIA Jetson AGX Thor™ module
• 60 degree Ambient Temperature Ensuring module's full performance up to 60 degree celsius ambient temperature

Specification

• Dimension: 169mm x 120mm x 67mm
• Rated Voltage: 12V
• Max air flow: 62 CFM

Hardware Overview

Application:

Put the 6 thermal pads on the heatsink at the following positions in red rectangle areas.

There are two foam cubes intended for support of the PCB and heatsink. They need to be taped here at following positions on the bottom side of the reComputer J601 carrier board.

The screws shall be inserted from the bottom side of the carrier board to lock the module and the heatsink (from the top side).

For 3D printed stands to hold up carrier board and heatsink, please refer to stl file here (you would need to print 2 of them，slot intended for the copper plate)

Documents:

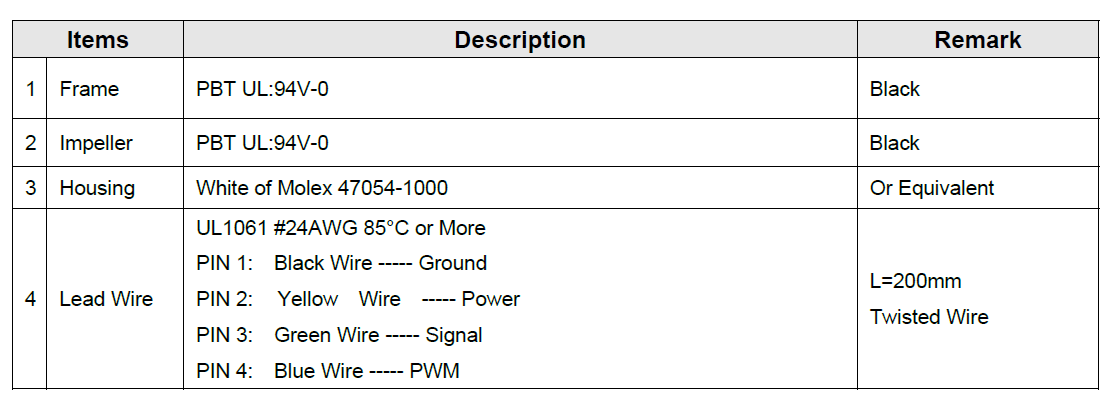

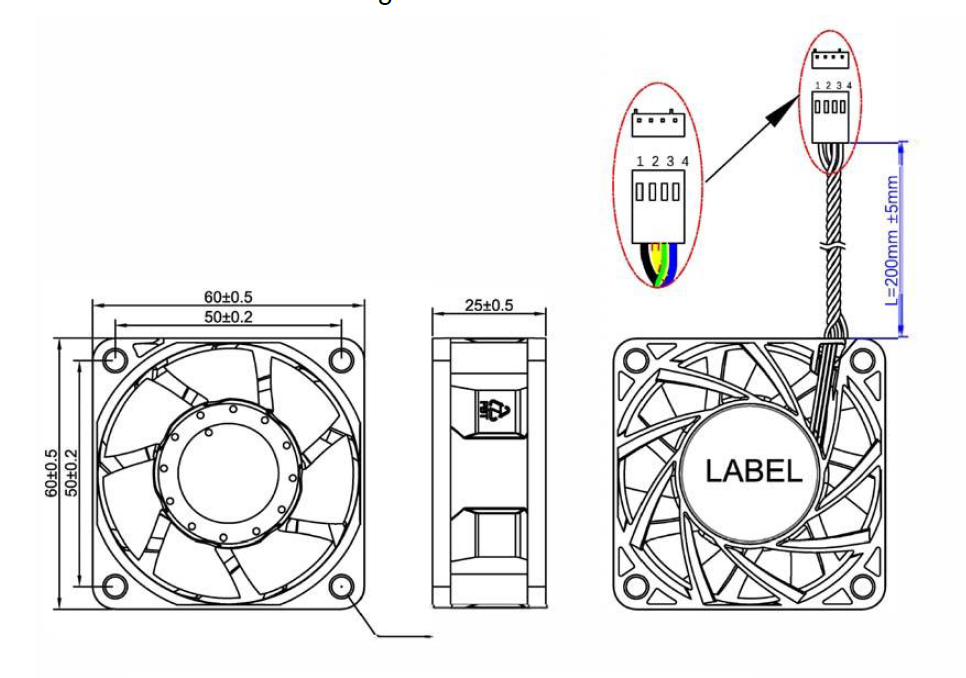

• Fan Datasheet

Certification:

• HSCODE 8473309000
• USHSCODE 8473309100
• UPC
• EUHSCODE 8473308000
• COO

Package Includes:

• 1 x Heatsink
• 5 x Thermal Pad
• 4 x Screw
