Designed specifically for reCamera, this WiFi HaLow expansion module enables effortless image and video transmission over distances of up to 1 km. Built for reliable long-range connectivity, it's ideal for industrial parks, campgrounds, neighborhoods, farms, and other wide-area surveillance applications.

Features:

• Long Wireless Range: Operates in the 902–928 MHz band, delivering a stable connection of up to 1 km in open environments
• Superior Signal Penetration: Designed specifically for IoT deployments, providing enhanced penetration through walls, trees, and other obstacles to ensure reliable communication in complex outdoor and industrial environments.
• HD Video Transmission: Supports data rates of up to 32.5 Mbps with an 8 MHz channel bandwidth, enabling stable and smooth 720p video streaming to remote endpoints over long distances.
• Modular Expansion Design: A dedicated expansion board for the reCamera 2002 series, adding Wi-Fi HaLow connectivity to existing AI cameras and enabling remote wireless deployment of edge AI solutions.
• Flexible Power Options: Supports 12V DC input, 5V USB Type-C, and 3.7V Li-ion battery power supplies, making it compatible with batteries, solar panels, and various other power sources.
• Adapter & Expansion Interface: Includes a 4-pin to 5V USB Type-C adapter, allowing seamless integration with our waterproof enclosure and external high-gain antenna for enhanced deployment flexibility.

Note:

• Coverage Notice: The advertised maximum transmission range of 1 km is measured under ideal line-of-sight (LOS) conditions with no obstructions. Actual coverage may vary depending on environmental interference, antenna gain, and physical obstacles.
• Antenna Recommendation: The product features an SMA antenna connector. For optimal performance, the use of an appropriately rated external antenna is recommended. The included short antenna is sufficient for most application scenarios.
• Compatibility Notice: This expansion board is specifically designed for reCamera 2002, reCamera 2002w, and reCamera 2002 HQ PoE. It is not compatible with products such as reCamera Pro or reCamera Gimbal.

Specifications:

• WLAN Protocol : IEEE 802.11ah (WiFi HaLow)
• Wi-Fi Frequency Band : 902 - 928 MHz
• Encryption Mode : WPA3-SAE，OWE，No encryption
• Wi-Fi Modulation Mode : Support OFDM，BPSK，QPSK，16QAM，64QAM
• Wi-Fi Operating Mode : STA
• Bandwidth  : 2 MHz, 4 MHz, and 8 MHz modes.
• Maximum Data Rate : Up to 32.5 Mbps (theoretical maximum)
• Maximum Transmission Range : Up to 1 km in open environments
• Antenna Interface : SMA or I-PEX (external antenna)
• Maximum Transmit Power (Theoretical) : 27 dBm
• Power Supply : 12V DC, USB Type-C, or 3.7V Li-ion battery
• Operating Temperature : -20°C to 50°C
• Certification : FCC
• Compatible Gateways : HaLowLink, Raspberry Pi HaLow module
• Wi-Fi Antenna : 1 x 1

Hardware Overview:

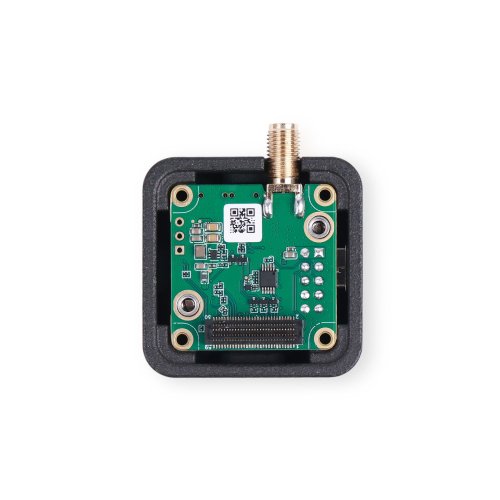

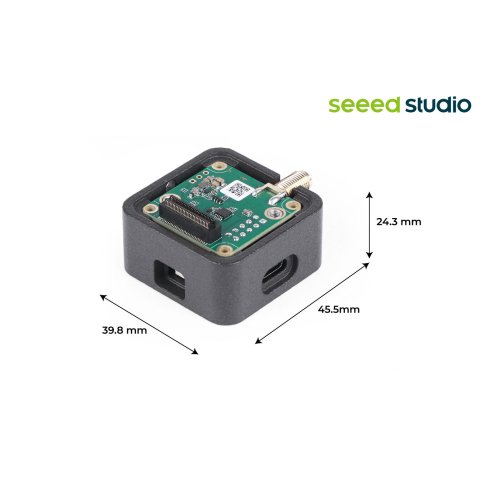

The hardware is designed as a modular baseboard, integrating a WiFi HaLow module with an SMA antenna interface. It can be powered via 5V or 12V DC power input or a USB Type-C interface. For detailed port layout, please refer to the product images.

Documentations:

• Quectel FGH100M-H Datasheet
• Quick Start Links

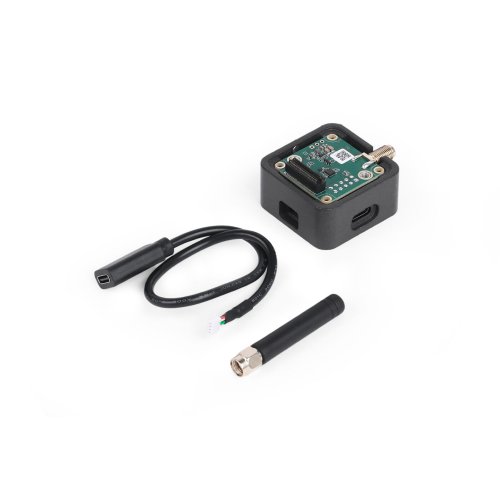

Package Incldes:

• 1 x reCamera 2002 Base Board WiFi HaLow
• 1 x External Antenna
• 1 x USB Type-C Extension Cable
• 4 x Screws
