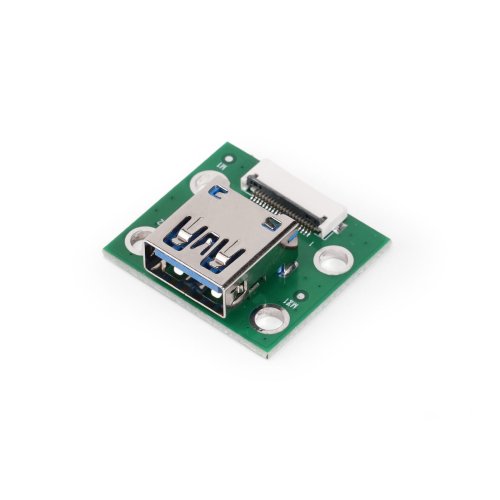

Leetop USB-to-Zif Adapter Board is the Zif-to-USB adapter board for A603 Carrier Board for Jetson Orin NX/Nano. It can be connected to W11 on A603 board through FPC cable, for USB extension.

Product: USB-to-ZIF Adapter Board

• Operating Temperature: 0°C–40°C

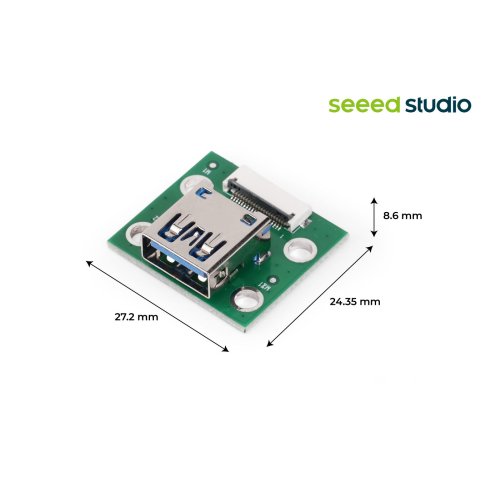

• Mechanical Dimension: 27.2 mm × 24.8 mm
• Communication Interface: USB 3.0

Hardware Overview

• Pin 1: 5V
• Pin 2: 5V
• Pin 3: 5V
• Pin 4: 5V
• Pin 5: 5V
• Pin 6: GND
• Pin 7: USB2.0_DN
• Pin 8: USB2.0_DP
• Pin 9: GPIO_01
• Pin 10: GND
• Pin 11: USB3.0_SSTX_N
• Pin 12: USB3.0_SSTX_P
• Pin 13: GND
• Pin 14: USB3.0_SSRX_N
• Pin 15: USB3.0_SSRX_P
• Pin 16: GND
• Pin 17: GPIO_06
• Pin 18: GND
• Pin 19: GND
• Pin 20: GND
• Certification
• HSCODE: 8473309000
• USHSCODE: 8473309100
• UPC:
• EUHSCODE: 8471707000
• COO

Package Includes:

• 1 x USB-to-ZIF Adapter Board
• 1 x FPC Cable
