The BeagleBoard® BeagleBadge is a high-performance, fully programmable, open-source smart-wearable development board in a badge form factor. Powered by the low-power TI AM62L32 SoC, it includes a 4.2-inch ePaper display via a 24-pin FPC connector, and includes onboard sensing (IMU, ambient light, temperature & humidity) plus intuitive physical controls. With Wi-Fi 6, Bluetooth® 5.2, and LoRaWAN connectivity—and Grove/Qwiic/mikroBUS expansion—it’s a versatile platform for interactive IoT, event badges, and portable human–machine interface (HMI) prototypes.

Feature:

Step into the future of interactive wearables with the BeagleBadge. Visually striking and ready out-of-the-box, its large 4.2-inch e-paper display and intuitive physical controls—including a 4-way joystick and tactile buttons—offer a dynamic user interface for everything from digital event badges to portable data dashboards. Combined with built-in sensors for tracking motion (IMU) and ambient light, it enables deeply context-aware interactions. Under the hood, the high-performance yet low-power TI AM62L32 processor and comprehensive wireless suite (Wi-Fi 6, Bluetooth 5.2, LoRaWAN) ensure you have the computing and connectivity muscle to run complex edge computing or decentralized communication projects anywhere you go.

Prominent e-Paper Display & Intuitive UI

Designed as the ultimate smart badge, it features supports for a large 4.2" e-paper display via an FPC connector for crisp, low-power visualization. Combined with a 4-way joystick, tactile buttons, an RGB LED, and dual 7-segment displays, it offers a fully interactive out-of-the-box HMI experience.

Next-Gen Processing Power

Powered by the TI AM62L32, a low-power SoC featuring a Dual-core Arm® Cortex®-A53 processor at 1.25GHz, perfectly optimized for complex edge computing and portable applications.

Comprehensive Wireless Connectivity

Integrates the BeagleMod CC3301-1216 module for robust Wi-Fi 6 (2.4GHz) and Bluetooth 5.2, plus a Wio SX1262 module for long-range LoRaWAN communication, ensuring you stay connected anywhere.

Rich Sensing & Limitless Expansion

Comes equipped with an onboard IMU and ambient light sensor for context awareness. Designed for ultimate modularity, it features built-in Grove, dual QWIIC, and mikroBUS connectors, granting plug-and-play access to thousands of external modules.

Robust Open-Source Ecosystem

Supports Linux and Zephyr base ports with a mainline roadmap. Ready for interactive display development with LVGL and MicroPython libraries, and includes Meshtastic and ActivityPub integration for seamless off-grid messaging.

Specification:

Processor: TI AM62L32 (Low-power IoT / HMI SoC)
CPU: Dual-core Arm® Cortex®-A53 @ 1.25 GHz
RAM: 2GB LPDDR4 (1600MHz / 3200Mbps)
eMMC Storage: 4GB
Flash Memory: 256Mb OSPI Flash
EEPROM: 32Kb
WiFi: WiFi 6 (2.4GHz) via CC3301 module
Bluetooth: Bluetooth 5.2 (BLE support)
LoRaWAN: SX1262 module support (u.FL connector)
Display: 4.2-inch e-Paper display (24-pin FPC connector)
Video Interface: MIPI DSI connector support
Sensors: IMU sensor, Ambient light sensor, Temperature & Humidity sensor (optional)
Expansion Ports: mikroBUS, Grove, Qwiic (2x)
USB Ports: USB 2.0 Type-A host
Storage Slot: MicroSD card slot
Buttons: Reset button, 2x tactile buttons (Back / Select)
Joystick: 4-way joystick with press function
Output: Passive buzzer
Indicators: RGB LED, 2x 7-segment displays
Power Input: USB Type-C (Power + Debug)
Battery Support: BL-5C Li-ion battery connector with fuel gauge
Software Support: Linux, Zephyr RTOS, LVGL, MicroPython, Meshtastic, ActivityPub

Hardware Overview

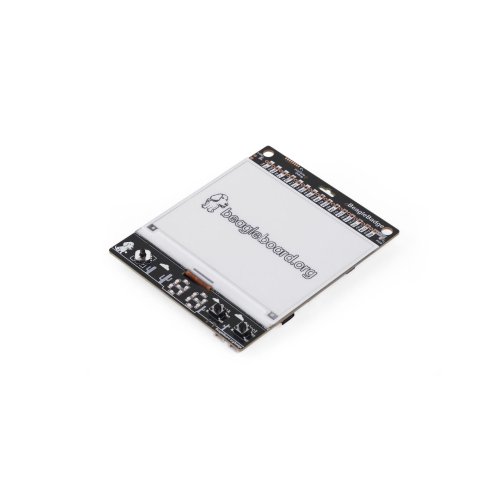

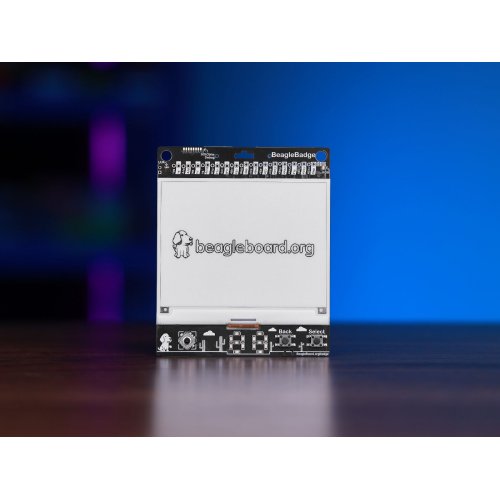

Front

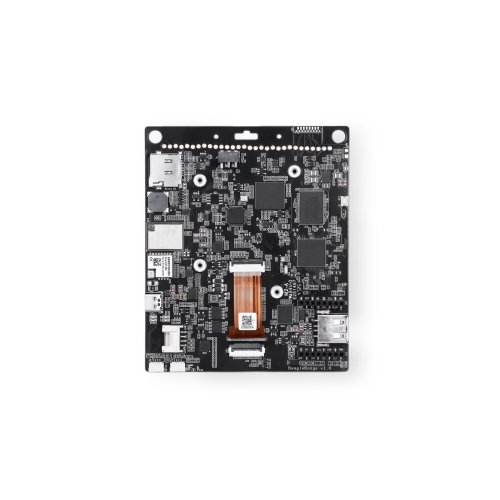

Back

Application:

Smart Wearables & Smart Badges：Utilizing the ePaper display and sensing capabilities for dynamic event badges or personal assistants.
Edge Computing Devices: Leveraging the high-performance TI AM62L32 processor and Linux capabilities to process sensor data locally at the edge, reducing latency and cloud dependency.
Off-grid Communication Nodes：Leveraging Meshtastic and LoRaWAN for decentralized messaging in remote areas.
Environmental & Health Monitoring：Using the built-in LUX/IMU sensors combined with external bio-sensors via expansion ports.
Embedded control systems：Taking advantage of the TI AM62L32 processor's real-time processing capabilities.6.
