Instead of using coil, packaged solid-state relays(SSR) use power semiconductor devices such as thyristors and transistors, which provide a much faster switching speed than the mechanical relays. The Grove - Solid State Relay V2 is based on the high-quality G3MC202P module, which allows you to use a 5VDC to control MAX. 240VAC. With the help of Grove interface, it becomes very convenient to use the SSR with your arduino.

• According to different application scenarios, we've prepared a series of solid state relays for you.

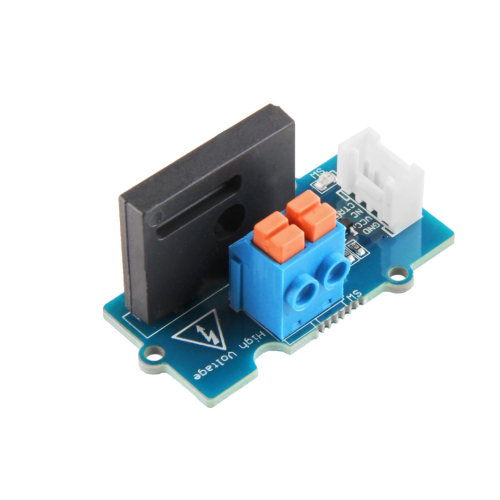

• Grove - Solid State Relay V2

Specifications:

• Dimensions 40mm x20mm x25mm
• Weight G.W 131g
• Battery Exclude
• Operating Input Voltage 4~6V
• Rated Input Voltage 5V
• Load Voltage Range 75 to 264 VAC 50/60 Hz
• Rated Load Voltage 100 to 240 VAC 50/60 Hz
• Load Current 0.1 to 2 A
• Leakage Current 1.5 mA max. (at 200 VAC)
• Insulation Resistance 1,000 MΩ min. (at 500 VDC)
• Operating Temperature -30°C to 80°C (with no icing or condensation)
• Operating Humidity 45% to 85%RH
• Zero Cross support

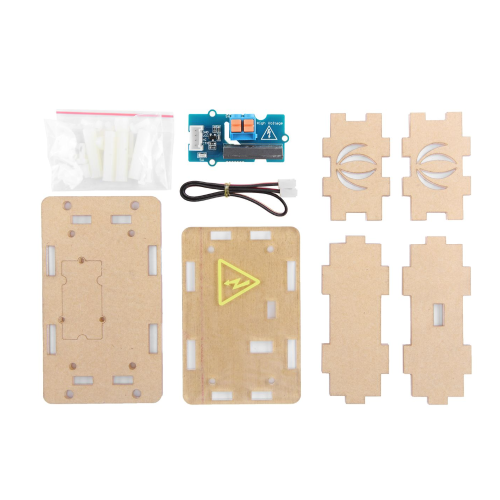

Package Includes:

• 1 x Grove - Solid State Relay V2
• 1 x Grove Cable
• 1 x A set of Acrylic Shell
