A FluxNode powered by FluxOS supports potential extension for other web3.0 dAPP. No code seamless set up the FluxNode with SenseCAP M4 Square for scalable,decentralized computational network.

SenseCAP M4 Square is a plug and play FluxNode powered by FluxOS that supports potential extension for other web3.0 dAPPs.
FluxOS is a revolutionary second-layer operating system that allows hardened dockerized apps to run on Flux’s fully decentralized computational network, making it highly resilient to both system failure and outside attempts of censorship. Powered by FluxOS, SenseCAP M4 Square provides easy and friendly methods to deploy CUMULUS FluxNode with SenseCAP Hotspot App.

Plug and Play:

SenseCAP M4 Square provides the easiest way to deploy CUMULUS FluxNode. No Linux command, No need to build environment, and only 4 steps to finish deployment.
Step 1: Power up and connect to internet
Step 2: Install and login SenseCAP Hotspot App
Step 3: Connect App to SenseCAP M4 Square via Bluetooth

Step 4: Input FluxNode Info and start to deploy, then SenseCAP M4 Square will deploy FluxNode automatically

Support Multiple Apps

SenseCAP M4 Square is a powerful extensible device. It’s a perfect device for deploying multiple applications. So SenseCAP team builds a dApp center to help users reduce the complexity of multi-application deployment. Users can quickly and easily install applications on SenseCAP M4 Square via SenseCAP Hotspot App. The first App is Flux, more Apps.

Cloud Service:

One-stop cloud services include SenseCAP Hotspot App and SenseCAP Dashboard, which help users manage the entire lifecycle of devices: purchase devices, set up devices via Bluetooth, get comprehensive devices information, monitor device running status, contact tech support, and get the latest services and news provided by senseCAP.

High Security:

To keep your precious data secure, SenseCAP M4 Square Built-in TPM2.0 cryptographic processor and ECC608 crypto chip protect devices from external software threats and physical theft.

Excellent Performance:

Powered by the Intel® Celeron® J4125(Frequency: 2.0 - 2.7GHz) and combined with Raspberry pi@ RP2040 32bit Dual-core Arm Cortex M0+ to optimize the SenseCAP M4 Square performance. Excellent performance allows SenseCAP M4 Square to process multi-applications reliably and efficiently and provides higher EPS and faster disk write speed(DWS).

Low Power Consumption:

SenseCAP M4 Square device power consumption is only 10W, 7*24 hours running only cost $12.61 per year. Users can deploy more devices with minimal power cost (global average kWh price of $0.144/per kWh).

Cancellation policy:

SenseCAP M4 Square follows Non-Cancellable/Non-Returnable (“NCNR”) policy.

Sales territory

Due to local policy and regulations, China Mainland, Hong Kong, and Macau are considered as restricted areas for selling and deploying the SenseCAP M4 Square, thus any order placed with shipping destination as said areas will be considered invalid. So please make sure you could use SenseCAP M4 Square in your region before placing the order.

Features:

Plug and Play: Provide a no code experience that enables users to finish deployment CUMULUS FluxNode with 4 steps.
Support Multiple Apps: Deploy multiple applications provided by SenseCAP from the dApp center. The first App is Flux, more Apps coming soon.
Cloud Service: Provide a one-stop cloud service to help users purchase, deploy, manage, and monitor their devices.
Excellent Performance: Powered by Intel® Celeron® J4125 (Frequency: 2.0 - 2.7GHz) with 4 cores and 4 threads. Built-in TPM2.0 cryptographic processor and ECC608 crypto chip, high-security authentication, and reliable connectivity.
Low Power Consumption: 10w low power consumption, 7.2 kWh per month, cost $1.008 per month (global average kWh price of $0.144/per kWh).

Specifications:

Components: SenseCAP M4 Square
Processor: Intel® Celeron® J4125 (Frequency: 2.0 - 2.7GHz)
Coprocessor: Raspberry pi@ RP2040 32bit Dual-core Arm Cortex M0+
Graphics: Intel® UHD Graphics 600 (Frequency: 250 – 750MHz)
Memory: LPDDR4 8GB
Storage: Internal 512GB SSD
Wireless: Wi-Fi 802.11 a/b/g/n/ac @ 2.4/5 GHz HT160
Networking: Intel®226-V PCIe2.5GbE LAN, Supports Wake-On-LAN, Supports PXE
Audio: Microphone + headphone Combo Connector
USB: USB 2.0 Type-A x2, USB 3.1 Type-A x1, USB 3.1 Type-C x1
Video Interfaces: HDMI2.0a: Up to 4096x2160 @ 60Hz 24bpp / DP1.2a: Up to 4096x2160 @ 60Hz 24bpp
Expansion Slots: M.2(Key B, 2242/2280): SATA III, USB2.0, UIM; M.2 (Key M, 2242/2280): PCIe 2.0 ×4; Micro SD card Socket; SIM Card Socket; SATA III
Operating temperature: 0°C～45°C
Storage temperature: -20°C～60°C
TPM: Built-in TPM 2.0
Power: DC Jack 5.5/2.1mm or Type-C PD; DC Jack input: 12-19V DC; Type-C input: 15V DC

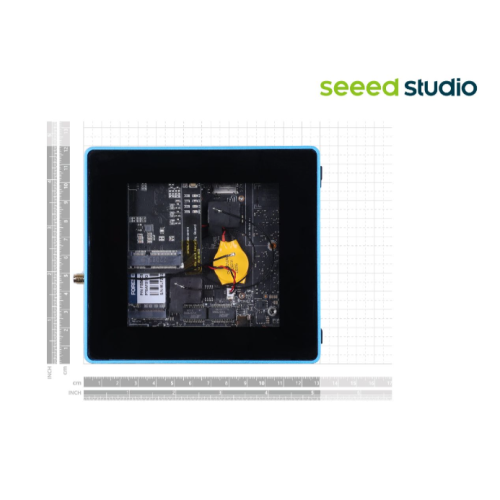

Dimensions: 130x120x50mm
Certifications: FCC, CE

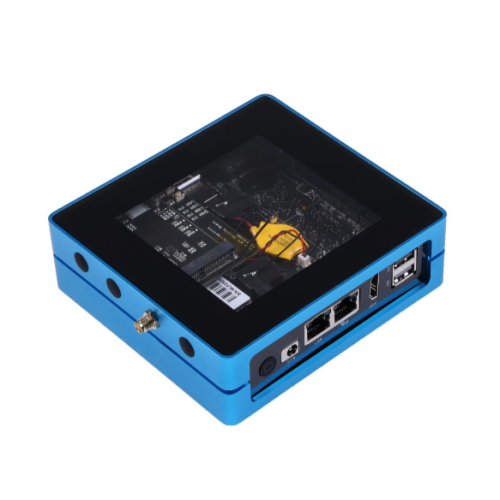

Hardware Overview:

SenseCAP M4 Square runs at a Quad-core Intel® Celeron® J4125 and RP2040 co-processor, equipping dual 2.5GbE interfaces and multiple wireless connectivities, supporting 4K output, carrying sufficient storage capability, and equipment expandability.
