A compact and modular AI camera, with built-in YOLO11, support for custom AI models, and Node-RED integration. Equipped with a superior CMOS sensor designed for high-definition imaging, it delivers clear pictures even in low-light conditions. It also help increase the accuracy of AI recognition. With an M12 lens mount, the default lens can be replaced with any compatible 2MP M12 lens to fit different use cases. Supports Power over Ethernet (PoE). Removes the need for extra adapters and makes installation more flexible in various locations.

Features:

• reCamera is a compact and modular AI camera built for creators and developers.
• With built-in YOLO11, support for custom AI models, and seamless Node-RED integration, it’s the fastest way to bring AI vision into any project or system.
• The new reCamera 2002 HQ PoE is redesigned for superior image quality and effortless deployment.
• Its advanced CMOS sensor captures sharper, clearer images — even in low-light conditions. The improved imaging performance not only enhances visual clarity but also boosts the accuracy of AI recognition.
• Equipped with a flexible M12 lens mount, reCamera 2002 HQ PoE lets you easily swap the default lens for any compatible 2MP M12 lens, adapting to a wide range of scenarios and creative needs.
• The reCamera HQ PoE adds Power over Ethernet (PoE) support — providing both power and data through a single Ethernet cable. No more extra adapters or clutter — just plug in and deploy anywhere, effortlessly.

Open Source, Designed for Developers

• Fully Open Source — both hardware and software.
• Built-in YOLO11 with commercial license, native support for SenseCraft AI models.
• Web-UI for device management and OTA updates.

Edge AI Capability

• Dual C906 cores @1GHz + 700MHz with integrated NPU.
• 1 TOPS @ Int8 NPU performance.
• Up to 15 FPS with YOLO11n.
• Built-in 5MP ISP and H.264/H.265 hardware encoder.

 Multiple Ways to Develop AI Applications

• Built-in Node-RED — enables low-code visual flow development.
• C++ SDK available for advanced developers requiring full control and high performance.

 High-Quality and Adaptable Camera System

• 1/2.9-inch GC2053 CMOS sensor — delivers excellent image quality and low-light performance.
• M12 Lens Mount — default 93° FOV; easily replaceable with any standard M12 lens for different use cases.

 Enhanced Power and Connectivity

• PoE (Power over Ethernet) — power and data through a single Ethernet cable for cleaner installation.
• I/O & UART Expansion — 6-pin header providing 1×UART and 3×GPIO for custom peripherals.
• Easy-to-use MQTT/HTTP/UDP/WebSocket protocols supported in Node-RED.

Specifications:

• Processing System
•  SOC                                        : SG2002
• CPU                                         : C906@1GHz + C906@700MHz
• Al Performance                       : 1 Tops @ Int8
• MCU                                        : 8051 @ 8KB SRAM
• Memory                                   : 256 MB
• Storage
• eMMC                                     : 8GB / 64GB
• Camera
• Sensor                                      : GC2053
• Optical Format                         : 1/2.9inch
• Resolution                                :1920x1080
• Max Frame rate                        : 30fps@full size
• lens mount                                : M12
• FOV                                         : 93°
• Interface
• Ethernet                                    : 100Mbps with PoE
• USB                                          : USB Type-C(2.0)
• IO                                              : 3 GPIO + 1 UART
• Ambient Conditions
• Operation Temperature             : -20～50°C
• Operation Humidity                  : 95%
• Others
• Dimension                                : 40x40x45.8mm

                                                                 40x40x53.1mm with lens

• Power                                       : 5V/1A USB Type C or Ethernet withPoE

Hardware Overview:

Documentations:

• GC2053 datasheet
• lens datasheet
• PoE module datasheet
• OSHW reCamera Series github
• reCamera OS
• reCamera Flyer
• reCamera Flyer - CN

Certifications:

• HSCODE : 8525891900
• USHSCODE : 8525895050
• UPC
• EUHSCODE : 8517600000
• COO         : CHINA

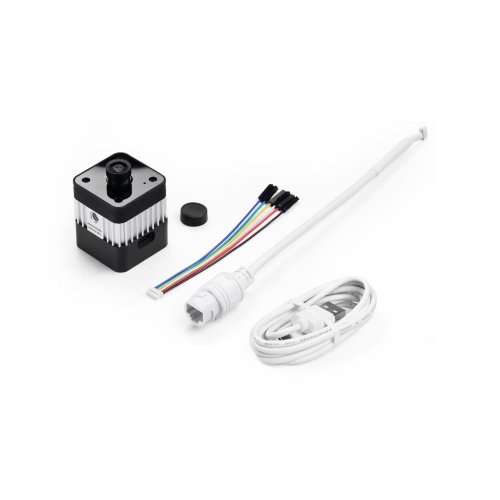

Package Includes:

• 1x reCamera 2002x HQ PoE
• 1x USB Type-C Wire
• 1x Ethernet Wire
• 1x User Manual
• 1x 6 Pin Cable
