The highly accurate PT1000 sensor, capable of measuring temperatures within a wide range of -50°C to 300°C, is commonly used in various industrial applications, especially in liquid detection, food monitoring, storage cold chain, industrial boilers, and aquaculture solutions. PT1000 sensors, also known as 1000-ohm temperature sensors, represent the most prevalent type of platinum resistance thermometer.

• Direct contact temperature is an important indicator in many scenarios, especially in liquid detection, food monitoring, storage cold chain, industrial boilers, and aquaculture solutions. PT1000 can offer a wide range of direct contact temperatures between -50°C to 300°C.
• We also provide wireless DTU of PT1000: LoRaWAN Temperature Sensor S2107, which supports a three-wire circuit for PT1000 sensors and allows for the connection of up to three sensors simultaneously. S2107 is a battery-powered IP66 wireless PT1000 temperature sensor, equipped with built-in Bluetooth and APP service for OTA configuration and remote device management.

Features:

• High-performance: anti-interference and long-term stability
• Easy to install: small size, lightweight, easy to install
• Fast response: sensitive to temperature changes and responds quickly
• Wide temperature range: a wide range of -50°C to 300°C

\

Seeed also provides the SenseCAP Portal and SenseCAP Mate App to help users better manage and check data remotely.

Add 3 PT1000 sensors to S2107:

Specifications:

• Measuring element: RTD platinum resistance Pt1000
• Measuring medium: Solid, liquid or gas (compatible with contact material)
• Range: -50 to 300 ℃ (For other range customization contact [email protected], MOQ 300pcs)
• Accuracy: Class B+ (@typical ±0.5℃)

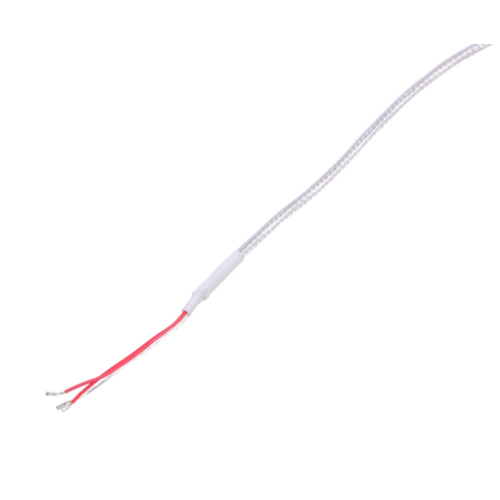

• Wire material: PTFE silver-plated wire (3-wire)
• Probe Enclosure: 304 stainless steel
• Operating Temperature: -50 to 200℃(Cable); -50 to 300℃ (Probe)
• IP Rating: IP68
• Probe length: 4 * 30mm
• Cable length: 3 meters

Application

• Liquid detection
• Food monitoring
• Storage cold chain
• Aquaculture solutions

ECCN/HTS

• HSCODE 9025191010
• USHSCODE 9026104000
• UPC
• EUHSCODE 9013101000
• COO CHINA

Package Includes:

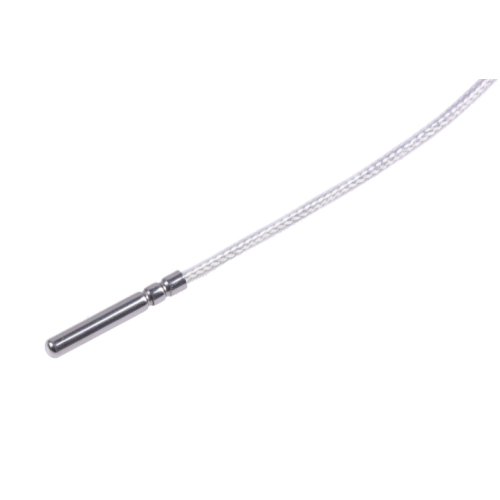

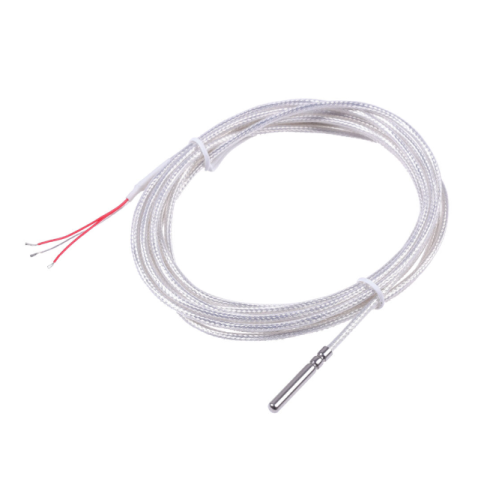

• 1 x PT1000 Temperature Sensor Probe with Anti-Corrosion Stainless Steel
