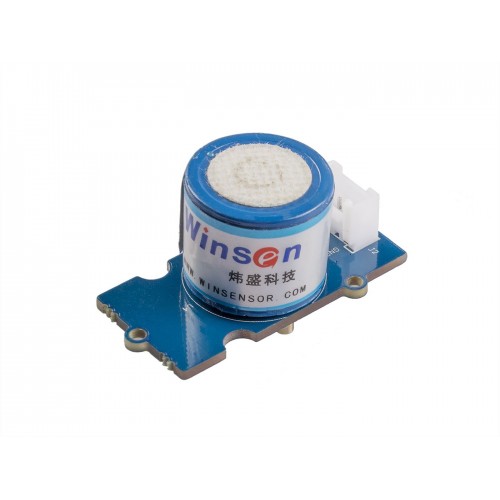

Grove - Oxygen Sensor(ME2-O2-Ф20) is a kind of analogue gas sensor to test the oxygen concentration in air, which is based on the principle of the electrochemical cell to the original work. You can know clearly the current oxygen concentration when you output voltage values proportional to the concentration of oxygen and refer to the oxygen concentration linear characteristic graph.

Features:

• High precision
• High sensitivity
• Wide linearity range
• Strong anti-interference ability
• Extraordinary reliability and stability

Specifications:

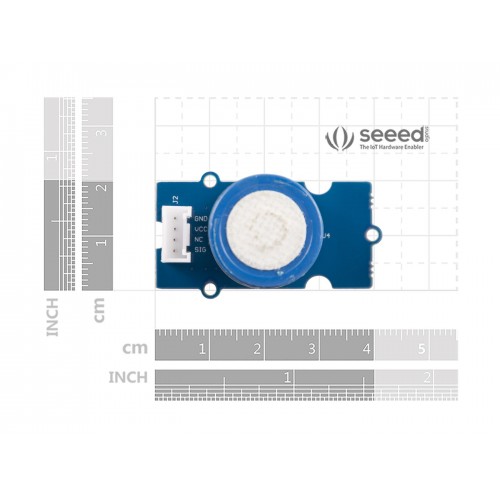

• Dimensions: 20mm x40mm x20mm
• Weight: G.W 0.033g
• Battery: Exclude
• Input voltage: 3.3V / 5V

Applications:

• Oxygen Analyzer
• Air Purifier
• Environmental Monitoring

Documents:

• ME2-O2 Datasheet
• Schematic in Eagle File
• GitHub Repository of this Document

Package Includes:

• 1 x Grove - Oxygen Sensor(ME2-O2-Ф20)
