Features:
- Open-Source Design The Amazing Hand is fully open-source, with all code and mechanical designs freely available. This allows easy customization and adaptation for a wide range of robotics projects.
- 8 Degrees of Freedom (DOF) It features eight degrees of freedom across four fingers, each with two articulated phalanxes. This enables versatile and natural hand movements.
- Compact and Lightweigh All actuators are housed inside the hand, eliminating external cables. At only 400 g, it is lightweight and easy to integrate into various applications.
- 3D-Printable and Cost-Effective The hand is fully 3D-printable and includes all modular components, makes it an affordable option for students, hobbyists, and researchers.
- Ideal for Research and Education Its open-source and accessible design makes it perfect for AI experiments and robotics learning. It is also suitable for data collection and algorithm validation.
Specifications:
- Module : Amazing Hand
- Supported Controller : Raspberry Pi / NVIDIA Jetson / MCU
- Operating Temperature Range : 0℃～40℃
- Weight : 400g （without Servo）
- Construction : Fully 3D printable with rigid "bones" and flexible TPU shells
- Actuation : Parallel mechanism with 2x Feetech SCS0009 servos per finger
- Motion : Flexion/Extension & Abduction/Adduction via differential motor movement
- Feetech SCS0009 Communication Protocol : UART
- Feetech SCS0009 Rated Input Voltage : 5V
- Feetech SCS0009 Servo Rated Torgue : 1.89KG.cm
- Feetech SCS0009 Rated Current : 300mA
Hardware Overview:
Applications:
Discover the Possibilities with AmazingHand! Check out our community demos to see more creative applications!
AmazingHand is designed to work with its companion open-source software, providing powerful features for teleoperation, data collection, and AI learning:
Teleoperation
AmazingHand supports multiple advanced teleoperation methods:
- Strain Gauge Glove Control: Wear a custom glove for real-time, immersive, one-to-one control of the robotic hand.
- Hand Posture Estimation Control: Use a standard camera to capture your hand's posture and directly map its movements to the robotic hand without any wearable devices.
Data Collection
The platform facilitates data collection for robotics research and AI training:
- Joint Angle Recording: Log precise angle data from each servo in real-time.
- Visual Data Capture: Synchronize and capture video feeds from a camera during operation.
- Task Demonstration Recording: Easily record complete task demonstrations for training AI models, such as in imitation learning.
Sensor Streaming
The system can stream servo data (e.g., position, load, temperature) to a host computer for:
- More intensive processing
- Data visualization
- System monitoring
Software & Community Support For detailed information on software setup and code implementation, please see our Wiki.,
Documentations:
- SCS0009 Servo Motor Datasheet
- Servo Adapyor Board for Seeed Studio XIAO Datasheet
- 3D Printed Parts Files
- NVIDIA® Jetson Orin™ Nano Super Developer Kit
Certifications:
- HSCODE : 9023009000
- USHSCODE : 9023000000
- UPC
- EUHSCODE : 9023001000
- COO : CHINA

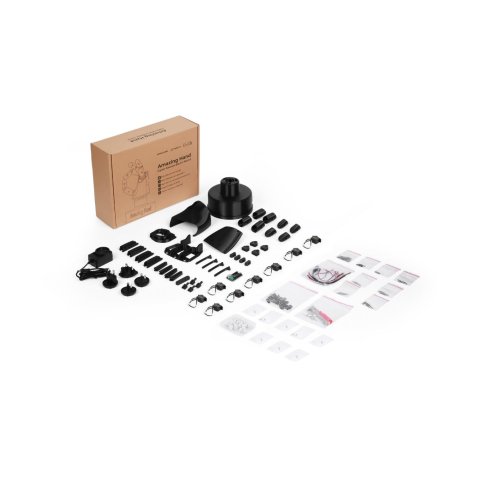

Package Includes:
Category Item Name / Description Specification / Note Qty
- Electronics PCBA Servo Driver Board Compatible with Seeed Studio XIAO 1
Feetech Servo Model: SCS0009 8
- Power Supply DC Power Adapter 12V 3A (5.5*2.5mm) 1
DC Power Pigtail Cable Female to Stripped Wire 1
- Data Breakout 3-Pin Header Breakout Board SCS-Y4-2012 8
3-Pin Cables 150mm 8
- Structure Amazing Hand Full Structural Kit Includes fingers, palm, wrist shells & frames (Black/ABS) 1 Set
Decorative Stickers Includes Logo & Model ID 1 Sheet
- Linkage Ball Linkage Rods M2*L19mm Black 16
Stainless Steel Pins D2*L10mm / D2*L16mm, etc. 1 Set
- Fasteners Assembly Screw Pack M2, M2.5 various sizes (spares included) 1 Pack
Lock Nuts / Washers M2-M4 sizes 1 Pack
- Tools / Acc. Phillips Screwdriver Red Handlem 1

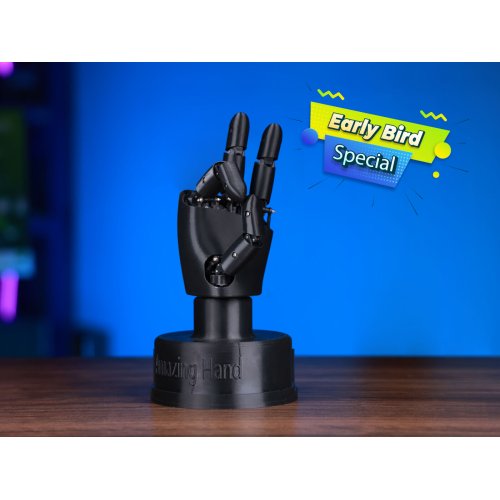

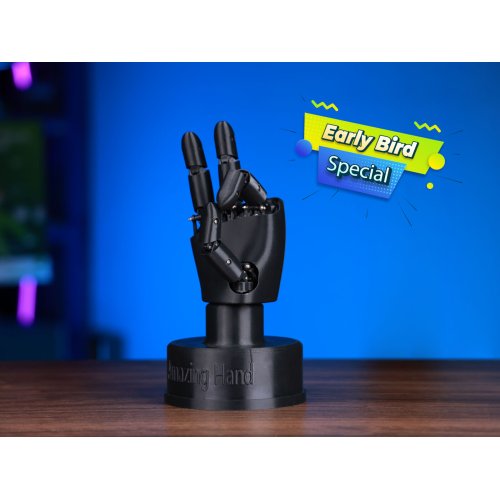

Amazing Hand The Open-Source Robotic Hand Developer Kit
- Brand: Seeed Studio
- Product Code: NR-Seeed-Amazing-Hand
- Reward Points: 119
- Availability: In Stock
-
रo 11,951.00
- Price in reward points: 11951
-
- 47 or more रo 11,884.00
- 95 or more रo 11,150.00
