LoNet 808 - Mini GSM&GPRS + GPS Breakout

Quad-band 850/900/1800/1900MHz
GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)
Integrated GPS/CNSS with A-GPS support
Built-in charging circuit for Lipo batteries
Low power consumption

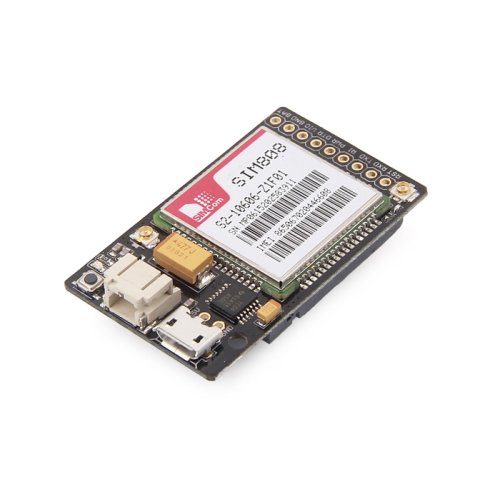

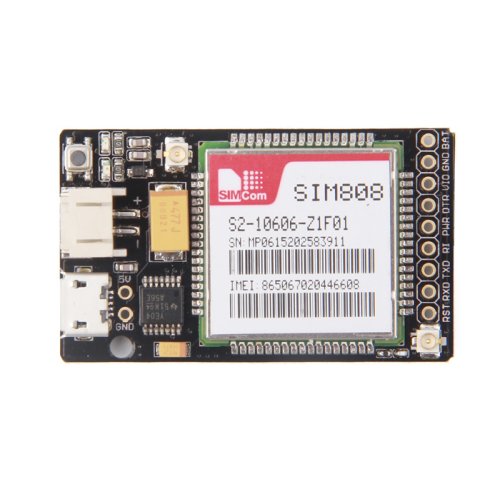

This board based on the latest SIMCOM SIM808 GSM/GPS module, it offers cellular GSM and GPRS data along with GPS technology for satellite navigation.

The board features ultra-low power consumption in sleep mode, giving the project incredibly long standby times. Furthermore there's an onboard battery charging circuit that can be used with LiPo batteries.

The GPS receiver is incredibly sensitive with 22 tracking and 66 acquisition channels, and also supports assisted-GPS (A-GPS) for indoor localisation.

The board is controlled by AT command via UART and supports 3.3V and 5V logical level. It comes with a mini GPS and GSM antenna, however a battery is optional.The board uses the 2G (not 3G or LTE) GSM networks.

Features

Quad-band 850/900/1800/1900MHz
GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)
GPRS mobile station class B
Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)
Supports charging control for Li-Ion battery
Supports Real Time Clock
Supply voltage range 3.4V ~ 4.4V
Integrated GPS/CNSS and supports A-GPS
Supports 3.0V to 5.0V logic level
Low power consumption, 1mA in sleep mode
Supports GPS NMEA protocol
Compact size 27mm x 46mm x 7mm

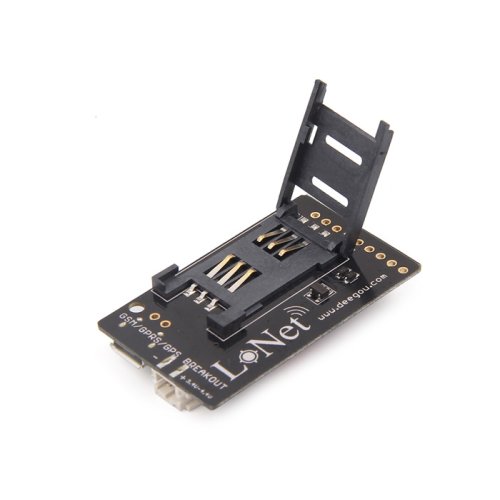

Standard SIM Card
Receiver channels: 22 tracking / 66 acquisition

Coarse/Acquisition code: GPS L1
Tracking sensitivity: -165dBm
Cold start time: 30s (typ.)
Hot start time: 1s (typ.)
Warm start time: 28s (typ.)
Horizontal position accuracy: < 2.5m CEP
Power consumption - Acquisition: 42mA
Power consumption - Continuous tracking: 24mA
Update rate: 5Hz
