Rockchip RK3588 64bit octa core ARM based SBC

RADXA´s latest generation SBC based on the Rockchip RK3588 in a compact form factor packed with a wide range of class-leading functionality, features and expansion options. They are available in various LPDDR4x RAM memory options (4, 8 and 16GB).

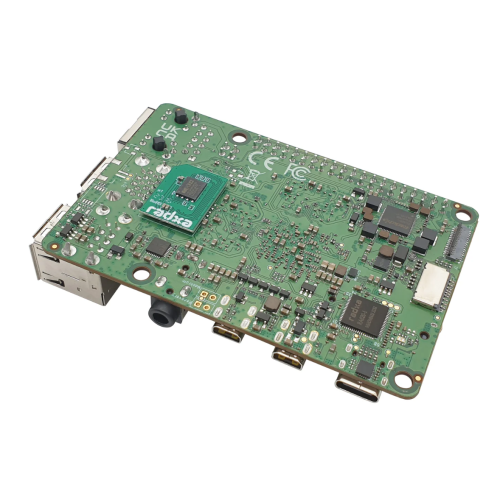

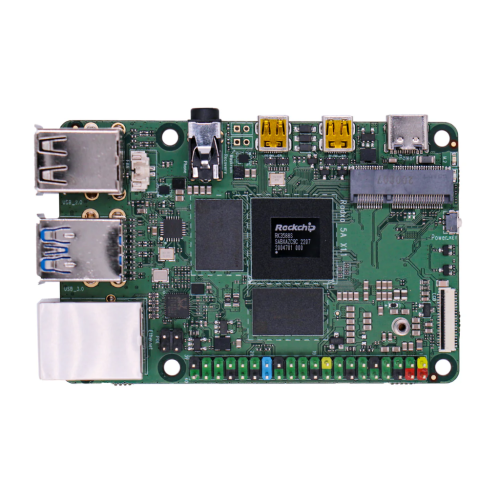

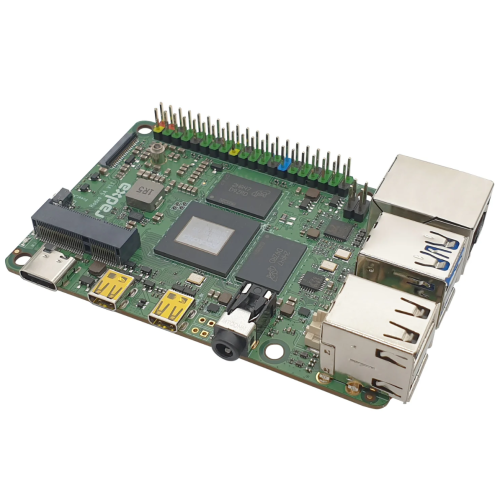

Rock5 Model A product details

RK3588S 64bit octa core processor

Quad Cortex®‑A76 @ 2.2~2.4GHz and a quad Cortex®‑A55 @ 1.8GHz based on Arm®
DynamIQ™ confguration

GPU

Arm Mali™ G610MC4 GPU supporting:

OpenGL® ES1.1, ES2.0, and ES3.2
OpenCL® 1.1, 1.2 and 2.2
Vulkan® 1.1 and 1.2
Embedded high performance 2D image acceleration module

NPU

Supporting INT4/INT8/INT16/FP16/BF16 and TF32 acceleration and computing
power is up to 6TOPs

Memory LPDDR4

64bits LPDDR4x RAM with 4, 8 or 16GB

SPI Flash

32MB SPI flash clicked on eMMC module socket /can be replaced with an eMMC module

Display HDMI and MIPI DSI

Triple display support via two HDMI, and one MIPI DSI
H.265/H.264/AV1/AVS2 multivideo decoder up to 8K@60fps
H.264/H.265 multivideo decoder up to 8K@30fps

Interfaces

1x USB Type‑C™ port for power supporting USB PD 2.0 and QC 2.0
1x Micro SD Card
2x micro HDMI output ports (1x up to 8Kp60, 1x up to 4Kp60 display resolution)
2x USB2 Type A HOST ports
1x USB3 Type A HOST port, 1x USB3 Type A OTG/HOST port
1x Gigabit Ethernet port (supports PoE with add‑on PoE HAT)
1x M.2 E Key with PCIe 2.1 one‑lane, SATA, USB 2.0 support
1x eMMC module connector for eMMC 5.1 support
1x Camera port (1x four‑lane MIPI CSI or 2x two‑lane MIPI CSI)
1x LCD Display port (four‑lane MIPI DSI)
Miscellaneous
1x PWM fan connector
1x Power button
1x Recovery pin, 1x Maskrom pin
1x Power LED, 1x User LED
40 pin 0.1” (2.54mm) header supporting a wide range of interface options:
Up to 5 x UART(2x with ﬂow control)
Up to 3 x SPI bus
Up to 6 x I2C bus
Up to 1 x PCM/I2S
Up to 2 x SPDIF
Up to 7 x PWM
Up to 1 x CAN
Up to 1 x ADC
Up to 27 x GPIO
2 x 5V DC power in/out
2 x 3.3V power out

Software

ArmV8 Instruction Set
Debian/Ubuntu Linux support
Android 12 support
OpenFyde OS(Chromium OS fork) support
RKNPU2 NPU software stack
Hardware access/control library for Linux/Android

USB 3.0 HOST x3

1x USB-C
2x USB-A

Network

LAN

1GbE LAN with PoE support

additional HAT is required for powering via PoE

WIFI

via optional WIFI module

Others

RTC battery connector for time backup
USB Type‑C™ PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A
Qualcomm® Quick Charge™ 2.0 QC 3.0/2.0 adapter, 9V/2A, 12V/2A
Power adapter with fixed voltage in 5.2V to 20V range on the USB Type‑C port
ROCK 5A has been designed to operate between 0°C to 50°C
Size 85mm x 56mm

Essentials You Need

ROCK5 Model A
PD 2.0 /QC (2.0/3.0) compliant or fixed voltage (5.2-20V) power adapter with USB- C port equal or larger than 24W (30W with M.2 SSD mounted)
Keyboard & Mouse
Monitor with HDMI input

Package Includes:
