ROCK 3C features a quad core Cortex-A55 ARM processor

32bit 3200Mb/s LPDDR4 and up to 4K@60 HDMI

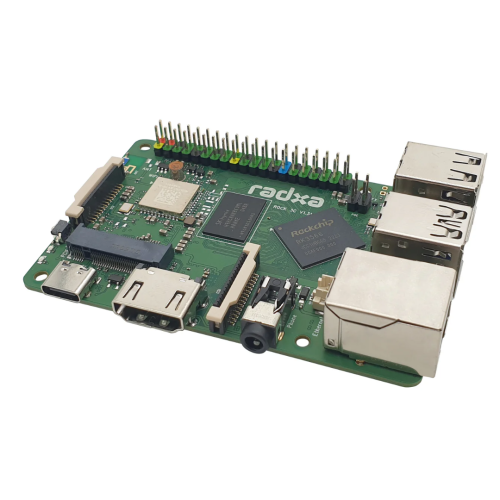

Rockchip RK3566 64bit quad core based SBC

With a small form-factor, various interfaces, outstanding design and performance it is the perfect entry level SBC for your personal or business oriented projects.

Rock3 Model C product details:

• RK3566 64bit quad core processor
• Quad-core Cortex-A55, frequency 1.6Ghz
• GPU
• Mali G52
• NPU
• 0.8TOPS NPU
• Memory LPDDR4
• LPDDR4@2112MT/s, 1/ 2/ 4/ 8GB variants
• Wifi/BT Antenna
• Wifi/BT with external antenna support (uFL)

Storage:

• eMMC module (optional)
• Optional industrial level high performance eMMC module, 16G/32G/64G/128G available (click on module bottom side)
• Micro SD card
• uSD card slot supports up to 128GB uSD card
• M.2 SSD
• M.2 (M) 2230 up to 1T M.2 NVME SSD

Display HDMI:

• HDMI 2.0 up to 4k*2k@60
• MIPI DSI 2 lanes via FPC connector
• HDMI and MIPI DSI can not work at the same time

Audio:

• Audio 3.5mm jack with mic with improved mechanics
• HD codec that supports up to 24-bit/96kHz audio

Camera:

• MIPI CSI 2 lanes via FPC connector, support up to 800 MP camera

Wireless:

• Wireless 802.11 ac
• WiFi 5 / Bluetooth 5

USB:

• USB 3.0 HOST x1
• USB 2.0 OTG port x1 (middle upper one)
• USB 2.0 HOST x2
• default - DEVICE, activate - HOST via serial command GPIO header

Ethernet:

• GbE LAN (with Power over Ethernet (PoE) support via additional PoE HAT)

IO 40-pin expansion header :

• 5 x UART
• 1 x SPI bus
• 2 x I2C bus
• 6 x PWM
• 1 x ADC
• 6 x GPIO
• 2 x 5V DC power in
• 1 x 3.3V power in

Others:

• RTC
• RTC battery connector for time backup (optional)
• Power button
• Dual pin PWM fan header (controller chip onboard)
• Power USB-C recommended 5V/3A (5V/5A is recommended when using with SSD)
• Size 85mm x 56mm

NOTE! Fits mechanically many of the existing Raspberry Pi 4 accessories

Essentials You Need:

• ROCK 3 Model C
• Power adapter with USB type C port equal or larger than (5V3A) 15W (or 5V5A - 25W with mounted SSD)
• MicroSD Card or eMMC module with eMMC-to-uSD adapter board
• Keyboard & Mouse
• Monitor with HDMI input
