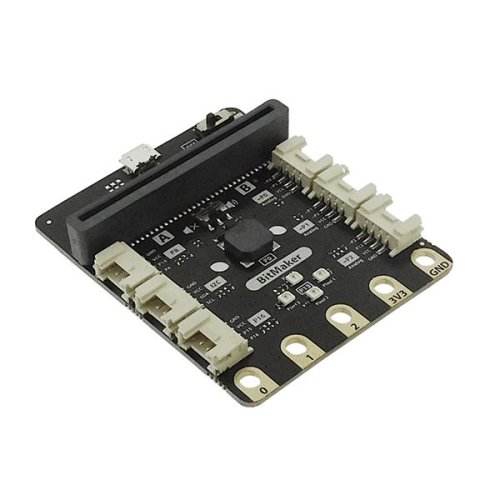

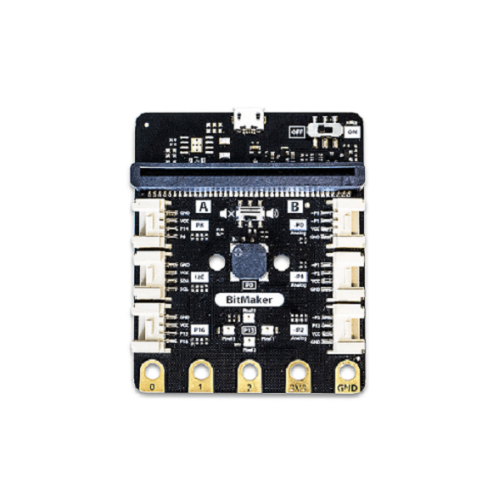

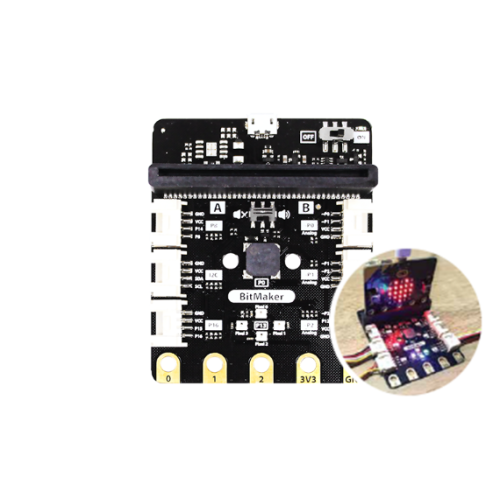

BitMaker is a credit card-sized extension board designed for connecting micro:bit with Grove One modules. It acts as a bridge for micro:bit and our Grove One system, which provides hundreds of different Grove One modules including sensors, actuators, communication modules, and displays, etc., which will broaden micro:bit’s ability in creating more projects easily and quickly.

The BitMaker not only has as many as 6 Grove ports for Grove modules, but it also integrates a buzzer and 4 neopixel RGB LEDs. The touchable pins P0, P1, and P2 are also reserved for connecting banana plugs or crocodile clips if you are a fan of making a fruit piano.

Features :

• Plug and play
• Built-in 4 addressable RGB LED and speaker for playing melody
• Up to 6 Grove ports (of which 1 I2C port)
• Overcurrent protection (rated at 1.5A)
• Reserves all touchable pins from micro:bit
• Fully support Microsoft Makecode and microPython

Package Includes:

• 1x BitMaker
• 1x User Guide
