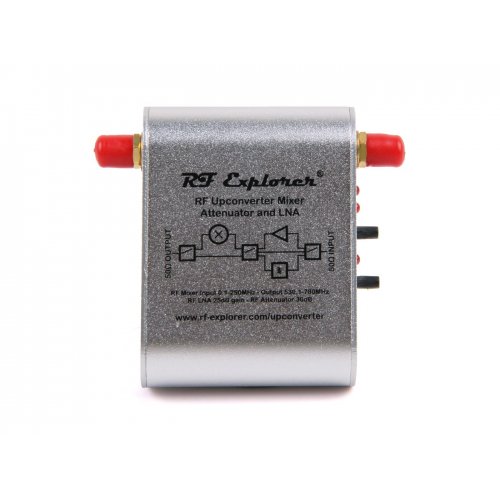

RF Explorer Upconverter is a high-performance RF frequency mixer to enable input frequency ranges from 100KHz to 250MHz in RF Explorer Spectrum Analyzer and other devices such as SDR and wideband radios.

Features:

• Internal LNA amplifier and selectable attenuator
• In Mixer mode convert frequencies from input 100KHz-250MHz up to 530.1-780MHz output
• In Bypass mode, it can work in frequencies from 50KHz to 4GHz including LNA and Attenuator

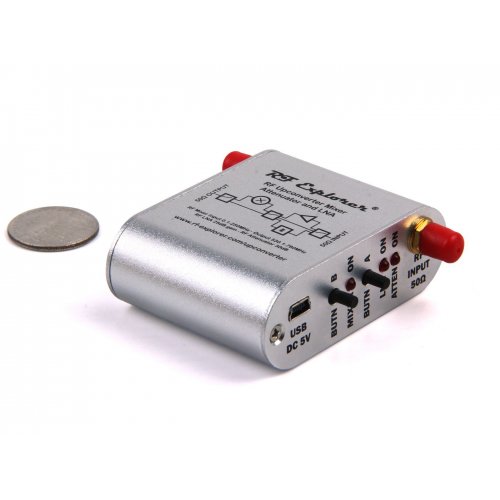

• Compact size and lightweight
• Solid aluminum metal case

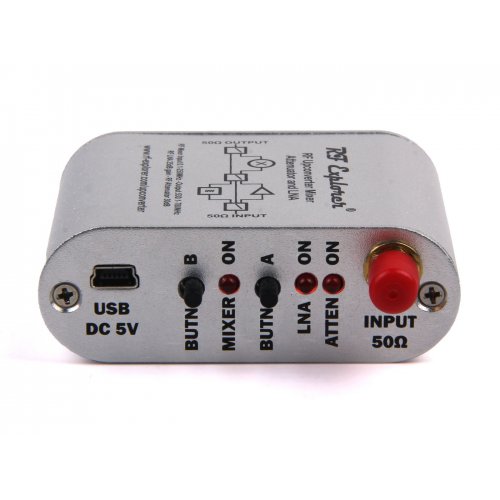

• The mini USB port is used for powering the unit DC 5V, easy connection to a PC, wall wart or even portable power bank battery.

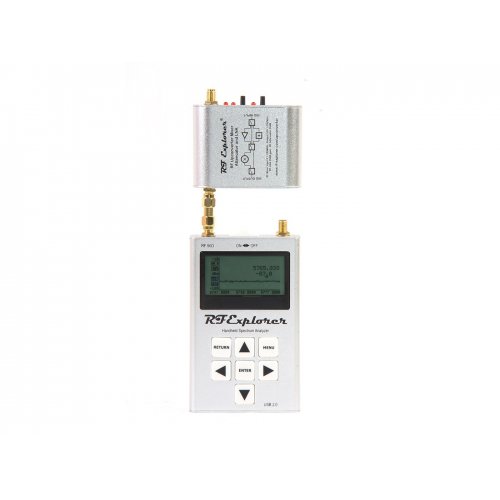

• Easy connection to RF Explorer with included RF adapter SNA Male-Male
• Ideal device to amplify weak signals using RF Explorer Near Field antennas
• CE / FCC / RoHS compliant

Specifications:

• Dimensions: 120mm x77mm x26mm
• Weight: G.W 95g
• Battery: Exclude
• Input Frequency band Mixer Mode: 0.1 – 250MHz
• Input Frequency band: Bypass Mode: 0 – 4GHz
• LNA Frequency band: 0 – 4GHz
• Attenuator Frequency band: 0 – 4GHz
• Internal selectable LNA: 25dB gain
• Internal selectable Attenuator: 30dB
• Connectors: Standard SMA 50 ohms RF connectors
• Absolute Max input power Bypass and Attenuator mode: +30dBm
• Absolute Max input power LNA mode: +5dBm
• Mixer stability and accuracy (typical): +-10ppm

Package Includes:

• 1 x RF Explorer Upconverter
• 1 x SMA Male-Male adapter
