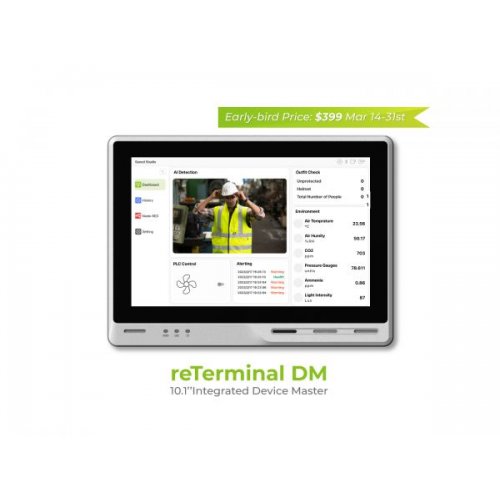

A 10.1" open-source industrial HMI - an Integrated Device Master to unify data flow and manage the onsite device.

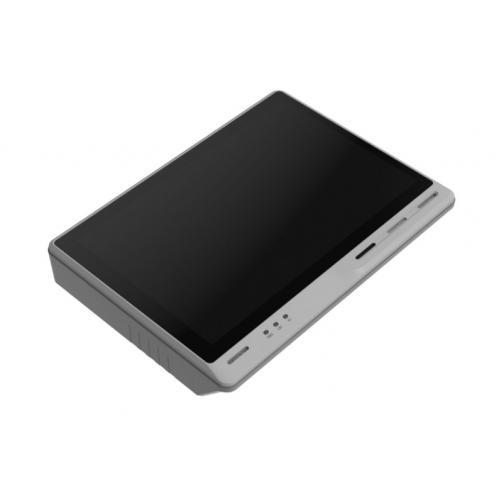

Based on Raspberry Pi CM4, and as a Panel PC, HMI, PLC, IIoT Gateway all-in-one device, reTerminal DM is a new generation of interactive sensing hub with an IP65 industrial-grade large screen.
It is equipped with rich scalability and hybrid connectivity, supporting CAN bus, RS485, RS232, Gigabit Ethernet port, and other interfaces, as well as powerful wireless communication capabilities such as 4G, LoRa®, WiFi, and BLE.

Features:

HMI, PLC, Panel PC and Gateway in one: Perfect for distributed hub device
Low code programming for event-driven applications: Natively integrated Node-RED for flow-based editing and one-click deploy, compatible with all software runs on Raspberry Pi
Rugged design for harsh working environment: IP65 front panel, -10~50°C Operating Temperature
Hybrid Connectivity: Support 5G, 4G LTE, LoRaWAN®, WiFi, BLE, RS485/RS232, CAN bus
Open-source design in software and hardware: Welcome customization or derivatives

Specifications:

Basic

CPU:
CM4
Quad-core Cortex-A72@ 1.5GHz
Memory:8GB
Storage:
32GB eMMC
M.2 SATA SSD Slot 2280-B Key(optional)
OS Support:
Raspbian
SenseCraft Edge OS

Power:

Input: 2-pin Terminal Block
PoE: 12W PoE(optional)
Power Range: 12~36V DC
Power Consumption
Power Switch: NO

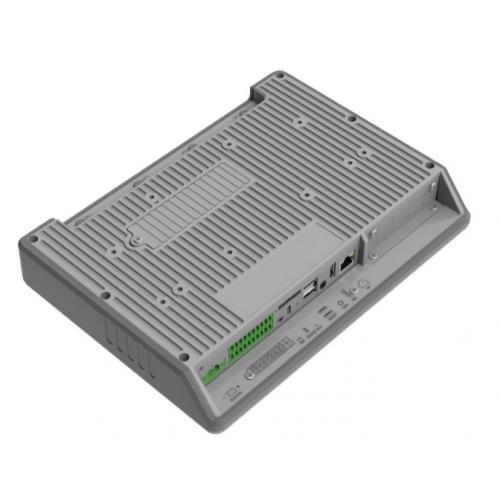

Interfaces:

Ethernet:
10/100/1000 Mbps x1
10/100/1000 Mbps(optional) x1
USB: USB-A 2.0 Host x1
RS485:
RS-485>Terminal Block x1
RS-485>DB9
(optional) x1
RS232:
RS-232 >Terminal Block x1
RS-232 > DB9
(optional) x1
CAN: CAN bus >Terminal Block x1
DI: DI >Terminal Block x4
DO: DO>Terminal Block x1

40pin GPIO: inside

Display:

Size: 10.1''
Max. Resolution: 1280 x 800
Max. Colors: 16.7M (8-bit)
Luminance (nit): 400
Viewing Angle (H/V°): 170/170
Backlight Life (hrs): 30000
Touch Type: 10-point Capacitive
Pencil Hardness: 7H

Video&Audio:

Video HDMI2.0
Audio:
Microphone x 2
Buzzer
3.5mm Audio Jack
Camera: CSI(optional)

Wireless Communication:

WiFi: On-chip WiFi
BLE: On-chip BLE
Zigbee:
LoRa® Mini-PCIe for LoRaWAN®(optional)
Cellular Mini-PCIe for 4G/5G(optional)

Environment:

Ingress Protection: IP65 Front Panel
Operating Temperature: -10~50 °C
Storage Temperature: -20~70 °C
Humidity (Operating): 10~95% RH

Mechanical:

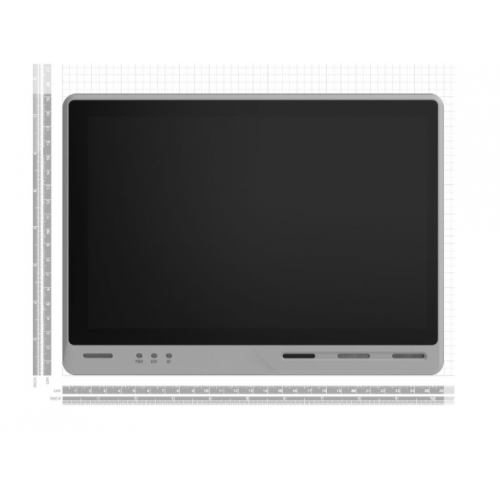

Dimension (W x H x D): 253.5x189.3x42 mm
Enclosure: Die-cast aluminum alloy

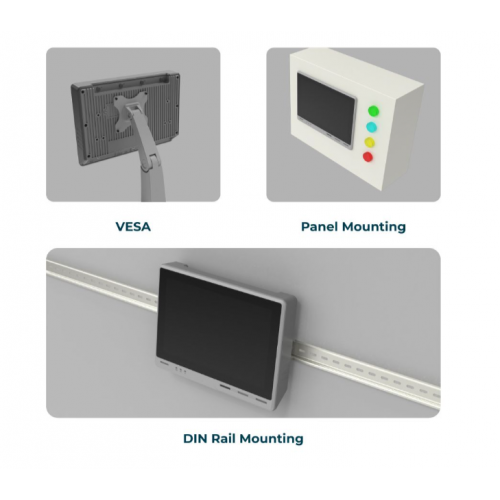

Mounting: Panel, VESA, Din-Rail
Weight (Net): 1.5~2Kg

Other:

Watch Dog:
RTC: High Accuracy RTC
Security: ATECC608A
Warranty: 2 years
EMC
ESD
Heat dissipation: Fanless

Certification:

CE
FCC
RoHS
TELEC
REACH

The LoRa® Mark is a trademark of Semtech Corporation or its subsidiaries. LoRaWAN® is a mark used under license from the LoRa Alliance®.

Application

reTerminal DM works as an integrated device master to unify data flow and manage onsite devices, reducing the big gap between legacy systems and modern IT infrastructures in various application scenarios.

Your Trustworthy Provider of Raspberry Pi Customization Service

With decades of ODM & OEM experience and in-depth understanding of popular open-source hardware, we promise you professional and flexible customization service for our existing Pi devices and your creative Pi-based idea.

reTerminal DM Customization possibilities - PCIe Extensions: NVME SSD, Dual 1000M Ethernet, COM Port RS485/RS232, Dual USB 3.0
