SMD stands for Surface Mounted Device. An SMD is any electronic component that is made to use with SMT, or Surface Mount Technology. SMT was developed to meet the ongoing desire for printed circuit board manufacture to use smaller components and be faster, more efficient, and cheaper.
Power ratings:
To find out the approximative power ratings of your SMD resistor, measure it's length and width. A few commonly used package dimensions with the corresponding typical power ratings are presented in the below. Use this table as a guide only and always consult the component's datasheet for exact value.
| Package Type | Size in inches |
Size in mm
|
Power rating |
| 0201 | 0.024" x 0.012" |
0.6mm x 0.3mm
|
1/20W |
| 0402 | 0.04" x 0.02" | 1.0mm x 0.5mm | 1/32W 1/16W |
| 0603 | 0.063" x 0.031" |
1.6mm x 0.8mm
|
1/16W |
| 0805 | 0.08" x 0.05" |
2.0mm x 1.25mm
|
1/10W |
| 1206 | 0.126" x 0.063" | 3.2mm x 1.6mm | 1/8W |
| 1210 | 0.12" x 0.10" | 3.2mm x 2.6mm | 1/4W |
| 2020 | 0.20" x 0.20" |
5.08mm x 5.08mm
|
1/2W |
| 2512 | 0.25" x 0.12" | 6.35mm x 3.0mm | 1W |
Package Includes:

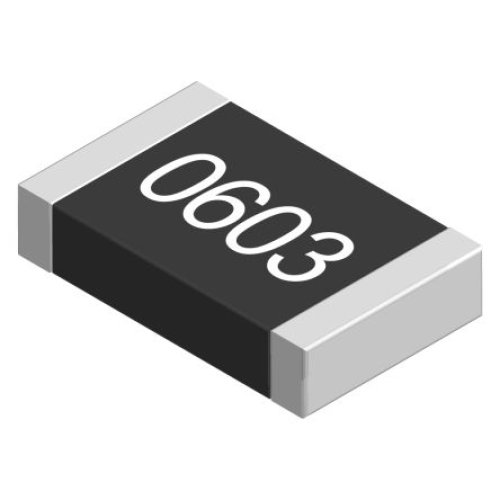

- 1 x Resistors - SMD/SMT - 0603
Resistor - SMD/SMT - 0603
- Product Code:PRC-Resistors-SMD-0603
- Availability:Out Of Stock
-
रo 0.30
- Ex Tax:रo 0.25
- Price in reward points:1
