The RPi Relay Board gives your Pi the ability to control high voltage/high current devices, easily makes normal home appliances become intelligent.
Features:
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- High quality relays, loads up to 5A 250V AC or 5A 30V DC
- Photo coupling isolation, prevent interference from high voltage circuit
- Onboard LEDs for indicating relays status
- Relay control jumper, allows to control the relays by custom pins other than the default pins
- Comes with development resources, including examples in wiringPi, WebioPi, shell, python, and bcm2835
Documents:
Package Includes:
- 1 x RPi Relay Board
- 1 x RPi screws pack (2pcs)

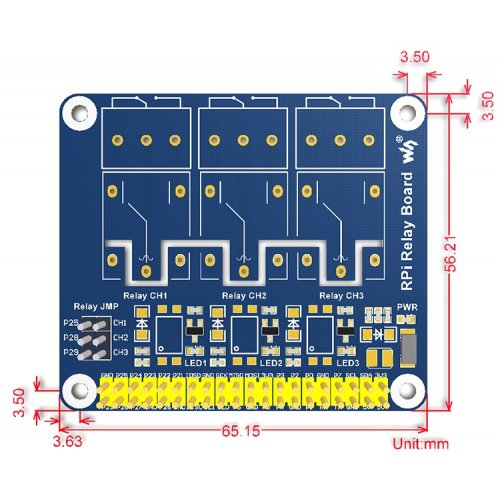

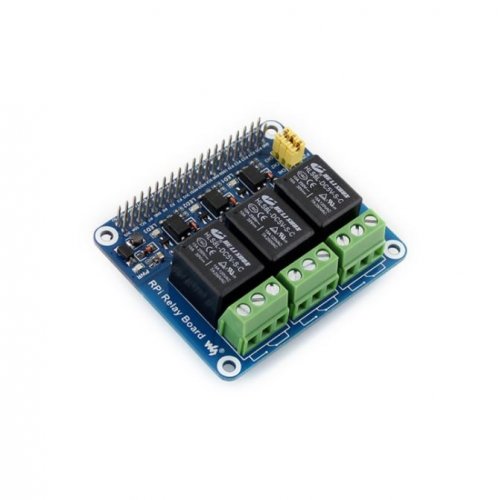

Waveshare 11638 RPi Relay Board
- Brand: Waveshare Electronics
- Product Code:WaveS-RPi-Relay-Board
- Reward Points:12
- Availability:In Stock
- रo 1,421.90
-
रo 1,197.70
- Ex Tax:रo 1,015.00
- Price in reward points:1205
-
- 10 or more रo 1,309.80
- 25 or more रo 1,298.00
- 50 or more रo 1,250.80
- 70 or more रo 1,239.00
- 100 or more रo 1,215.40
- 140 or more रo 1,209.50
