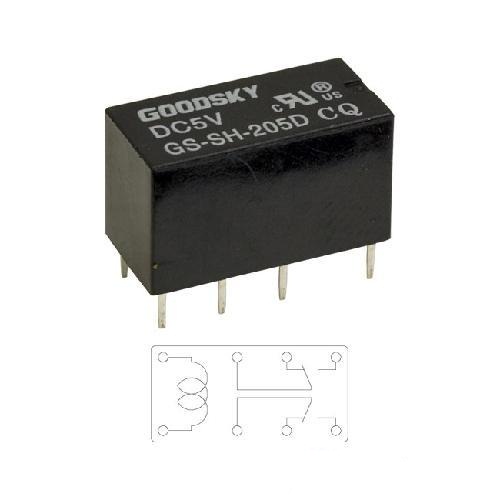

The Dual-in Line relay is designed to offer a completelydust and water-proof package with bifurcated and crossbar contacts for assuring high reliability in applications like Telecommunication, domestic appliances, office machine, audio equipment, Remote Control, etc

Features:

92/8 gold silver alloy on silver palladium contact type is suitable for low level switching application.
Small size and light weight can provide high density P.C. Board mounting.
2.54gmm Terminal Pitch.
Low Coil Power Consumption of GS-T Type and high Coil Power Consumption of GS-D type are available to meet user’s selection.
Employment of suitable plastic materials to be applied to high temperature and various chemical solution.
Plastic epoxy resin sealed type for washing procedure.

Specifications:

Contact Resistance : 100mΩ[email protected],6VDC
Operate Time : GS-D (6 mSec. Max), GS-T (8 mSec. Max)
Release Time : 4 mSec. Max.
Dielectric Strength :Between Coil & Contact, 1,000VAC at 50/60 Hz for one minute.
Surge Strength :1,500V (between coil & contact 1.2x50μSec.)
Insulation Resistance : 100 MegaΩ Min. at 500VDC.
Max. On/Off Switching : Electrical 30Cycles per Minute , Mechanical 300 Cycles per Minute.
Temperature Range : -30 - 80°C
Humidity Range ; 45 - 85% RH.
Coil Temperature Rise: 25°C Max. (D Type), 20°C Max. (T Type)
Vibration : Endurance 10 to 55 Hz dual amplitude width 1.5mm, Error Operation 10 to 55 Hz dual amplitude width 1.5mm.
Shock: Endurance 1,000 m/S2 , Error Operation 100 m/S2 .
Life Expectancy: Mechanical 100,000,000 Operations at No Load condition, Electrical 1,000,000 Operations at Rated Resistive Load.
Weight : About 4.8 g.
