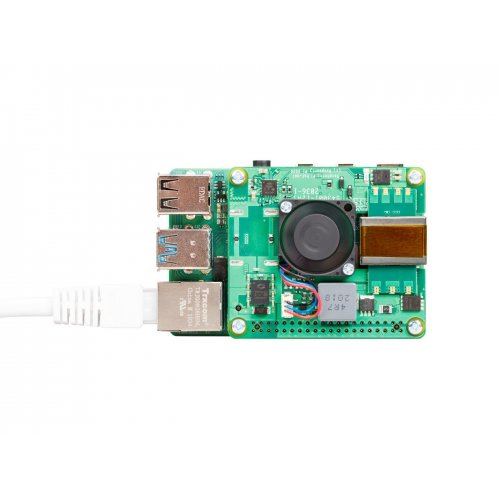

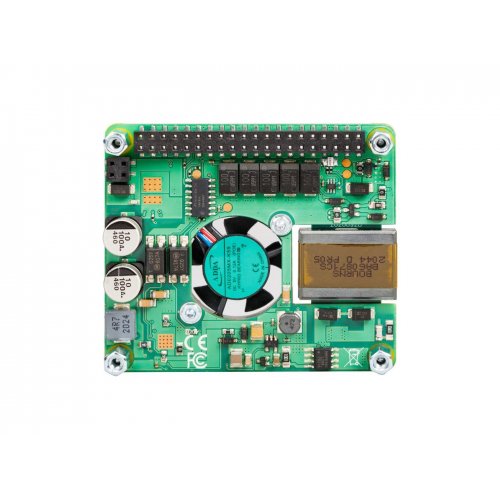

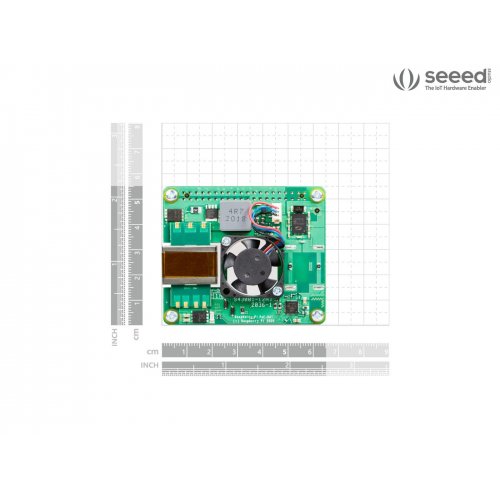

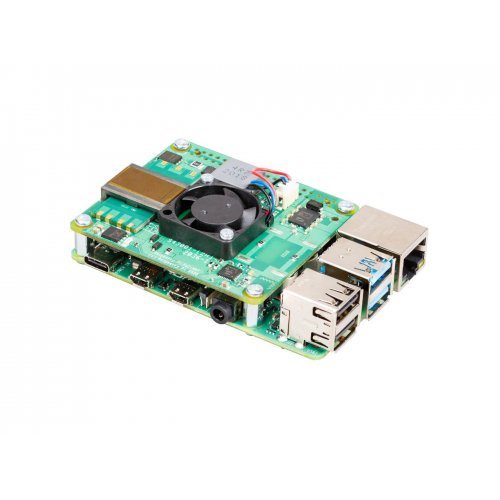

The Raspberry Pi PoE+ HAT is an add-on board for Raspberry Pi computers with PoE pins, including Raspberry Pi 3B+ and Raspberry Pi 4. It is used to power Raspberry Pi via an Ethernet cable, provided that power-sourcing equipment is installed on the Ethernet network. It supports 802.3at PoE standard with high output power of 5V DC/4A and the built-in controllable brushless fan can deliver 2.2 CFM to cool the Raspberry Pi processor. It also features a fully isolated switched-mode power supply for better power efficiency.

Features:

• Supports 802.3at PoE standard with a high output power of 5V DC/4A
• Built-in controllable brushless fan delivering 2.2 CFM for better heat dissipation
• Fully isolated switched-mode power supply for better power efficiency
• Compatible with Raspberry Pi 4B/3B+

Specifications:

• Standard: IEEE 802.3at-2003 PoE
• Input voltage: 37–57 V DC, Class 4 device
• Output power: 5V DC/ 4A
• Cooling: 25 mm × 25 mm brushless fan delivering 2.2 CFM for processor cooling
• Features:
• Fully isolated switched-mode power supply
• Fan control
• Operating temperature: 0 °C to +50 °C
• Production lifetime: The Raspberry Pi PoE+ HAT will remain in production until at least January 2027
• Compliance: For a full list of local and regional product approvals, please visit www.raspberrypi.org/compliance

Documents:

• Product Brief

Warranty: 12 months

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

• 1 x Raspberry Pi PoE+ HAT for Raspberry Pi 4B/3B+
