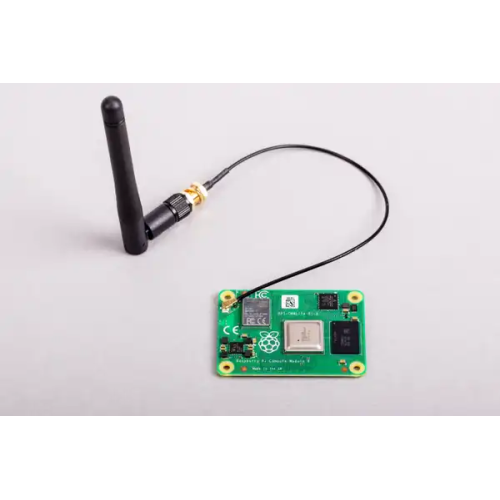

This Antenna Kit is certified for use with the Raspberry Pi Compute Module 4. If a different antenna is used, then separate certification will be required, and this must be arranged by the end-product design engineer.
Features:
- Supports Raspberry Pi Compute Module 4 (wireless supported variants)
- 2400-2500/5100-5800 MHz frequency range with 100–700MHz bandwidth
- Vertical polarization with 50-ohm impedance
- Shell made of ABS
Specifications:
Antenna
|
| SMA to MHF1 cable |
| Frequency range | 0–6GHz |
| Impedance | 50 ohm |
| VSWR | ≤ 1.4 |
| Maximum power | 10W |
| Connector (to antenna) | SMA (male) |
| Connector (to CM4) | MHF1 |
| Dimensions | 205 mm × 1.37 mm (cable diameter) |
| Shell material | ABS |
| Operating temperature | -45 to +80°C |
Package Includes:
- 1 x Raspberry Pi Compute Module 4 Antenna kit
Raspberry Pi Compute Module 4 Antenna Kit
- Brand: Raspberry Pi foundation
- Product Code:SP-Antenna-kit
- Reward Points:6
- Availability:Out Of Stock
-
रo 745.76
- Ex Tax:रo 632.00
- Price in reward points:632
