Product Description:

WisBlock Kit 4 Measures the air quality index, temperature, humidity, and barometric air pressure with the BOSCH BME680 environment sensor.

Acquired data is sent frequently to a LoRaWan server.

Application:

• WisBlock Kit 4 is used to track and monitor the air quality of the environment around you.
• WisBlock Kit 4 is used to measure air quality index, temperature, humidity, and barometric pressure. Ensure that the air quality around you is conducive for your respective industry! This kit can also transmit the acquired air quality to a LoRaWAN® server frequently.
• WisBlock Kit 4 uses a sturdy enclosure that helps it withstand weather complications without a hitch.

Key Features:

RAK19007

• Easy Plug'n'Play slots for WisBlock Core MCU, WisBlock Sensor, and other WisBlock modules
• Small form factor
• Supports 3 different power supply sources
• Optimized for low power consumption applications
• I2C, UART, GPIO's an analog input accessible with solder contacts
• 2 user-definable LED's
• Reset button
• USB debug port
• 1 slot for WisBlock Core MCU
• 4 slots for WisBlock Sensor sensor modules
• 1 slot for another WisBlock extension modules

RAK4631

• LoRaWan 1.0.2 protocol stack (supports Class A & C)
• Bluetooth Low Energy 5.0 protocol stack
• Nordic nRF52840
• Wide range of connections
• Semtech SX1262

RAK1906

• Using the Bosch BME680 environment sensor
• Low power consumption
• Small form factor
• Temperature range: -40°C to +85°C
• Humidity range: 0% to 100%
• Pressure range: 300 to1100 hPa
• Gas sensor response time < 1s
• Gas sensor direct output of IAQ: Index for Air Quality

Software Example Code

• WisBlock Kit 4 | Air Quality Monitor

Documentation:

• RAK5005-O Datasheet
• RAK4631 Datasheet
• RAK1906 Datasheet
• Assembly Instructions

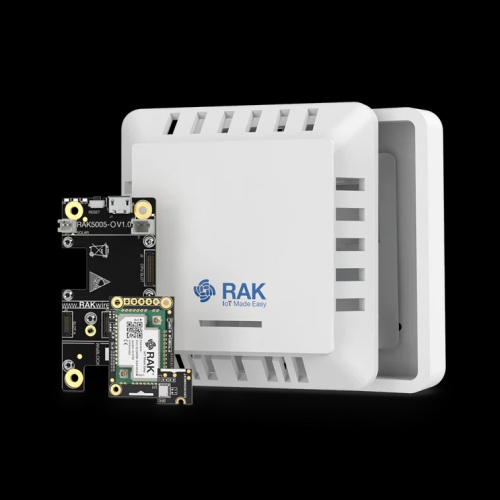

Package Includes:

• 1 x RAK5005-O
• 1 x RAK4631
• 1 x RAK1906
• 1 x RAKBox-B3
• 1 x LoRa Antenna
• 1 x BLE Antenna
