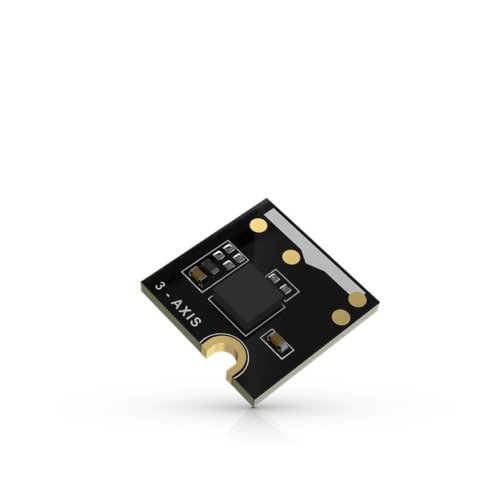

RAK1904 is a WisBlock Sensor which extends the WisBlock system with an acceleration sensor. A ready to use SW library and tutorial makes it easy to build up motion data acquisition system.
RAK1904's scale from ±2g to ±16g can be adjusted to the requirements of your application. Depending on the application the data rates can be adjusted from 1Hz to 5.3kHz.
RAK1904 combined with the RAK4631 WisBlock Core is ready to go system for a motion tracking system, detecting and monitor vibrations in rotating machinery or even to monitor active volcanoes. The acquired data can be send using LoRaWan® communication, LoRa point to point connections and BLE.
RAK1904 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows to power down the module complete to reduce the power consumption of the system even more.
RAK1904 acceleration sensor can be joined with other WisBlock sensors like a GPS module to create an inertial navigation system.
Features:
- Using the ST LIS3DH acceleration sensor
- Low power consumption
- Small form factor
- User-selectable scales of ±2g/±4g/±8g/±16g
- Data acquisition rates from 1Hz to 5.3kHz.
- Internal buffer for 32 levels of 16-bit data
Documents:
Package Includes:
- 1 x WisBlock 3-axis acceleration sensor
WisBlock 3-axis acceleration Sensor
- Brand: Rakwireless
- Product Code:RAK-WisBlock-Acceleration
- Reward Points:5
- Availability:In Stock
-
रo 579.38
- Ex Tax:रo 491.00
- Price in reward points:491
-
- 30 or more रo 574.66
- 60 or more रo 569.94
- 150 or more रo 565.22
- 300 or more रo 560.50
