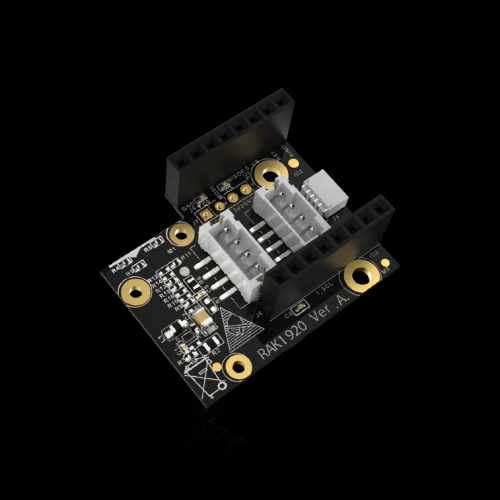

RAK1920 is a WisBlock Interface which extends the WisBlock system with the option to connect sensor breakouts from MikroElektronika, Sparkfun and SeeedStudio to WisBlock.

• RAK1920 is the interface to all Click! boards of MikroElektronika. Its second connector supports all 3.3V modules of Sparkfun with the QWIIC connector. And it has two Grove-compatible connectors. The ­first connector is for all I2C and digital IO Grove sensors from SeeedStudio, the second one supports UART and analog Grove sensors.
• RAK1920 combined with the RAK4631 WisBlock Core gives your solution an interface to standard sensors of MikroElektronika, Sparkfun, and SeeedStudio. This interface is the bridge between such sensors and LoRaWan® communication, LoRa® point to point connections, or BLE.
• RAK1920 is ideal for battery-powered applications because the WisBlock system allows to power down the module completely to reduce the power consumption of the system even more.

Features:

• Sensor adapter board to connect Click!, QWICC based, and Grove-based sensors to WisBlock.

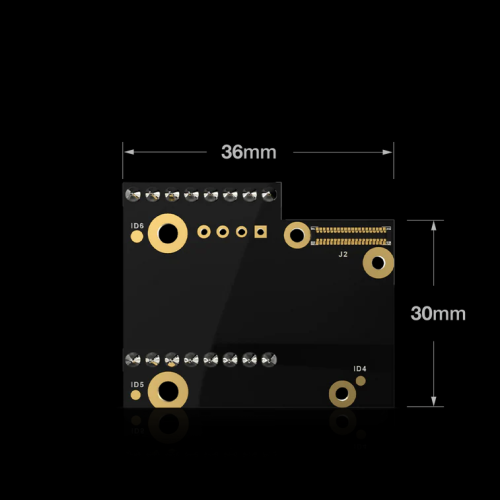

• Small form factor
• 1 Click! compatible slot
• 2 Grove compatible connectors
• 1 QWIIC compatible connector
• 3V and 5V sensor support
• PTC thermistor to prevent output power overload

Documentation:

• RAK1920 Quick Start Guide
• Datasheet
• WisBlock Quick Start Guide
• WisBlock IO Tutorial

Examples:

• For All WisBlock Core Modules:
• Sample Code: RAK1920 Grove Digital
• Sample Code: RAK1920 Grove I2C
• Sample Code: RAK1920 MikroBus
• Sample Code: RAK1920 QWIIC

Package Includes:

• 1 x RAK1920 WisBlock Sensor Adapter
