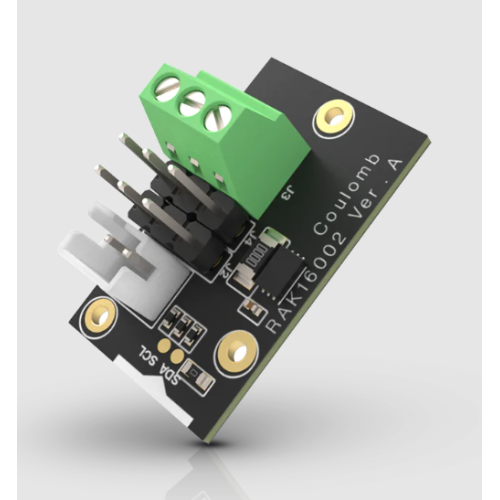

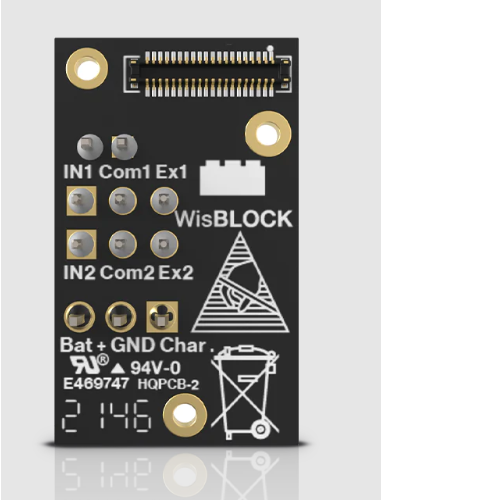

The RAK16002 is a coulomb sensor based on the Analog Devices LTC2941. It measures battery charge state in battery-supplied handheld PC and portable product applications. Its operating range is perfectly suited for single-cell Li-Ion batteries. A precision coulomb counter integrates current through a sense resistor between the battery’s positive terminal and the load or charger.
Keep track of the battery status in your mobile application for LoRaWAN or systems applied in remote areas.
- Based on Analog Devices LTC2941
- Indicates Accumulated Battery Charge and Discharge
- ±1A Sense Current Range
- I2C interface
- High Accuracy Analog Integration
- 1% Charge Accuracy
- Configurable Alert Output/Charge Complete Input
- 2.7V to 5.5V Operating Range
- Quiescent Current Less than 100μA
- Operating Temperature: -40° C ~ 85° C
- Size: 15x25mm
- RAK16002 Quick Start Guide
- Datasheet
- WisBlock Quick Start Guide
- WisBlock Source Code Repository
- WisBlock IO Tutorial
Package Includes :
- 1 x RAK16002 WisBlock Coulomb Sensor Analog Devices LTC2941
RAK16002 WisBlock Coulomb Sensor Analog Devices LTC2941
- Brand: Rakwireless
- Product Code:NR-RAK-Coulomb-Sensor-LTC2941
- Reward Points:10
- Availability:In Stock
-
रo 1,209.50
- Ex Tax:रo 1,025.00
- Price in reward points:1025
-
- 15 or more रo 1,203.60
- 30 or more रo 1,191.80
- 70 or more रo 1,185.90
- 145 or more रo 1,174.10
