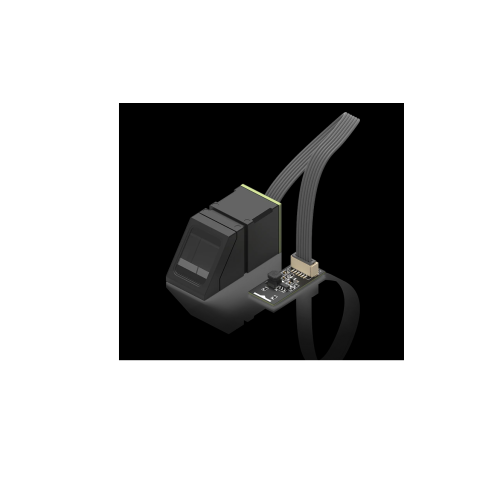

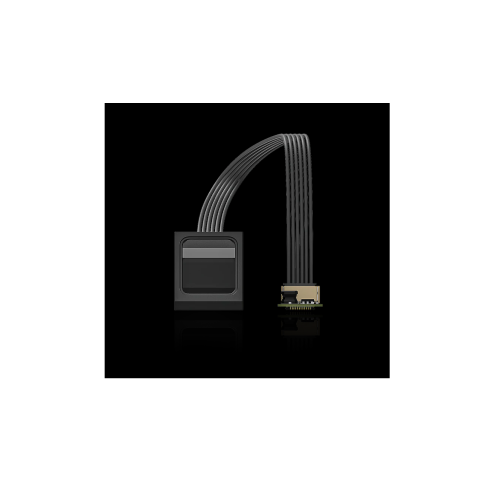

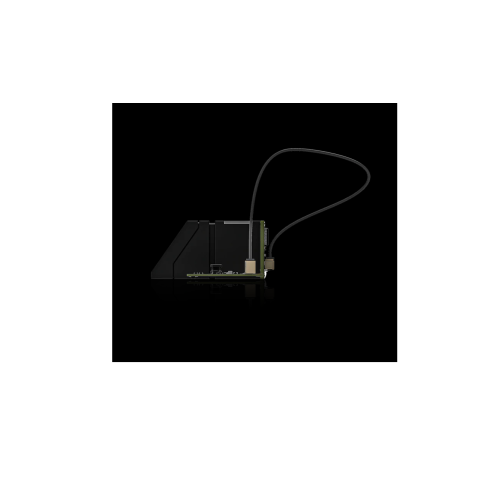

The RAK12001 WisBlock Fingerprint Sensor Module is based on GROW R307. This module supports both fingerprint enrollment and fingerprint matching. When enrolling, you need to enter the finger two times. The system will process the fingerprint images, generate a template of the finger based on processing results and store the template. When matching, the sensor will determine if the finger placed in its optical sensor has a match on its memory.

Features:

• Fingerprint Sensor Module
• Interface: UART
• 3.3 V Power supply (with built-in 5 V boost converter)
• Window dimension: 19 mm x 21 mm
• Character file size: 256 bytes
• Scanning speed: < 0.3 second
• Verification speed: < 0.2 second

Documentation:

• RAK12001 Quick Start Guide
• Datasheet
• WisBlock Quick Start Guide
• WisBlock Source Code Repository
• WisBlock Sensor Tutorial

Tutorials:

• WisBlock Starter Kit and RAK Edge Gateway Complete LoRaWAN Guide
• Installation of Board Support Package in Arduino IDE
• The Icing on the Cake: A Template to Innovate Custom IoT Applications with RAKwireless and Datacake

Package Includes:

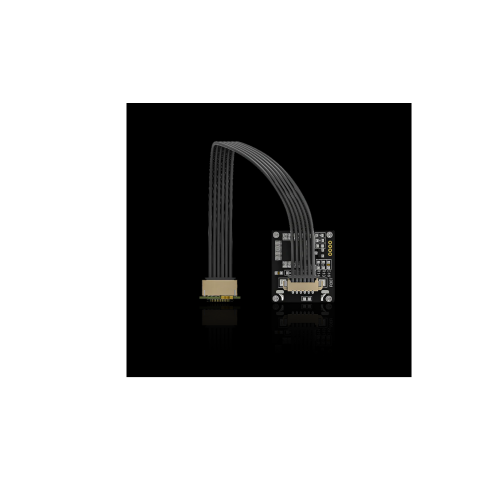

• 1 x RAK12001
• 1 x Module-Fingerprint-R307
• 1 x Rectangular Cable
