The RAK4260 LPWAN Module is based on Microchip's ATSAMR34J18B. It is a SiP device integrating a 32-bit ARM Cortex -M0+ MCU with a LoRa Transceiver in a compact surface mount package.

The SAMR chip provides a number of highly configurable peripherals (configurable as I2C/SPI/UART interfaces). There are 12-bit ADC in addition to the aforementioned.

RAK4260 Breakout Board is specifically designed to allow easy excess to the pins on the module in order to simplify development and testing. The breakout board utilized is of an Xbee form factor and its main purpose is to allow the RAK4260 stamp module form factor pinout to be transferred to 2.54mm headers. This makes it more convenient for the developer to debug their solution.

The module itself has the RAK4260 at its core, which is a module that utilizes the ATSAMR34J18B SIP. This high level of integration allows for outstanding performance: 860nA in sleep mode and LoRa® TX Power of up to 20dBm.

A notable addition to this Breakout module is the ATECC608A Cryptographic co-processor with secure hardware-based key storage. This is what makes this module different (compared to the RAK4200 and RAK4600), adding another level of security in order to future proof your platform.

The module complies with LoRaWAN® 1.0.2 protocols. It also supports Lora® Point to Point communication.

The low power, long-range LoRa® communication capabilities of the module make it suitable for a variety of applications in the IoT field such as home automation, sensor networks, building automation, personal area networks applications (health/fitness sensors and monitors, etc.).

Features:

LoRa module for Smart City, Smart Agriculture, Smart Industry I/O ports:
I/O ports: UART/I2C/SPI/ADC
Frequency range: 863 to 923 MHz (entire LoRa® high band spectrum)
Low-Power Wireless Systems with 7.8kHz to 500KHz Bandwidth
LoRa Tx power up to 20dBm
Ultra-Low Power Consumption 860nA in sleep mode
Core: ARM 32-bit Cortex M0+ with MPU
Up to 256KB flash memory with ECC
32KB RAM
6KB of data EEPROM with ECC
ATECC608A cryptographic core
Supply voltage: 2.0 ~ 3.6V
Temperature range: -40°C to +85°C

Package Includes:

1 x Board
1 x LoRa Antenna (with RP-SMA female connector)
24 x Dupont Lines

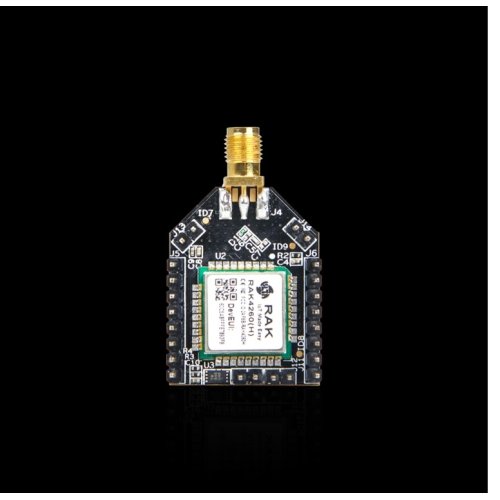

RAK4260 Breakout Board

Brand: Rakwireless
Product Code:RAK-RAK4260-Breakout
Reward Points:30
Availability:In Stock

रo 3,511.68
Ex Tax:रo 2,976.00
Price in reward points:2976
5 or more रo 3,483.36
10 or more रo 3,455.04
25 or more रo 3,426.72
50 or more रo 3,398.40

Available Options

Frequency

17) IN865

Qty

0 reviews / Write a review
