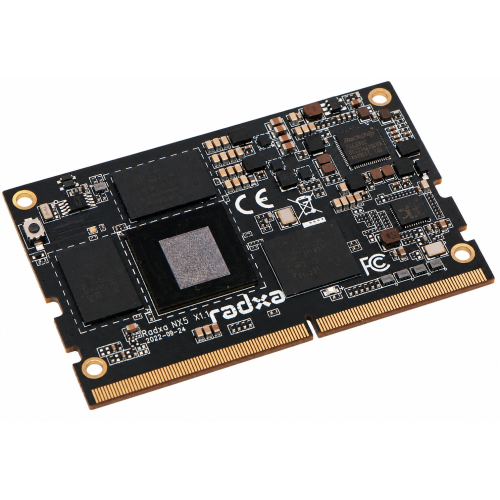

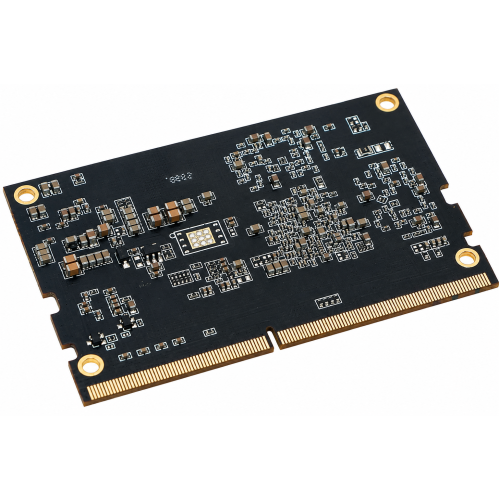

Radxa´s NX5 is an advanced SoM (System on Module)

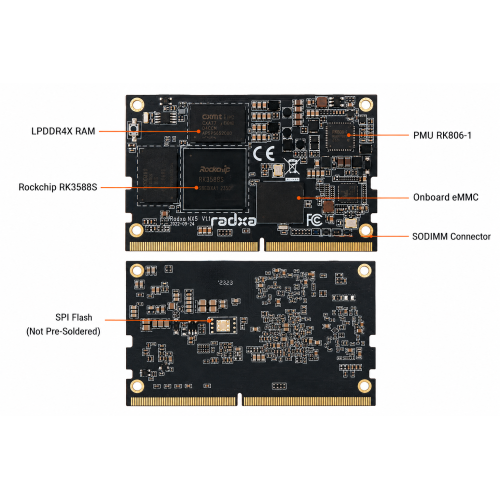

Built around the Rockchip RK3588S SoC in a SODIMM form factor (70x45mm), integrates CPU/GPU/NPU/PMU/DRAM/ eMMC storage or SPI Nor Flash.

Radxa´s NX5 SoM offers an out of the box, cost-effective solution for countless applications. It as well simplifies and accelerates new product developments.

Overview of features:

• Quad core 64 bit High Performance Solution
• Radxa NX5 is powered by the Rockchip RK3588S SoC, a 64bit Quad Cortex A55 low power core with up to 1.6Ghz. It comes with a maximum of 8GB RAM and up to 512GB eMMC storage.

Detailed technical specifications:

• Processor:
• Rockchip RK3588S, Quad Cortex®-A76 @2.2~2.4GHz and Quad Cortex®-A55 @1.8GHz (ARM v8) based on Arm® DynamIQ™ configuration
• GPU:
• Arm Mali™ G610MP4 GPU ‑ OpenGL® ES1.1, ES2.0, and ES3.2 ‑ OpenCL® 1.1, 1.2 and 2.2 ‑ Vulkan® 1.1 and 1.2 ‑ Embedded high performance 2D image acceleration module
• NPU:
• NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration and computing power is up to 6TOPs
• Memory:
• 1GB, 2GB, 4GB, 8GB or 16GB LPDDR4X (depending on variant)
• Storage:
• Optional 4GB / 8GB / 16GB / 32GB, up to 512GB Onboard eMMC, compatible with eMMC 5.1
• Supports SDMMC interface for data storage and OS booting using SD cards
• Multimedia:
• VP9 / H.265 / AVS2 decode 8K@60fps
• H.264 / H.265 encode 8K@30fps
• Ethernet:
• 1 x Onboard Gigabit Ethernet PHY
• Display:
• 1x HDMI TX up to 8K@60hz・ 1x eDP TX up to 4K@60Hz
• 1x DP TX (and USB3.0 Combo) up to 8K@30Hz
• 1x 2‑lane MIPI D/C‑PHY TX
• Camera:
• 2x 2‑lane or 1 x 4‑lane MIPI CSI for Camera
• 1x 2‑lane MIPI D/C‑PHY RX
• 1x 4‑lane MIPI D/C‑PHY RX
• Audio:
• Up to 2x I2S
• Up to 2x PDM
• Up to 2x SPDIF TX
• Connectivity:
• 2 × USB 2.0 Host Port (HighSpeed)・
• 1 x USB 3.0 Host Port (SuperSpeed)・
• 1 x USB 3.0 OTG Port
• 2 x PCIe2.0 1‑lane, one shared with USB3 and SATA, one shared with SATA
• 2 x SATA ports, one shared with USB3 and PCIe2.0, one shared with PCIe2.0
• Up to 10x UART
• Up to 5x SPI
• Up to 3x CAN
• Up to 7x I2C
• Up to 15x PWM
• Power Input:
• 5V DC, Max 5.2V
• Connector:
• Connector Type: SODIMM Golden Finger Edge Connector, 260pins
• Software:
• Debian/Ubuntu Linux support
• Android 11/12 support

Package Includes:

• 1 x RADXA NX5 - RM121-D8E64
