A brilliant accessory for your Rock Boards
High brightness and resolution combined with gravity sensor and the new 10 point capacitive touch make RADXA´s 10 inch display the best choice for your Rock boards.
Technical specifications:
- 10.1 inch TFT-LCD IPS display
- Resolution: 1200x1920 pixel FHD
- Brightness: 300cd/m2
- View Angle: Full Viewing Angel
- Touch Panel: 10-point capacitive touch (powered by GT9271)
- Interface: MIPI DSI interface
- Built-in Gravity Sensor for rotation (SC7A20)
- One cable for touch and data
- Operation temperature: -20-60°C
- Storage temperature: -25 ~ 70°C
- Max power consumption < 5W
- Full font touch panel and LCD
- Mounting options on the back for supported Rock boards
- Mounting option for Display in enclosure
- External dimensions: 155x246.16x5.95mm

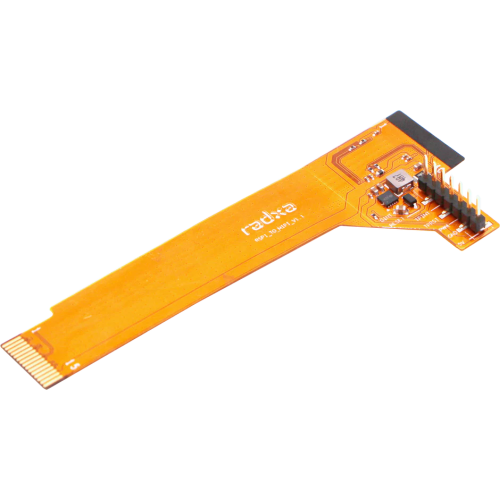

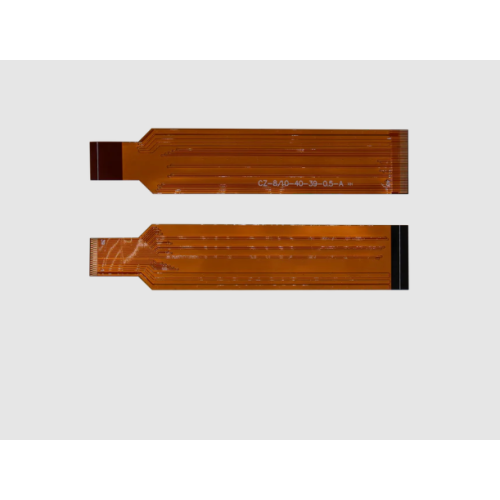

- 39 to 40 pin FPC connector cable included
- 15 to 40 pin FPC connector cable included
- OS support: Linux and Android
Hardware support:
- ROCK 3A, 3C
- ROCK 4A / 4B / 4SE / 4A+ / 4B+ / 4C+
- ROCK 5A / 5B
works as well with StarFive VisionFive 2 boards!
Package Includes:

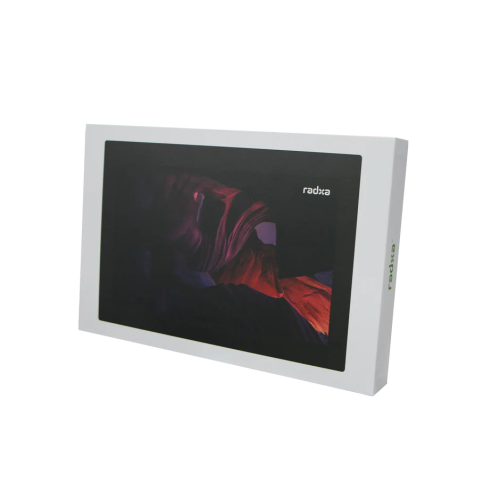

- 1 x RADXA Display 10 FHD
RADXA Display 10 FHD
- Brand: RADXA
- Product Code:NR-Alnt-RADXA-Display-10-FHD
- Reward Points:107
- Availability:In Stock
-
रo 12,633.08
- Ex Tax:रo 10,706.00
- Price in reward points:10706
-
- 2 or more रo 12,531.60
- 3 or more रo 12,430.12
- 8 or more रo 12,329.82
- 15 or more रo 12,228.34
