- QuinLED ESP32 based programmable LED controller with 4 independent output channels
- Compatible to open firmware e.g. ESPhome, ESPpixelstick or custom Arduino code
- Integrates with MQTT or Home Assistant native API (use WLED FW)
- Remote control available via Android or iOS app (WLED FW)
- Can be used for E1.31 with Xlights /Vixen software (use WLED or ESPpixelstick FW)
- High current handling (up to 30A)
- On-board 5x 5A fuse and reverse polarity protection
- Compatible to 5V*, 12V**, 24V*** LED strips, strings or panels
- On-board DS18B20 temperature sensor
- 6 GPIO pins (e.g. Audio, PS Relay, IR control or I2C display)
- Works with most currently available LED strips/strings or panels*

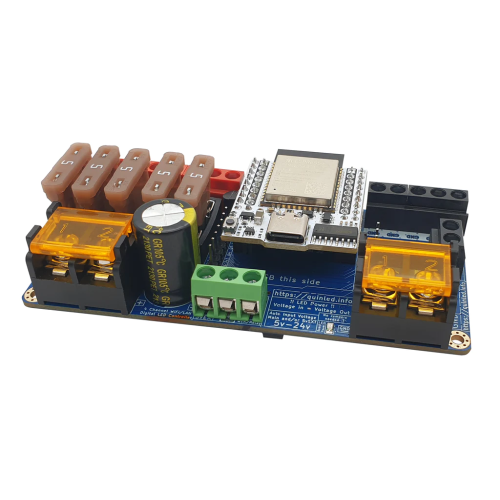

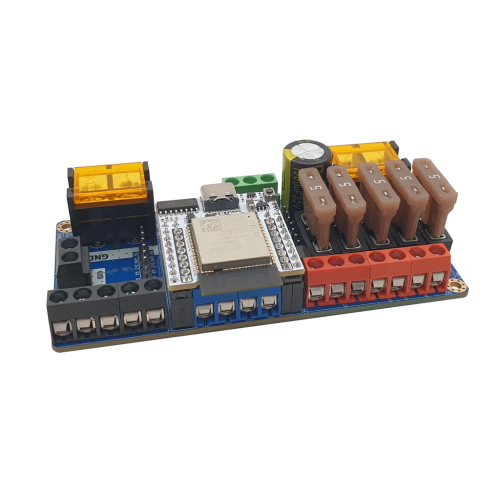

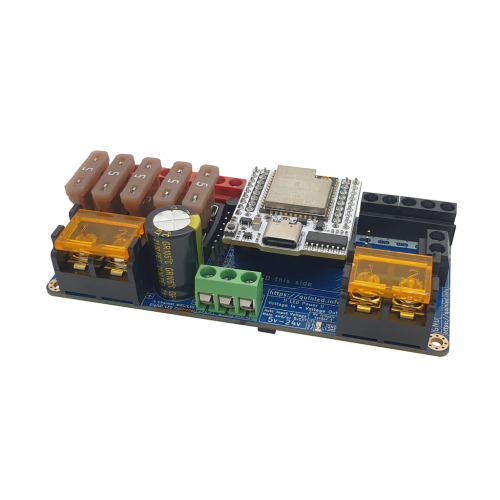

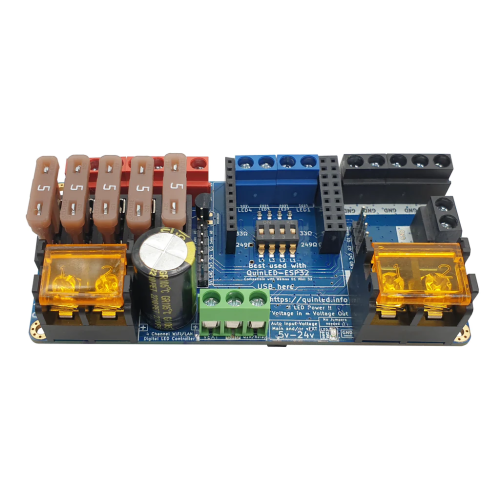

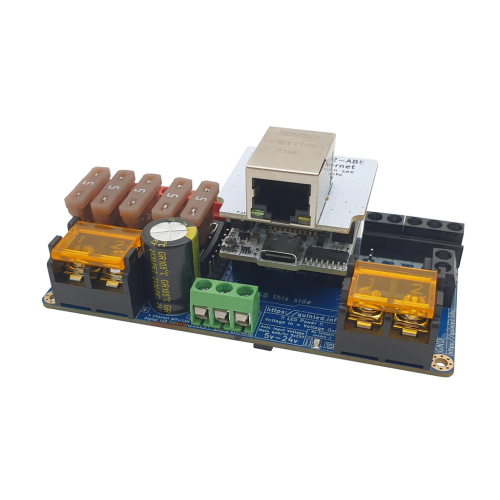

- QuinLED Dig Quad LED controller board

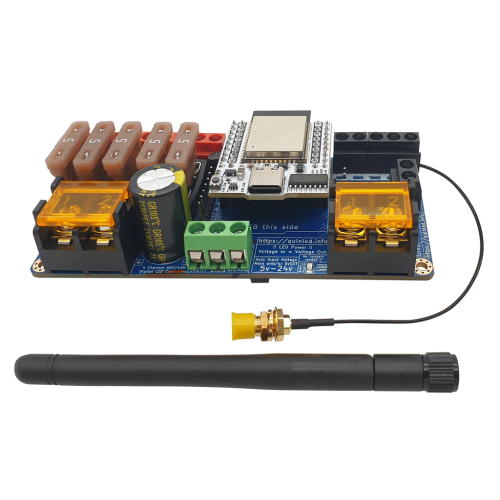

- QuinLED ESP32 WIFI module with USB-C interface (3 different variants available)
- 5x 5A fuses
- NEW - bigger screw terminals for easier cable management
- Pre flashed WLED firmware for instant use
OUTSTANDING!
- With a few simple steps to a working system
- Easy to use and at the same time ready for complex setups
- Extremely detailed library and resources
- Very supportive community and developer
- You have a question to LED and LED related applications - go QuinLED
Youtube introduction and instructions (click on the text):
- QuinLED-Dig-Quad introduction
- QuinLED-Dig-Quad Specification page
- WLED setup tutorial (also phone app)
- QuinLED-Dig-Uno /WLED Home Assistant integration
- Showcase for various LED effects
- Introduction on different types of LED strip, string and panels
More details and resources here:
- In depth information on LEDs
- Wiring diagrams, articles, simply everything related to LEDs
- @ https://quinled.info
QUINLED DIG QUAD V3 DIGITAL LED CONTROLLER
- Brand: RADXA
- Product Code:NR-Alnt-QUINLED-DIG-QUAD-V3
- Reward Points:65
- Availability:In Stock
-
रo 7,677.08
- Ex Tax:रo 6,506.00
- Price in reward points:6506
-
- 3 or more रo 7,615.72
- 5 or more रo 7,554.36
- 13 or more रo 7,493.00
- 25 or more रo 7,430.46
