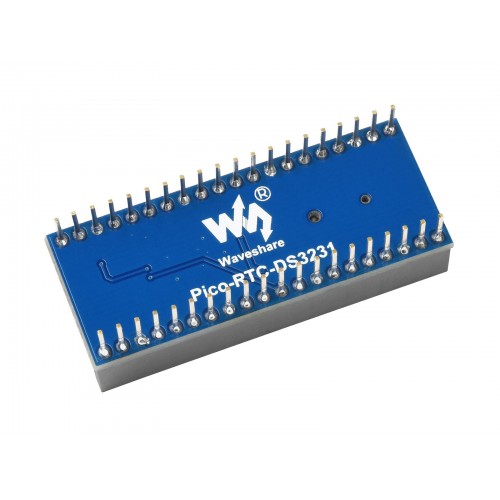

Precision RTC Module For Raspberry Pi Pico, Onboard DS3231 Chip, Incorporates High Precision RTC Chip DS3231

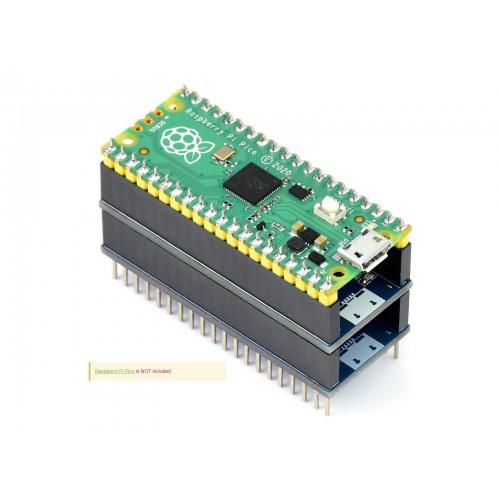

The Pico-RTC-DS3231 is a RTC expansion module specialized for Raspberry Pi Pico. It incorporates high precision RTC chip DS3231 and uses I2C bus for communication. More external sensors are allowed to be connected thanks to the stackable design.

Features:

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series

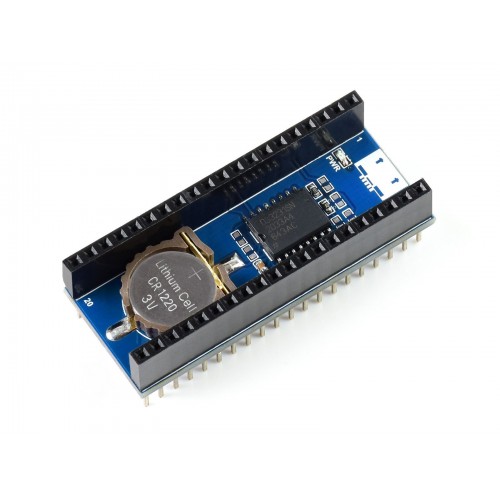

• Onboard high precision RTC chip DS3231, with backup battery holder
• Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100
• Optional format : 24-hour OR 12-hour with an AM/PM indicator
• 2x programable alarm clock
• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications:

• Operating Voltage: 3.3V
• Backup Battery Voltage: 2.3~5.5v
• Operating Temperature: -40°C ~ +85°C
• Power Consumption: 100nA (sustain data and clock information)

Warranty: 12 months

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

• 1 x Precision RTC Module for Raspberry Pi Pico
