Raspberry Pi 4B/3B+ generally uses USB type-C interface for power supply. Although they both have one ethernet interface for internetwork, it can not realize the power supply function. Now, with this PoE Hat, things will be different. I'm afraid the USB type-C cable will not be available anymore.
This PoE Hat for Raspberry Pi supports active PoE which includes IEEE 802.3af and 802.3at PoE standard protocol. As a matter of fact, there is a "handshake" between PSE(Power Source Equipment) and PD(Powered Devices) and the PD will not apply the power supply if the supplied voltage is not matched. It is quite safe for your Raspberry Pi.
Specifications:
- Input: IEEE 802.3af Compliant PoE
- Output: 5V +-5% up to 2.5A
- Protection Circuitry: Transient Overvoltage, Under voltage Lockout, Thermal Shutdown, Foldback Current Limiting
- Active airflow and adequate cooling required for stable continuous operation at high load.
- Weight: 30g
Package Includes:

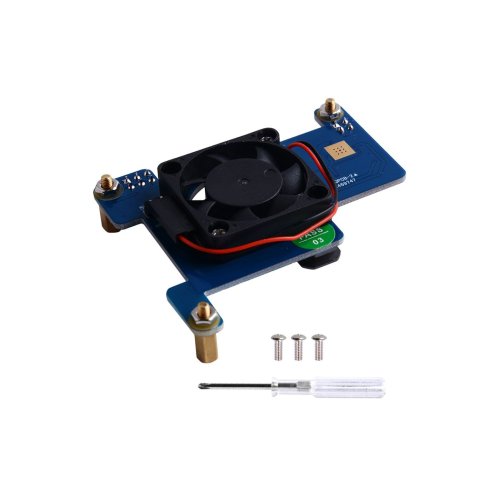

- 1 x Power-Over-Ethernet(PoE) Hat with 3007 Cooling Fan
- 3 x M2.5x9+6 Copper Stick
- 3 x M2.5 Screws
- 3 x M2.5 Nuts
- 1 x Aluminum Heat Sink
- 1 x Screw Driver

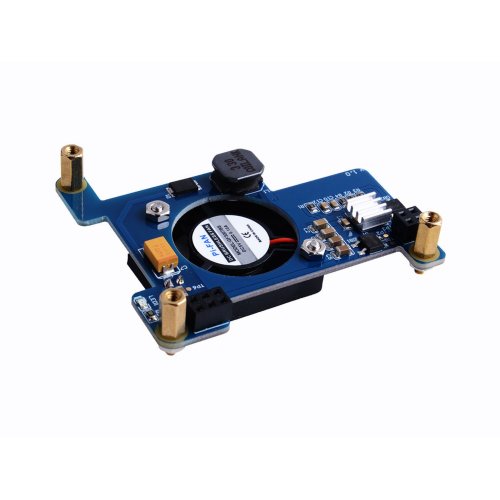

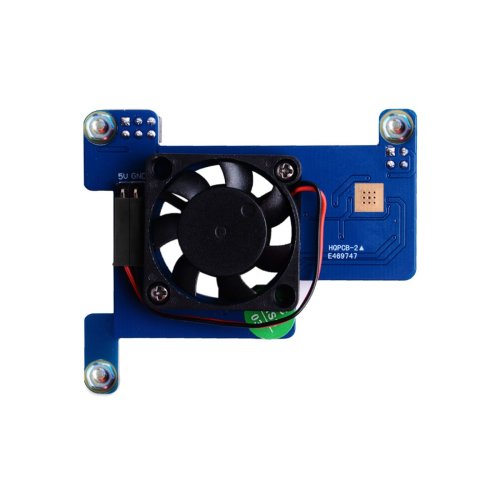

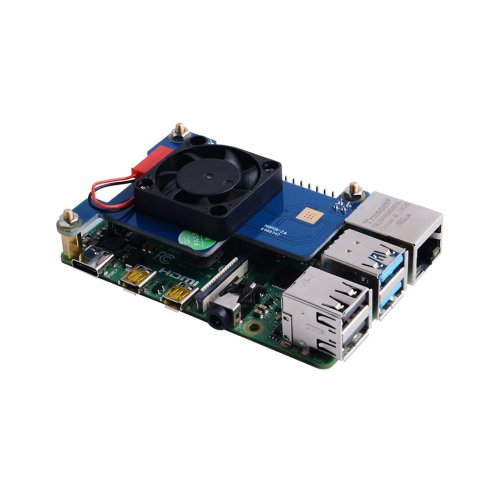

Power-Over-Ethernet (PoE) HAT for Raspberry Pi 4B/3B+
- Brand: Seeed Studio
- Product Code:Seeed-PoE-Raspberry-pi
- Reward Points:27
- Availability:Out Of Stock
-
रo 3,145.88
- Ex Tax:रo 2,666.00
- Price in reward points:2666
-
- 80 or more रo 2,626.68
