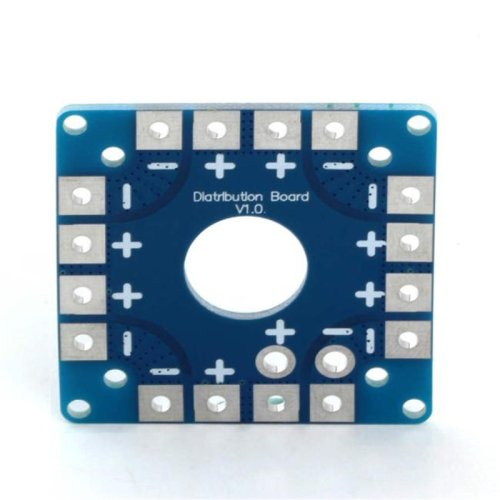

Power Distribution Board- 45mm x 35mm
These lightweight distribution boards make powering multi-rotor aircraft easy. Simply solder a battery connection onto the two central terminals, and you've got eight pairs of connections to use - perfect for quadcopters, hexacopters and even octocopters.
These boards are great for smaller multirotor builds. They're compact and lightweight, and offer large solder pads - making them easy to work with.
These boards can handle some serious current - up to 20A per output for a quadcopter build, or drop that down to 10A each for an octocopter.
Material: glass fiber
Compatible with MK KK flight control installment pitch of holes
Compatible with MK KK flight control system
Can connect 1-8 ESC
Hole Spacing: 45mm Square and 35mm Square (Compatible with KK 45mm spacing)
Package Include:
1 x Multirotor ESC Power Distribution Battery Board For Quadcopter Multi-Axis Model
Power Distribution Board- 45mm x 35mm
- Product Code:PRC-Power-Distribution-Board-20A
- Reward Points:1
- Availability:Out Of Stock
-
रo 112.10
- Ex Tax:रo 95.00
- Price in reward points:95
