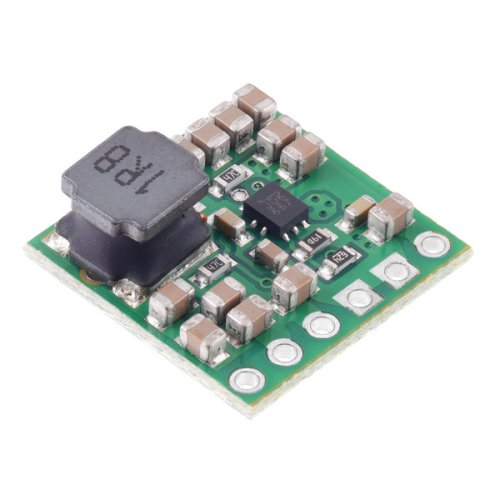

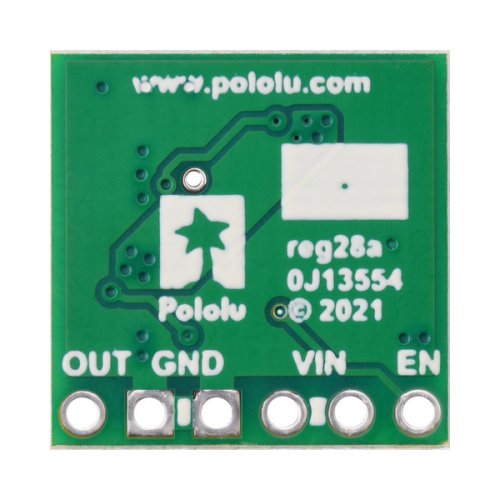

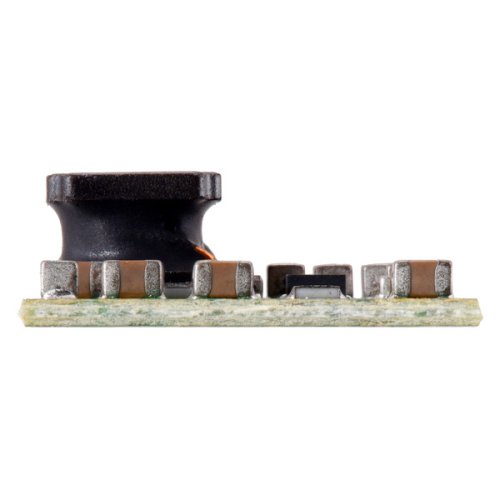

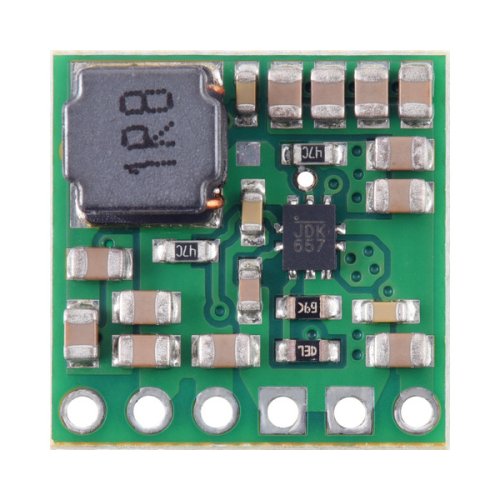

The U3V40Fx family of boost (step-up) voltage regulators are high-efficiency synchronous switching regulators that generate higher output voltages from input voltages as low as 1.3 V. (Note: minimum start-up voltage is 2.7 V; see the connections section for details.) The regulators actively limit the instantaneous input currents to 9.5 A, and the input current can typically be as high as 4.5 A for several seconds before the thermal protection activates. Input currents of around 3.5 A can typically be maintained for many minutes without triggering thermal shutdown, though the actual performance depends on the input and output voltages as well as external factors such as ambient temperature and airflow. For boost regulators, the output current equals the input current times the efficiency divided by the boost ratio of VOUT to VIN, so the more you are boosting, the lower the maximum output current will be (see the maximum continuous output current section below for performance graphs).

The U3V40x family includes five versions with fixed output voltages ranging from 5 V to 12 V.

• 4012 - U3V40F5: Fixed 5V output
• 4013 - U3V40F6: Fixed 6V output
• 4014 - U3V40F7: Fixed 7.5V output
• 4015 - U3V40F9: Fixed 9V output
• 4016 - U3V40F12: Fixed 12V output

Documents:

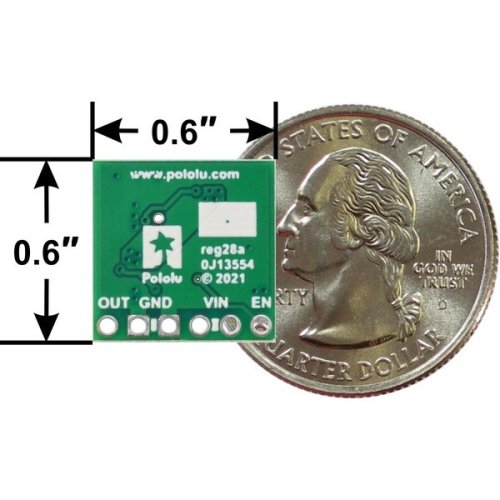

• Dimensions
• 3D Model
• Drill guide

Package Includes:

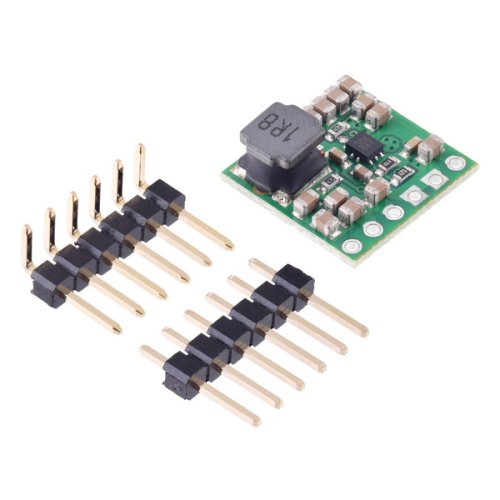

• 1 x Pololu 4012 / 4013 / 4014 / 4015 / 4016 Step-Up Voltage Regulator
