Most motor controllers encounter scenarios (typically when a motor is slowing down) where energy from a motor is returned to the power supply. That power supply is commonly a battery that can tolerate the current fed into it, and the reverse current can be a welcome “regenerative braking” feature that extends the total life of the battery. For applications that do not involve batteries, however, that reverse current can be a problem when the power supply does not deal with the current well. In some cases, the voltage can build up to a high value that the power supply can tolerate but which might be damaging to the motor controller or other electronics supplied by the power rail. In other scenarios, power supplies have “over-voltage protection” features that detect the output voltage going up and shut down the power supply.

Pololu’s shunt regulators are designed for such scenarios, with fixed values available with ±3% accuracy for some common voltages, and adjustable versions available to accommodate any voltage from approximately 5V to 35V. To use the shunt regulator, install it across (in parallel with) your power supply. Under normal conditions, the supply voltage should be below the set point of the shunt regulator, and the regulator should only draw its quiescent current of less than 0.5 mA. However, any voltage spikes above the set point will cause the shunt regulator to draw substantially more current, dissipating energy and limiting the extent of the voltage change.

Specifications:

Minimum output voltage: 4 V
Maximum output voltage: 18 V
Shunt resistance: 1.50 Ohm
Power: 15 W
Maximum quiescent current: 0.5 mA

Documents:

Package Includes:

1 x Pololu 3778 Shunt Regulator: Fine-Adjust LV, 1.50Ω, 15W

Electrical Specifications
Output Voltage	4 V - 18V
Output Power	15 W
Resistance	Shunt Resistance: 1.50 Ohm
Additional Information
Warranty

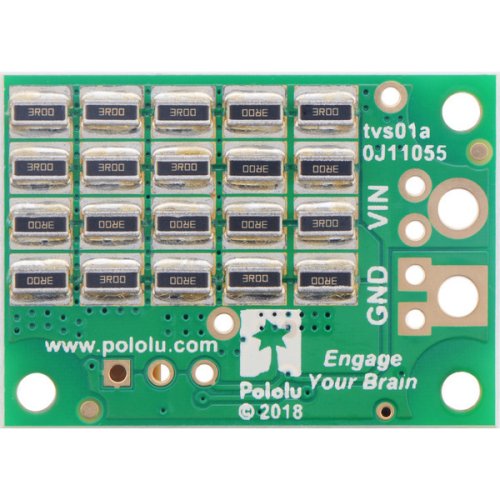

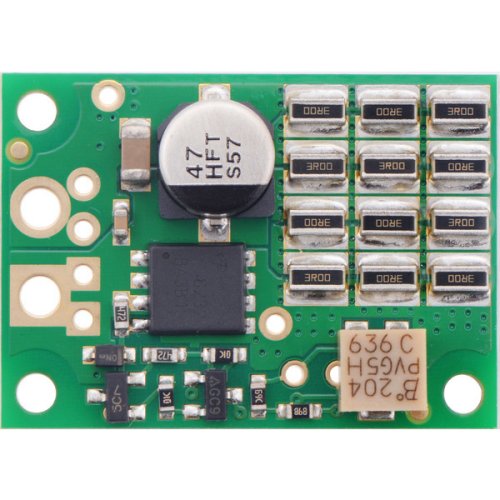

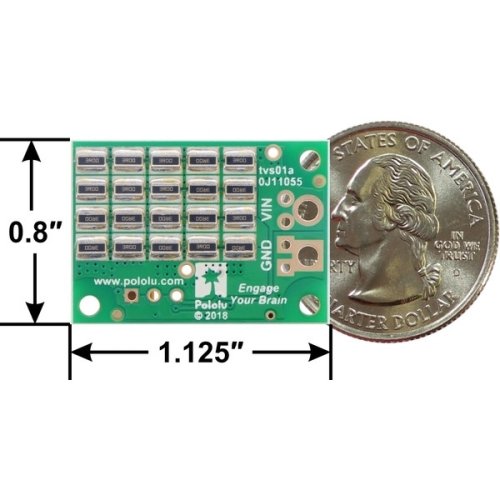

Pololu 3778 Shunt Regulator: Fine-Adjust LV, 1.50Ω, 15W

Brand: Pololu
Product Code:Pololu-Shunt-Regulator-LV
Reward Points:17
Availability:In Stock

रo 2,027.24
Ex Tax:रo 1,718.00
Price in reward points:1718
5 or more रo 1,976.50
8 or more रo 1,961.16
15 or more रo 1,944.64
40 or more रo 1,929.30
85 or more रo 1,912.78

Qty

0 reviews / Write a review
