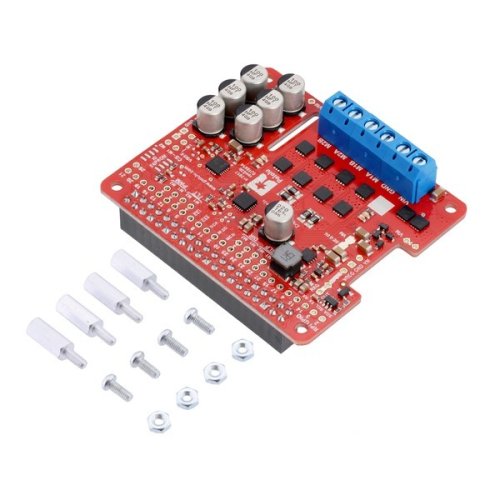

These G2 dual high-power motor drivers are add-on boards for the Raspberry Pi, featuring pairs of discrete MOSFET H-bridges designed to drive two large brushed DC motors. They are designed to mount on and plug into compatible Raspberry Pi boards (Model B+ or newer), including the Pi 3 Model B and Model A+.

Features:

PWM operation up to 100 kHz
Motor indicator LEDs show what the outputs are doing even when no motor is connected
Integrated 5 V, 2.5 A switching step-down voltage regulator powers the Raspberry Pi base for single-supply operation
Python library makes it easy to get started using this board as a motor driver expansion board
GPIO pin mappings can be customized if the default mappings are not convenient
Current sensing and limiting pins are exposed for advanced use
Reverse-voltage protection
Under voltage shutdown

Specifications:

Motor channels: 2
Minimum operating voltage: 6.5 V
Maximum operating voltage: 36 V
Continuous output current per channel: 14 A
Maximum PWM frequency: 100 kHz
Reverse voltage protection?: Y

Documents:

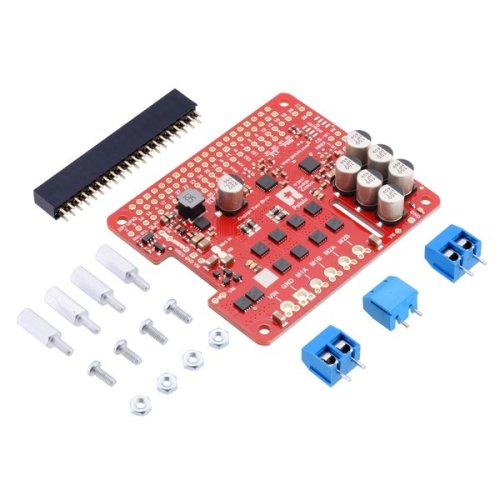

Package Includes:

1 x Pololu 3752 / 3753 Dual G2 High-Power Motor Driver 24v14 for Raspberry Pi
1 x 2×20-pin 0.1″ female header (only for Kit)
3 x 2-pin 5 mm terminal blocks (only for Kit)
4 x M2.5 standoffs (11 mm length), screws, and nuts

Electrical Specifications
Output Current	14 A
Minimum Operating Voltage	6.5 V
Maximum Operating Voltage	36V
Additional Information
Warranty

Pololu 3752 / 3753 Dual G2 High-Power Motor Driver 24v14 for Raspberry Pi

Brand: Pololu
Product Code:Pololu-3752-53-Drvier-24v14
Reward Points:128
Availability:In Stock

रo 15,106.36
Ex Tax:रo 12,802.00
Price in reward points:12802
2 or more रo 14,986.00
3 or more रo 14,865.64
5 or more रo 14,744.10
10 or more रo 14,623.74

Available Options

Version

5) Kit

6) Assembled (+रo 630.12)
