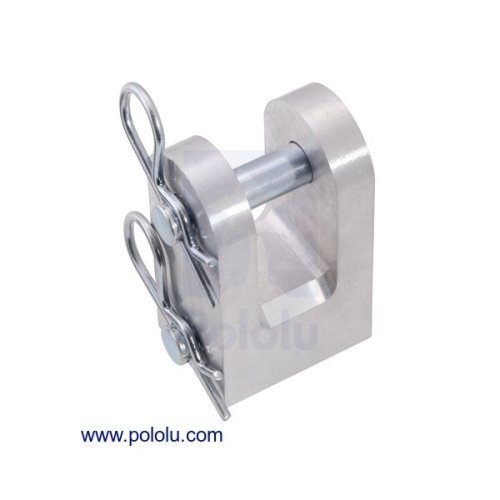

This Pololu 3638 Mounting Clevis for Glideforce Industrial-Duty Linear Actuators - Aluminum adapter was designed specifically for the Glideforce Industrial-Duty (ID) linear actuators and can be used to turn either end into a clevis-style bracket. It is machined out of a single piece of aluminum and has been tested to 1700 kgf [3800 lbs or 17,000 N] of static load, which is well above the highest static loads the ID actuators are rated for. The mounting pin has a 0.498″ (12.6 mm) diameter. This bracket is sold individually, and two brackets are required for each linear actuator.

This adapter works on either end of the Glideforce industrial-duty (ID) linear actuators.

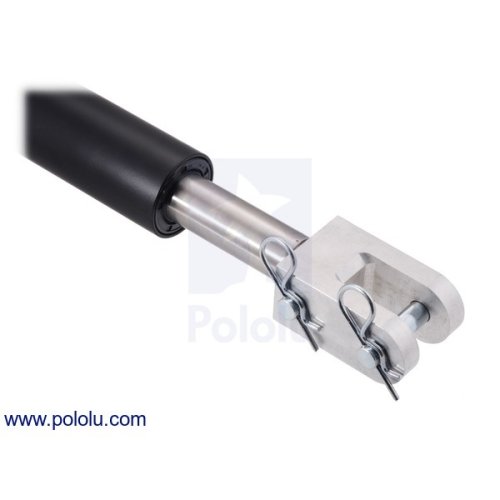

A sleeve piece is included (visible set in the hole in the right picture above) to provide a better fit when using this on the back of the linear actuator

Documents:

Clevis bracket datasheet

Package Includes:

1 x Pololu 3638 Mounting Clevis for Glideforce Industrial-Duty Linear Actuators - Aluminum

Pololu 3638 Mounting Clevis for Glideforce Industrial-Duty Linear Actuators - Aluminum

Brand: Pololu
Product Code:Pololu-3638-Clevis-ID
Reward Points:73
Availability:In Stock

रo 8,618.72
Ex Tax:रo 7,304.00
Price in reward points:7304
2 or more रo 8,549.10
4 or more रo 8,480.66
10 or more रo 8,411.04
20 or more रo 8,342.60

Qty

0 reviews / Write a review
