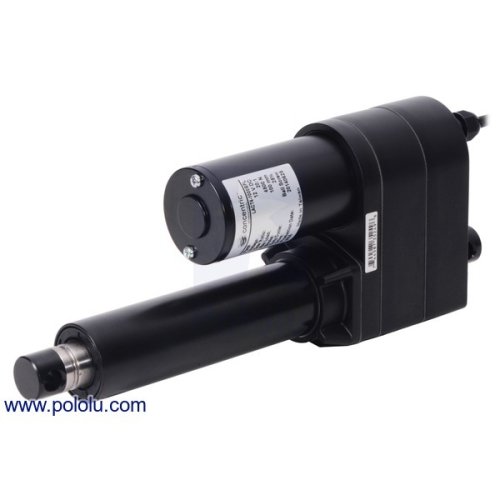

The Industrial-Duty (ID) series of Glideforce linear actuators by Concentric International (formerly Iowa Export-Import) are powerful 12V DC gearmotors that use an acme screw drive or ball screw drive to move a shaft back and forth along its length. The shaft will hold its position even when unpowered. The versions with acme screw drives (part number LACTx-500Ax) can move loads up to 250 kgf [550 lbs or 2500 N] and withstand static loads up to 450 kgf [1000 lbs or 4500 N], while versions with more efficient ball screw drives (part number LACTx-1000Bx) can move loads up to 450 kgf [1000 lbs or 4500 N] and withstand static loads up to 1360 kgf [3000 lbs or 13,600 N].
Two limit switches safely stop the motor at either end of its range, while integrated diodes allow it to reverse direction after reaching a limit point if the supplied voltage is reversed, and a built-in overload clutch protects the actuator from excessive dynamic loads. The actuators have an all-steel frame and extension tube, and the entire case is sealed to protect against dust and water (rated IP65).

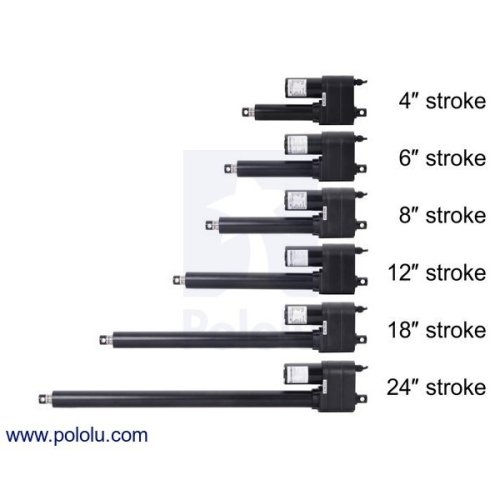

These actuators are available in a variety of stroke lengths, from 4″ to 24″, and with optional potentiometers that are linked to the shaft position
|
Actuator
Type
|
Max
Dynamic
Load
|
No-Load
Speed
@ 12 V
|
Max-Load
Speed
@ 12 V
|
Current
Draw
@ 12 V
|
Nominal
Stroke
Length
|
Without
Feedback
|
|
Industrial-Duty
(ID) with ball
screw drive
|
450 kgf
[1000 lbs]
|
1.7 cm/s
[0.66″/s]
|
1.4 cm/s
[0.56″/s]
|
2.4 A –
13.2 A
|
4″ | LACT4-1000BL |
| 6″ | LACT6-1000BL | |||||
| 8″ | LACT8-1000BL | |||||
| 12″ | LACT12-1000BL | |||||
| 18″ | LACT18-1000BL | |||||
| 24″ | LACT24-1000BL |
Heavy-duty mounting brackets made from machined aluminum or stamped steel are available for attaching the actuators to a structure; two are required for each actuator. A mounting clevis is also available for converting either actuator end into a clevis-style.
ID series features and specifications:
- Nominal operating voltage: 12 V
- Speed at 12 V, no load: 0.66 in/s [16.8 mm/s]
- Speed at 12 V, max load: 0.56 in/s [14.3 mm/s]
- Standard preset limit switches at both ends of stroke
- Overload clutch
-
All steel frame and extension tube
- Aluminum gearbox housing
- Ball screw version has stainless steel extension tube
- All metal gears
- Noise level: ≤ 70 dB
- Mounting hole diameter: 1/2″ [13 mm]
- Working temperature: -13°F [-25°C] to 149°F [65°C]
- IP rating: IP65 (total dust protection, water resistant)
LACT4-1000BL:
- Nominal stroke length: 4″ [10.2 cm]
- Actual stroke length: 2.80″ [7.1 cm]
- Retracted length: 13.86″ [35.2 cm] (from mounting hole to mounting hole)
- Extended length: 16.65″ [42.3 cm] (from mounting hole to mounting hole)
- Weight: 9 lb [4 kg]
- Gear ratio: 20:1 (standard)
- Efficient ball screw drive
- Rated dynamic load capacity: 1000 lbs [450 kgf or 4500 N]
- Maximum static load: 3000 lbs [1360 kgf or 13,600 N]
- This version does not have a feedback potentiometer
LACT6-1000BL:
- Nominal stroke length: 6″ [15.2 cm]
- Actual stroke length: 4.80″ [12.2 cm]
- Retracted length: 15.87″ [40.3 cm] (from mounting hole to mounting hole)
- Extended length: 20.67″ [52.5 cm] (from mounting hole to mounting hole)
- Weight: 11 lb [5 kg]
- Gear ratio: 20:1 (standard)
- Efficient ball screw drive
- Rated dynamic load capacity: 1000 lbs [450 kgf or 4500 N]
- Maximum static load: 3000 lbs [1360 kgf or 13,600 N]
- This version does not have a feedback potentiometer
LACT8-1000BL:
- Nominal stroke length: 8″ [20.3 cm]
- Actual stroke length: 6.81″ [17.3 cm]
- Retracted length: 17.87″ [45.4 cm] (from mounting hole to mounting hole)
- Extended length: 24.69″ [62.7 cm] (from mounting hole to mounting hole)
- Weight: 11 lb [5 kg]
- Gear ratio: 20:1 (standard)
- Efficient ball screw drive
- Rated dynamic load capacity: 1000 lbs [450 kgf or 4500 N]
- Maximum static load: 3000 lbs [1360 kgf or 13,600 N]
- This version does not have a feedback potentiometer
LACT12-1000BL:
- Nominal stroke length: 12″ [30.5 cm]
- Actual stroke length: 10.83″ [27.5 cm]
- Retracted length: 21.89″ [55.6 cm] (from mounting hole to mounting hole)
- Extended length: 32.72″ [83.1 cm] (from mounting hole to mounting hole)
- Weight: 12 lb [5.5 kg]
- Gear ratio: 20:1 (standard)
- Efficient ball screw drive
- Rated dynamic load capacity: 1000 lbs [450 kgf or 4500 N]
- Maximum static load: 3000 lbs [1360 kgf or 13,600 N]
- This version does not have a feedback potentiometer
LACT18-1000BL:
- Nominal stroke length: 18″ [45.7 cm]
- Actual stroke length: 17.56″ [44.6 cm]
- Retracted length: 30.83″ [78.3 cm] (from mounting hole to mounting hole)
- Extended length: 48.39″ [122.9 cm] (from mounting hole to mounting hole)
- Weight: 14 lb [6.5 kg]
- Gear ratio: 20:1 (standard)
- Efficient ball screw drive
- Rated dynamic load capacity: 1000 lbs [450 kgf or 4500 N]
- Maximum static load: 3000 lbs [1360 kgf or 13,600 N]
- This version does not have a feedback potentiometer
LACT24-1000BL:
- Nominal stroke length: 24″ [61.0 cm]
- Actual stroke length: 23.58″ [59.9 cm]
- Retracted length: 36.85″ [93.6 cm] (from mounting hole to mounting hole)
- Extended length: 60.43″ [153.5 cm] (from mounting hole to mounting hole)
- Weight: 15 lb [7 kg]
- Gear ratio: 20:1 (standard)
- Efficient ball screw drive
- Rated dynamic load capacity: 1000 lbs [450 kgf or 4500 N]
- Maximum static load: 3000 lbs [1360 kgf or 13,600 N]
- This version does not have a feedback potentiometer
Documents:
Package Includes:
- 1 x Glideforce LACT4/6/8/12/18/24-1000BL Industrial-Duty Linear Actuator with Ball Screw Drive - 12V
