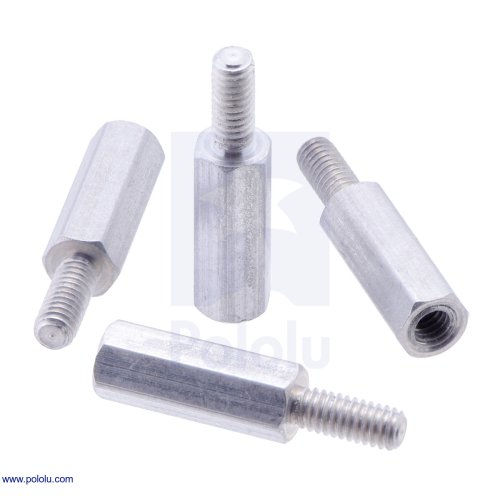

These hexagonal male-female aluminum standoffs are intended specifically for use with the Raspberry Pi. They keep parts spaced 11 mm apart, which is just the right height for mounting expansion boards with standard-size female headers, and they have 6mm-long M2.5 threads that are just the right size for the Raspberry Pi’s mounting holes. These standoffs are sold in packs of 4.

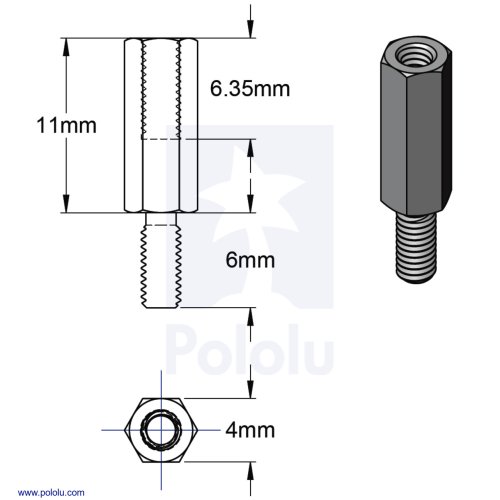

These aluminum hexagonal standoffs are just the right size for mounting expansion PCBs or HATs with standard-size female headers on a Raspberry Pi. The body of each male-female standoff is 11 mm long by 4 mm wide. The male threads extend another 6 mm past the standoff body, and the female threads extend at least 6.35 mm into the body. You can easily screw multiple units together to make longer standoffs. The threads are M2.5 on both ends, since this matches the size of the Raspberry Pi mounting holes. We carry M2.5 nuts and 6 mm M2.5 screws separately.

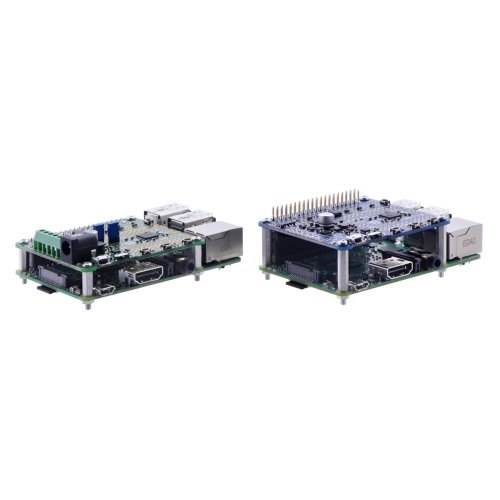

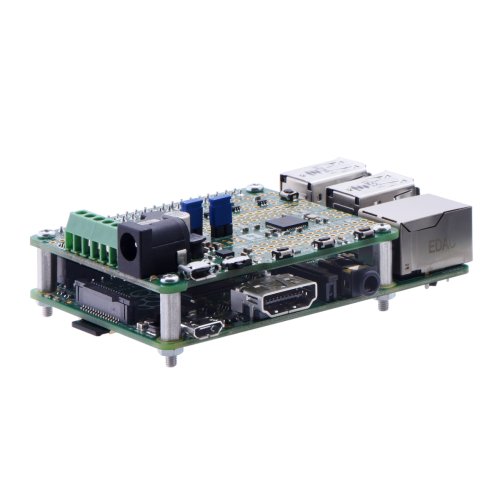

Using 11 mm aluminum standoffs with 6mm-long threads to mount an A-Star 32U4 Robot Controller on a Raspberry Pi 2 Model B.

Note that these standoffs are not recommended for mounting a Raspberry Pi on a Balboa 32U4 robot because the 6mm-long male threads hit the robot chassis; we instead recommend the 11mm standoffs with shorter (4mm) male threads for that.

Package Includes:

• 4 x Pololu 1952 Aluminum Standoff for Raspberry Pi: 11mm Length, 6mm M2.5 Thread, M-F
