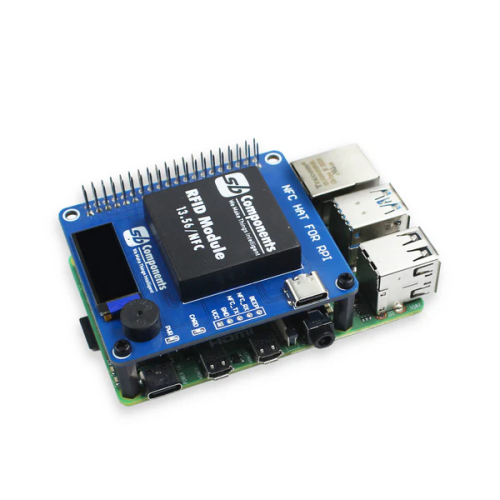

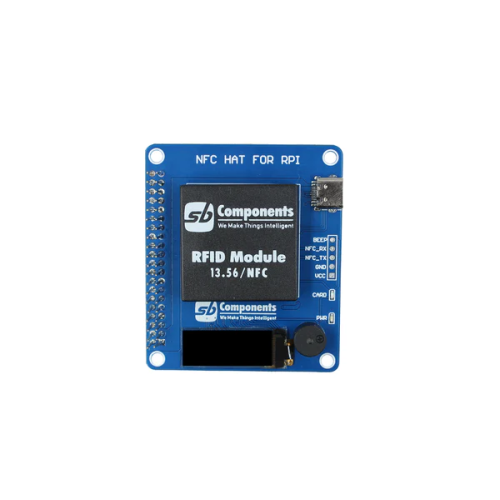

Introducing the PiNFC, the perfect NFC HAT for your Raspberry Pi board. With contactless communication, you may easily extend the capabilities of your devices. It works at a high frequency of 13.56 MHz. This enables both read and write operations, providing a wide reading range and fast interaction times. It has an inbuilt antenna and is compatible with a variety of NFC protocols, making it ideal for secure access, IoT projects, and interactive exhibits.

Features:

• Onboard 13.56MHz NFC read/write Module
• 0.91 inch OLED
• Drag-and-drop programming using mass storage over USB

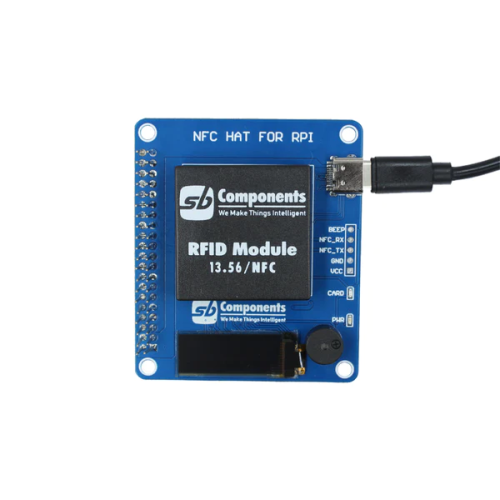

• Type C Power/UART
• Multifunction GPIO breakout supporting general I/O, UART, I2C, SPI, ADC & PWM functions.
• Multi-tune Buzzer to add audio alert into the project
• Status LED for board power, and Tag Scan indication
• Multi-platform support like Python, MicroPython, CircuitPython, and Arduino IDE.

Specifications:

• Operating voltage supply 5V
• Operating Frequency: 13.56MHz
• Operating current: 50mA
• Reading Distance: >50mm(The effective distance is related to the IC card and the use environment)
• Integrated Antenna
• Support Protocols: ISO14443A, ISO14443B, Sony, ISO15693, ISO18092
• Contactless cards: NTAG213, Mifare one S50, Mifare one S70, ultralight, FM11RF08
• Operating Temperature: -15°C~+55°C

Pinout:

Resources:

• Software GitHub - This Repo contains Library and Example codes.
• Hardware GitHub - This Repo contains Schematic, Datasheet, etc.

Package Includes:

• 1 x PiNFC - NFC Hat for Raspberry Pi
