The Humidity and Temperature Sensor is a monolithic CMOS IC integrating humidity and temperature sensor elements, an analog-to-digital converter, signal processing, calibration data, and an I2C Interface. The patented use of industry-standard, low-K polymeric dielectrics for sensing humidity enables the construction of low-power, monolithic CMOS Sensor ICs with low drift and hysteresis, and excellent long term stability.
Features :

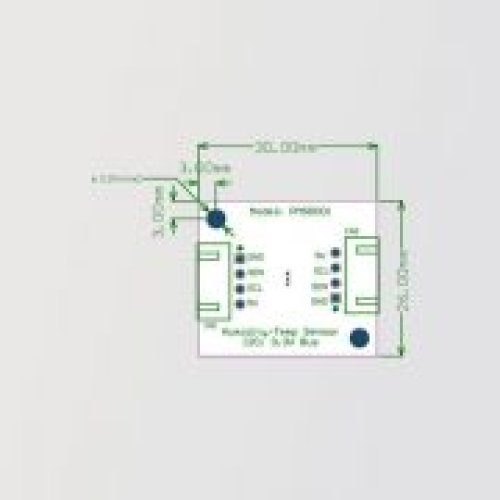

- Measures 30mm by 26mm
- Base on Silicon Labs Si7021 I2C Humidity and Temperature Sensor
- High Accuracy Temperature Sensor ±0.4 °C (max), –10 to 85 °C
- 0 to 100% RH operating range
- Up to –40 to +125 °C operating range
- On board 3.3V regulator
- 2pcs of XH 4pin 2.54 mm pitch connector to allow daisy chain of multiple I2C sensor
Package Includes :
- 1 x Pine64 Humidity Temperature Sensor Module

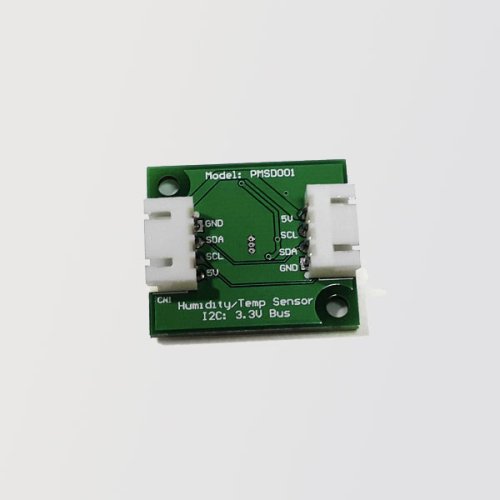

Pine64 Humidity Temperature Sensor Module
- Brand: Pine64
- Product Code:P64-Humidity-Temp-Sensor-Module
- Reward Points:9
- Availability:In Stock
-
रo 1,010.08
- Ex Tax:रo 856.00
- Price in reward points:930
-
- 35 or more रo 1,000.64
- 85 or more रo 992.38
