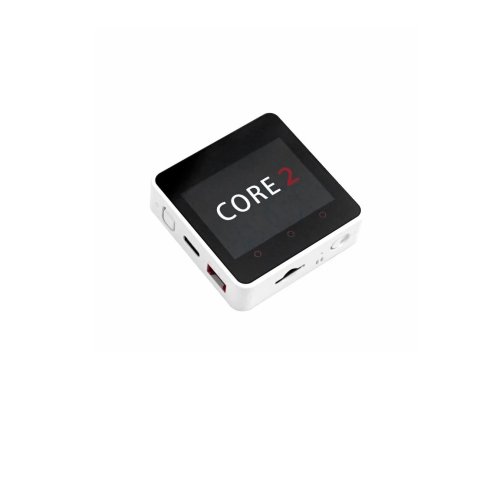

M5Core2 is the second generation core device in the M5Stack development kit series, which further enhances the functions of the original generation of cores.
Features:
- ESP32-based, built-in Bluetooth,WiFi
- 16M Flash，8M PSRAM
- Built-in speaker, power indicator, vibration motor, RTC, I2S amplifier, capacitive touch screen, power button, reset button
- TF card slot (16G Maximum size)
- Built-in lithium battery, equipped with power management chip
- Independent small board built-in 6-axis IMU, PDM microphone
- M-Bus Socket & Pins
- Program Platform: UIFlow, MicroPython, Arduino
Power on/off:
- Power on: click the power button
- Power off: press the power button for 6s
- Restart: Click the RST button at the bottom
Specifications:
| Resources | Parameter |
| ESP32-D0WD-V3 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth |
| Flash | 16MB |
| PSRAM | 8MB |
| Input Voltage | 5V @ 500mA |
| Interface | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| IPS LCD Screen | 2.0"@320*240 ILI9342C |
| Touch Screen | FT6336U |
| Speaker | 1W-0928 |
| LED | Green power indicator light |
| Button | Power button, RST button, Virtual screen button*3 |
| Vibration reminder | Vibration motor |
| MIC | SPM1423 |
| I2S Power Amplifier | NS4168 |
| 6-axis IMU | MPU6886 |
| RTC | BM8563 |
| PMU | AXP192 |
| USB Chip | CP2104 |
| DC-DC Boost | SY7088 |
| TF card slot | 16G Max. |
| Lithium Battery | 390mAh @ 3.7V |
| Antenna | 2.4G 3D antenna |
| Operating temperature | 32°F to 104°F ( 0°C to 40°C ) |
| Gross Weight | 70g |
| Product Size | 54 x 54 x 16mm |
| Package Size | 75 x 60 x 20mm |
| Case Material | Plastic ( PC ) |
Applications:
- Internet of things terminal controller
- Stem education product
- DIY creation
- Smart home equipment
Package Includes:

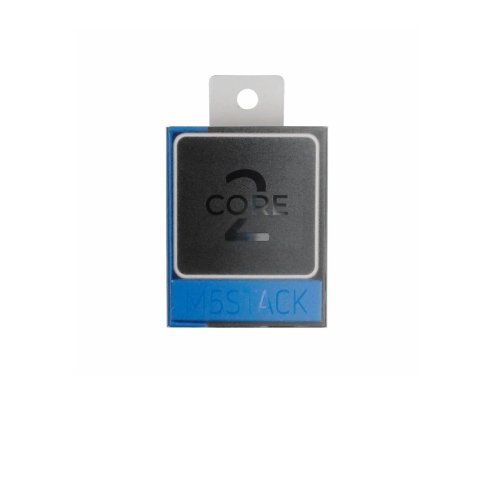

- 1x M5Stack Core2
- 1x Type-C USB(20cm)
M5Stack Core2 ESP32 IoT Development Kit
- Brand: M5Stack
- Product Code:M5S-M5Stack-Core2
- Reward Points:70
- Availability:Order now and get it in 20 days
-
रo 8,236.40
- Ex Tax:रo 6,980.00
- Price in reward points:6980
-
- 2 or more रo 8,165.60
- 4 or more रo 8,100.70
- 11 or more रo 8,035.80
- 21 or more रo 7,970.90
